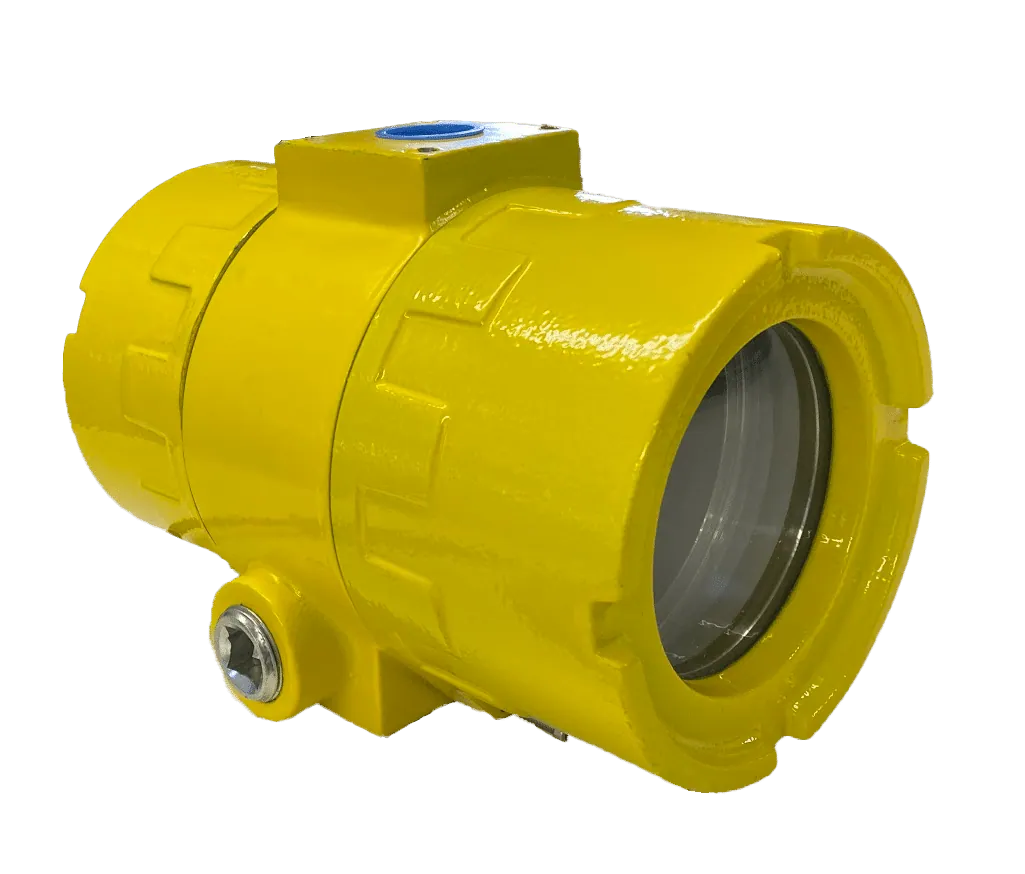

UX5000 ATEX Zone 1 Ultrasonic Clamp-On Flow Meter

Overview

Measures from outside the pipe, so no cutting into pipework in the hazardous area.

• Application and configuration support
• DCSIU with attached mount and pipe mounting bracket
• DCSIU to RMU cable, 10m
• RMU unit with mounting kit
• Red and blue sensor cables, 5m each
• Pt100 temperature sensor, 5m
• Clamp and banding kit, including stainless steel banding, cable ties and quick release clamps
• Guiderail sensor holders, sensors and guide rail ruler
• Heatsink compound, syringe and cap, Super Lube grease and Pt100 stainless steel cable tie
• Documentation envelope containing calibration certificate, Quick Start Manual/Product Manual and Declaration of Conformity

Specifications

Approvals

ATEX, IECEx and Class I Div 1 approvals for liquid flow applications

Clamp-on

Measures flow without cutting into pipework

Fixed system

Designed for longer-term installed hazardous area monitoring

Liquid duties

For acoustically conductive liquids with less than 3% particulates

ATEX, IECEx and Class I Div 1

Fixed liquid flow measurement for suitable hazardous area applications with potentially explosive atmospheres.

Clamp-on sensors

External transducers measure through the pipe wall without wetted parts or pipe cutting.

Transit-time principle

Calculates flow velocity from the difference between upstream and downstream ultrasonic signals.

DCSIU and RMU design

Separate display/control and measurement units support flexible field installation.

Single or dual channel

Configurable for one channel, two channels on two pipes, or two channels on one pipe.

Remote setup

RotoFlow configuration via RS485 Modbus or Bluetooth on PC/tablet, including Aegex 100M tablet setup where required.

System outputs

Active 4-20mA outputs, opto-isolated relay outputs and Modbus RTU support plant integration.

Measurement performance

Accuracy up to 0.5% with process calibration and repeatability of ±0.15%, subject to suitable installation.

Technology selection

Advice on whether the UX5000 is suitable, or if another flow technology should be considered

Documentation support

Help with product information and project requirements for audited hazardous area applications
