Ultrasonic Clamp-On Flow Meters

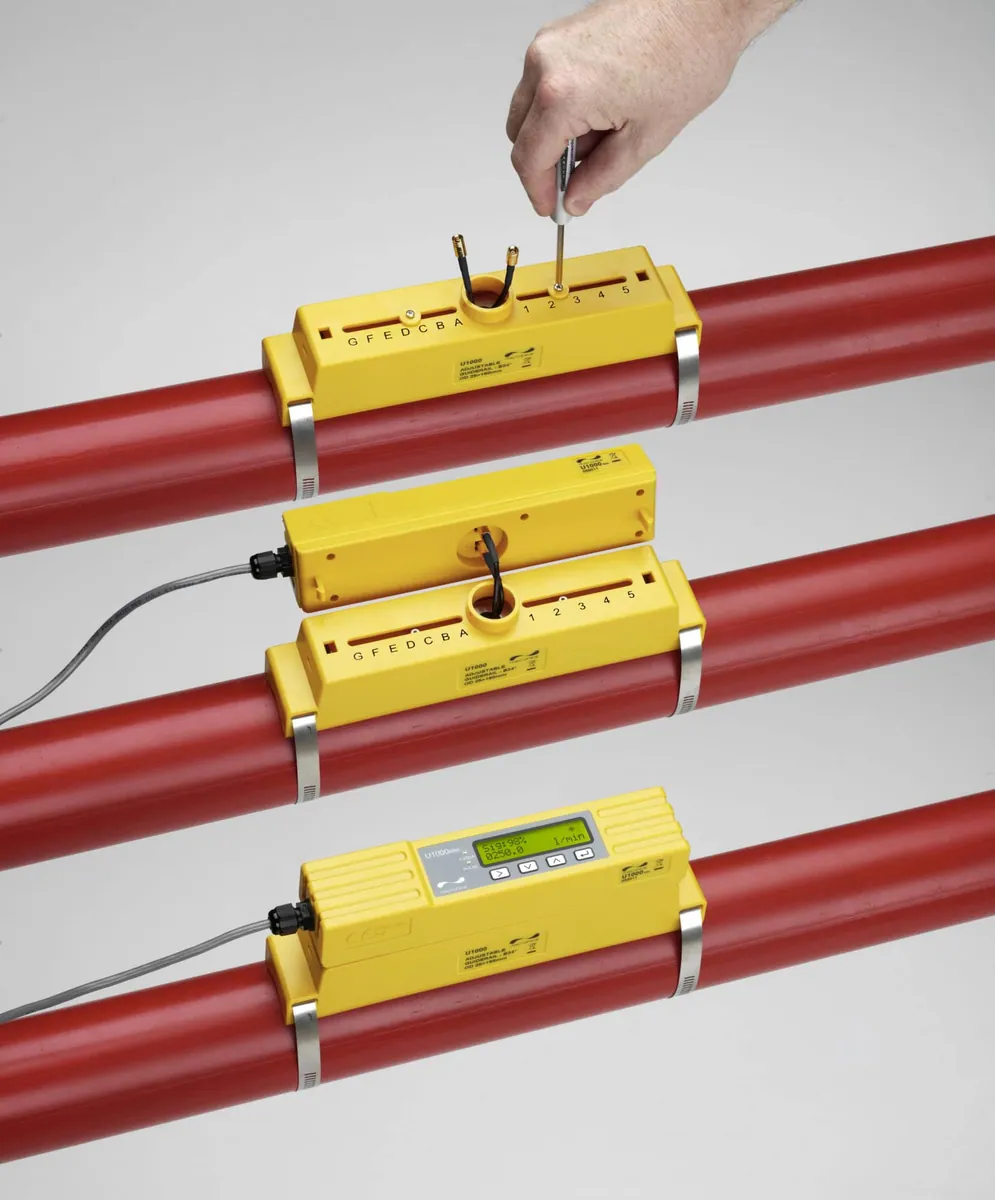

125-180mm U1000MKII-FM Fixed Ultrasonic Clamp-On Flow Meter

Fixed clamp-on ultrasonic flow meter for water and glycol, mounted on the outside of the pipe.

Part no.804-110046xx

6 manuals5 documents2 videos

  • Supplied and supported by GTi in Thailand
  • Calibration certificate on delivery
  • Selection, installation and commissioning help

Overview

Transit-time sensing gives flow rate and total with a pulse output, with no pipe cutting and no pressure loss. The pipe range is shown in the product name.

  • up to 6” pipe size – 125-180mm OD / 105-165mm ID
  • Ultrasonic (time of flight) technology to measure flow rate / total flow from outside the pipe
  • Includes volume pulse output (optional 4-20mA, Modbus OR M-Bus flow proportional outputs can be selected)
  • Easy installation
  • Cost effective alternative to traditional in-line meters
  • Standalone instrument or as part of an integrated management system
  • Backlit LCD

Specifications

Temp range
-0°C to +85°C
Flow range
0.1m/s to 10m/s (0.3ft/s to 32ft/s)
Accuracy
±1% to ±3% (for 0.3m/s to 1ft/s)
Rugged
IP54

Videos

Product walk-throughs, installation and set-up from the manufacturer.

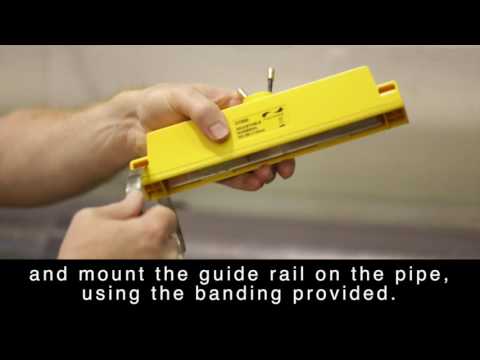

Micronics U1000 U Ultrasonic Clamp On Flow Meter
The New U1000MKII ULTRAFLO Range of Clamp-on Flow & Energy Meters

Documents & Downloads

Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.

Manuals & Guides 6

Certificates & Approvals 5

More Ultrasonic Flow Meters

View all 28

Not Sure Which Instrument Fits?

Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
