125-225mm U1000MKII-WM-FM Wall Mount Ultrasonic Clamp-On Flow Meter

Overview

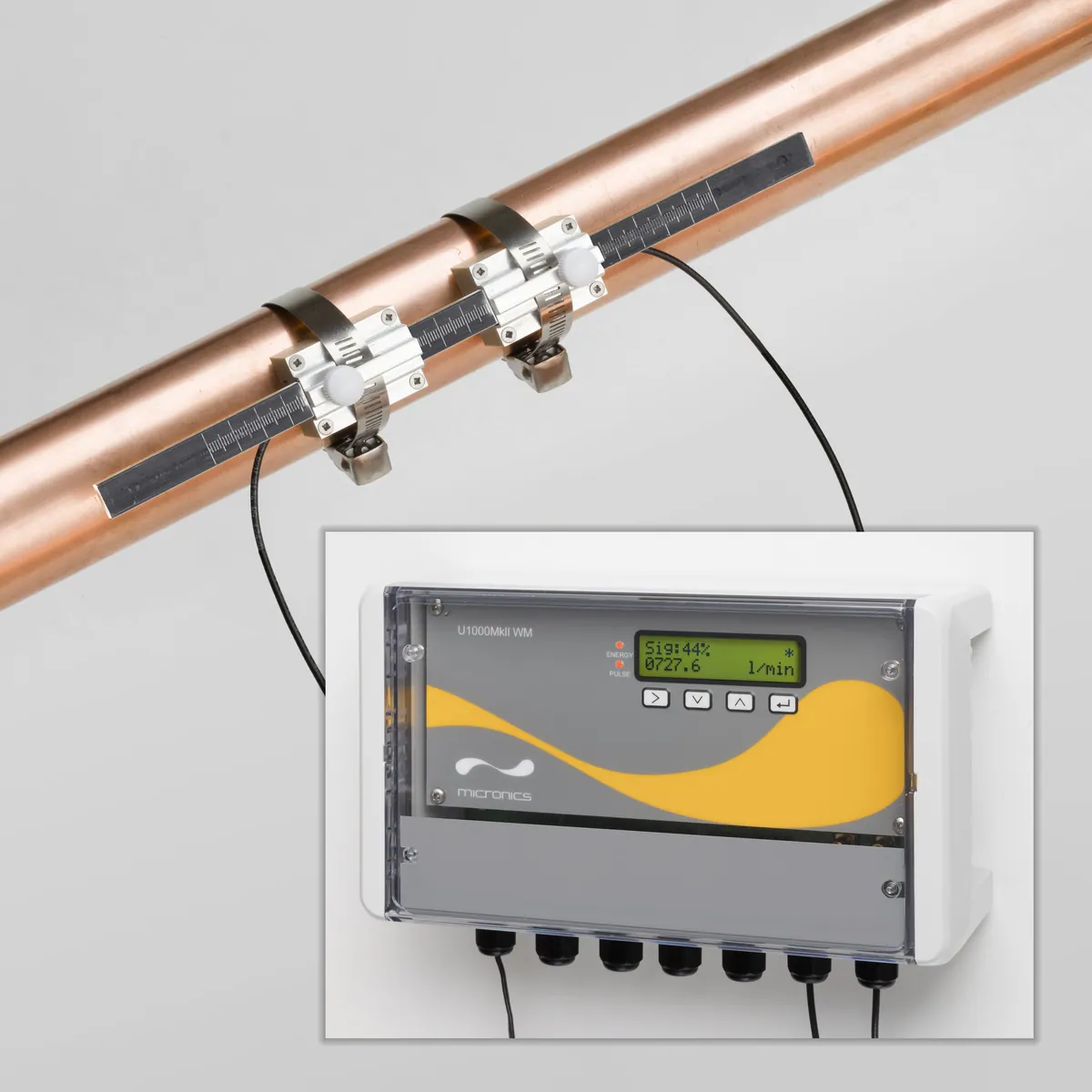

The sensor rail clamps onto the pipe while readings and settings sit on the wall unit, which helps where the pipe is hard to reach.

• Up to 8” pipe size – 125-225mm OD / 105-215mm ID
• Electronic transmitter – LCD with backlight
• Enclosure rating IP 68
• 5 metre transducer cables
• Includes pulse output (optional 4-20mA, Modbus and M-Bus outputs can be selected)

Specifications

Wall Mounted Keypad and Display Dimensions

215mm x 125mm x 90mm

External Power Supply

12V – 24V ±10% AC/DC at 7 watts per unit. Optional plug in 12V power supply

Modbus Communication

Optional Modbus RTU slave, RS485 serial link hardware layer. Energy, power, temperature and flow

Mbus Communication

Optional

Temp range

-0°C to +135°C

Turn Down Ratio

100:1

Accuracy

±1% – 3% of flow reading for velocity rate >0.3m/s (>1 ft/s)
