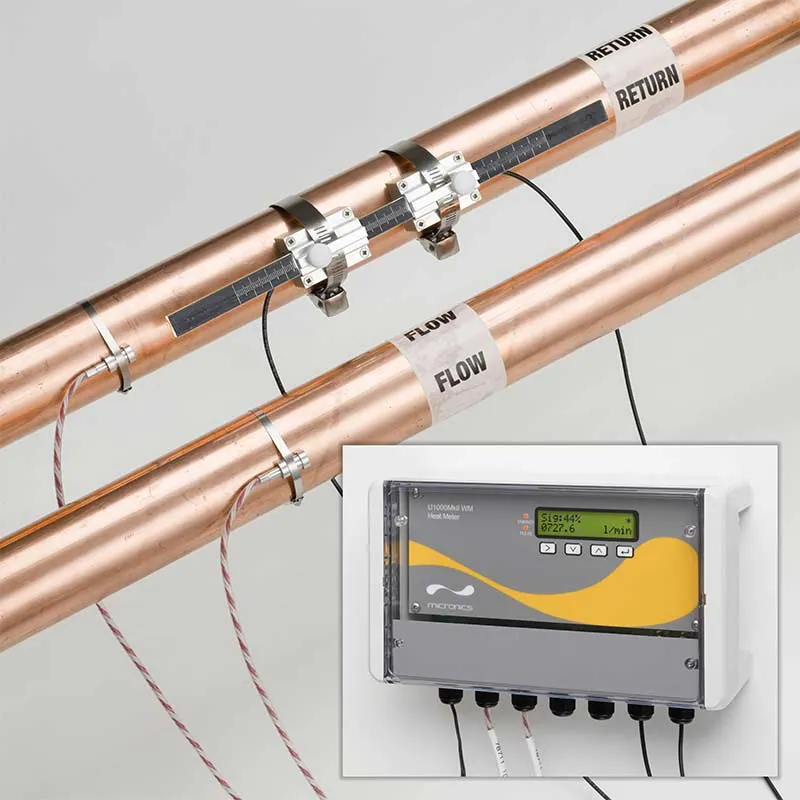

125-225mm U1000MKII-WM-HM Wall Mount Ultrasonic Clamp-On Energy Meter
Clamp-on ultrasonic energy meter for water and glycol circuits with a separate wall-mounted keypad and display.
Part no.904-200048xx
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Supplied with PT100 temperature sensors; heat energy is calculated to EN1434 section 6.
- Up to 8” pipe size – 125-225mm OD / 105-215mm ID
- Electronic external display – LCD with backlight
- Enclosure rating IP 54
- Comes with PT100 temperature sensors
- 5 metre transducer cables
- Heat/Energy calculation is designed to comply with EN1434 section 6
- Includes pulse output (optional 4-20mA, Modbus and M-Bus outputs can be selected)
Specifications
- Wall Mounted Keypad and Display Dimensions
- 215mm x 125mm x 90mm
- External Power Supply
- 12V – 24V ±10% AC/DC at 7 watts per unit. Optional plug in 12V power supply
- Temp range
- -0°C to +135°C
- Turn Down Ratio
- 100:1
- Accuracy
- ±1% – 3% of flow reading for velocity rate >0.3m/s (>1 ft/s)
