50-2000mm UF3300-HM Fixed Ultrasonic Clamp-On Heat Meter

Overview

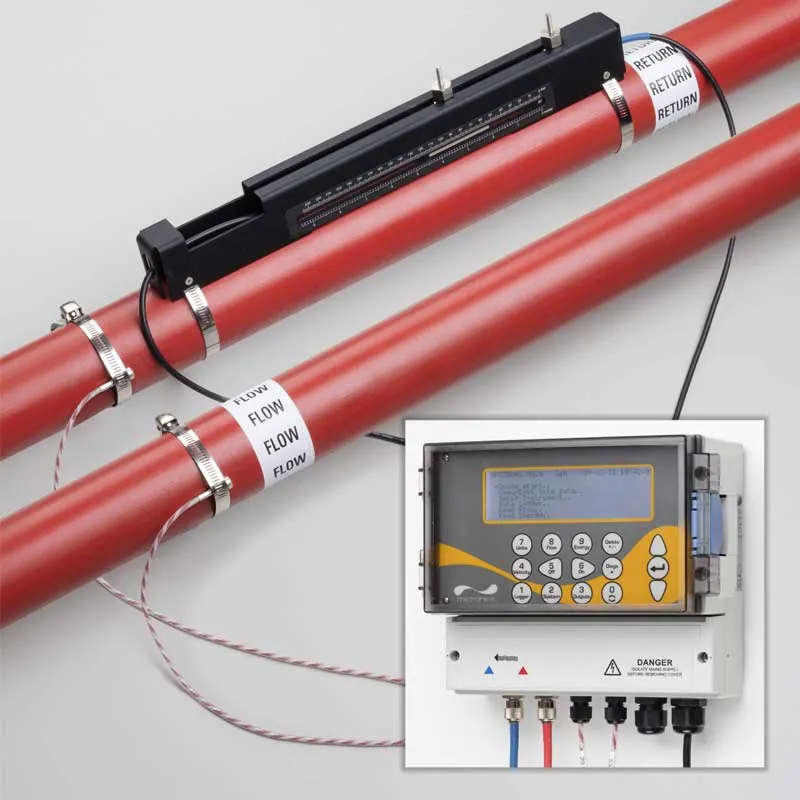

Measures liquid flow and temperature difference from outside the pipe to give heating or cooling energy without a shutdown.

• With ‘B’ type transducers (50-2000mm OD)
• Designed to comply with EN1434 section 6
• Clamp-on PT100 Class B 4 wire, range 0 C – 200 C (32 F – 392 F), resolution 0.1 C (0.18 F). Minimum delta T is 0.3 C.
• New cross correlation flow measurement system
• 64 x 240 pixels display
• Optional 100 million point data logger and RS232/USB outputs
• Flow Range – 0.1m/sec to 20m/sec bi-directional
• Set-up via 15 key control panel
• CE approved

Specifications

Transducer Operating Temp

-20°C to +135°C with High Temp option

Sensor cables, blocks and temp sensors

IP54 with IP68 option

Power

86V to 264V AC. Optional 24V a.c./d.c. 1A max
