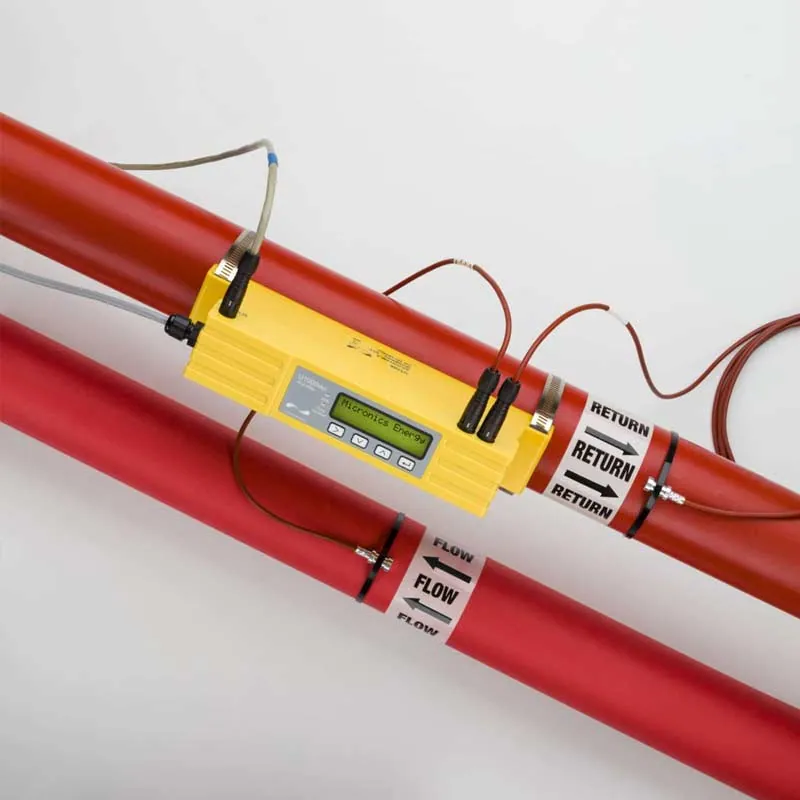

22-115mm U1000MKII-HM Fixed Ultrasonic Clamp-On Energy Meter

Overview

Energy is calculated to EN1434 section 6 and shown on the built-in LCD, a low-cost way to meter heating and cooling without cutting the pipe.

• Up to 4” pipe size – 22-115mm OD / 20-110mm ID
• Comes with PT100 temperature sensors
• Heat/Energy calculation is designed to comply with EN1434 section 6
• View measurements on LCD display (energy rate / totalised energy / installation and service info)
• Easy installation
• Cost effective alternative to traditional in-line meters
• Includes pulse output (optional Modbus OR M-Bus outputs can be selected)
• Standalone instrument or as part of an integrated management system

Specifications

Temp range

-0°C to +85°C

Flow range

0.1m/s to 10m/s (0.3ft/s to 32ft/s)

Accuracy

±1% to ±3% (for 0.3m/s/ 1ft/s)

Temperature resolution

0.1°C
