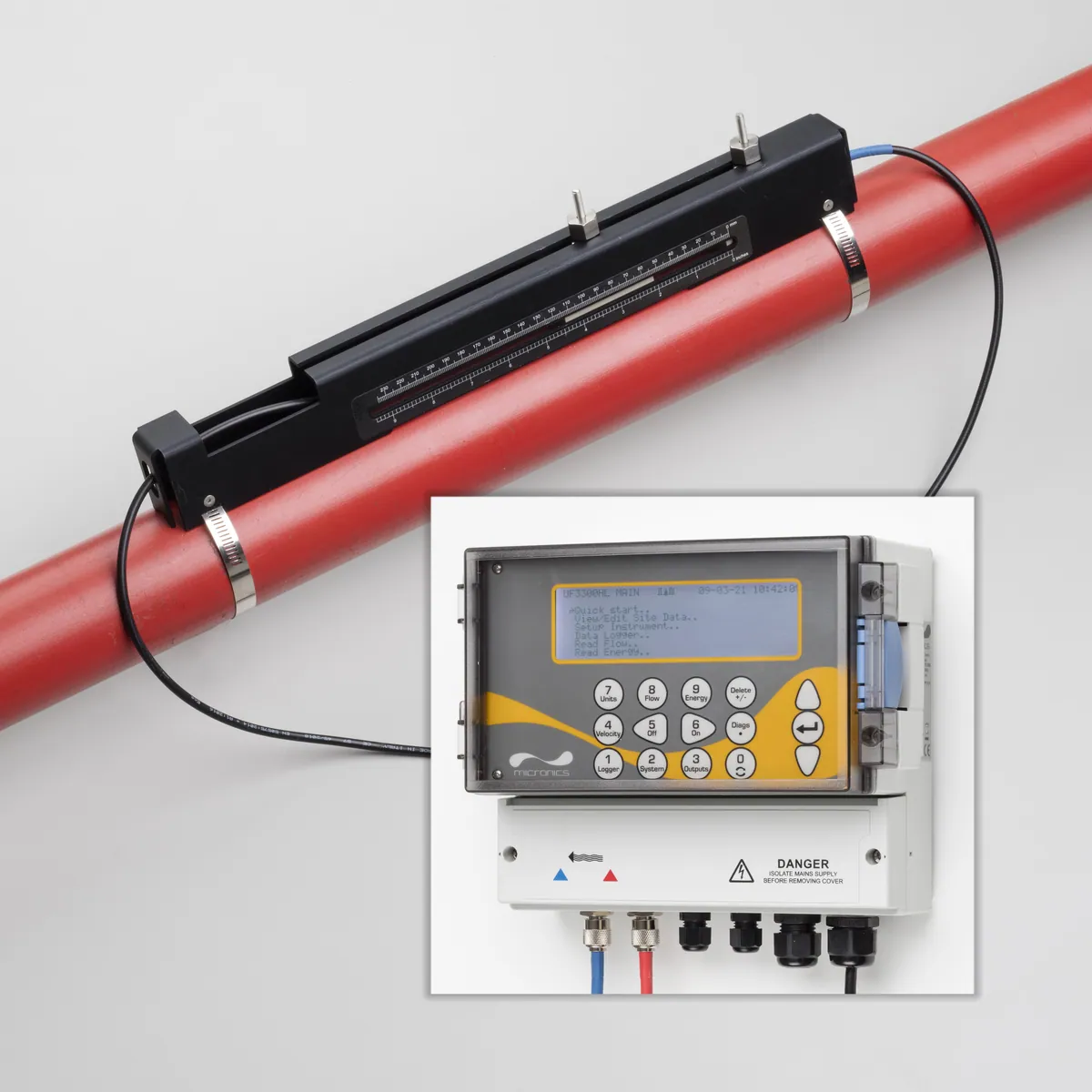

13-115mm UF3300-FM Fixed Ultrasonic Clamp-On Flow Meter

Overview

Transit-time sensing gives flow rate and total with a pulse output, with no pipe cutting and no pressure loss. The pipe range is shown in the product name.

• With ‘A’ type transducers (13-115mm OD)
• New cross correlation flow measurement system
• 64 x 240 pixels display
• Optional 100 million point data logger and RS232/USB outputs
• Flow Range – 0.1m/sec to 20m/sec bi-directional
• Set-up via 15 key control panel
• CE approved

Specifications

Transducer Operating Temp

-20°C to +135°C with High Temp option

Sensor cables, blocks and temp sensors

IP54 with IP68 option

Power

86V to 264V AC. Optional 24V a.c./d.c. 1A max
