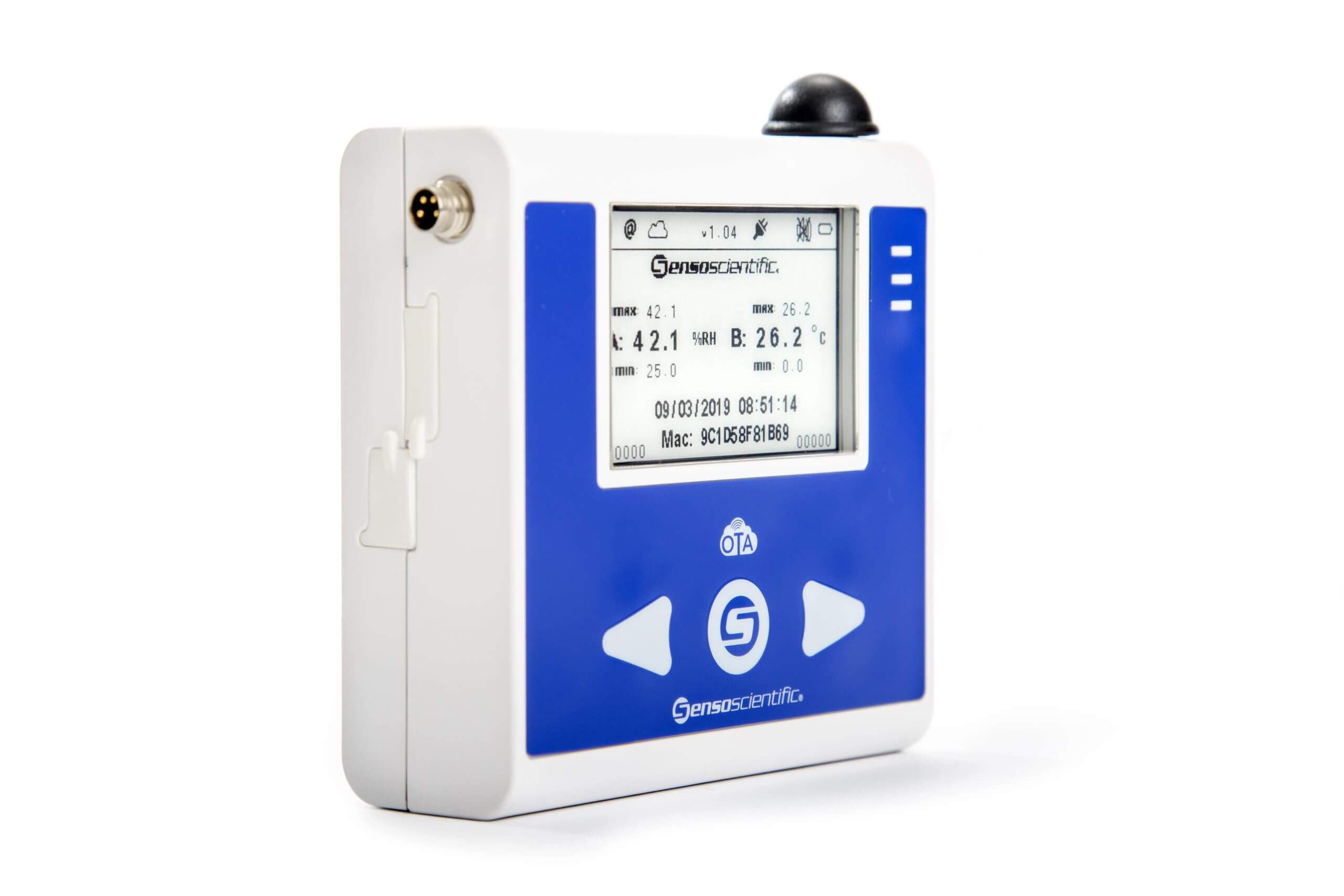

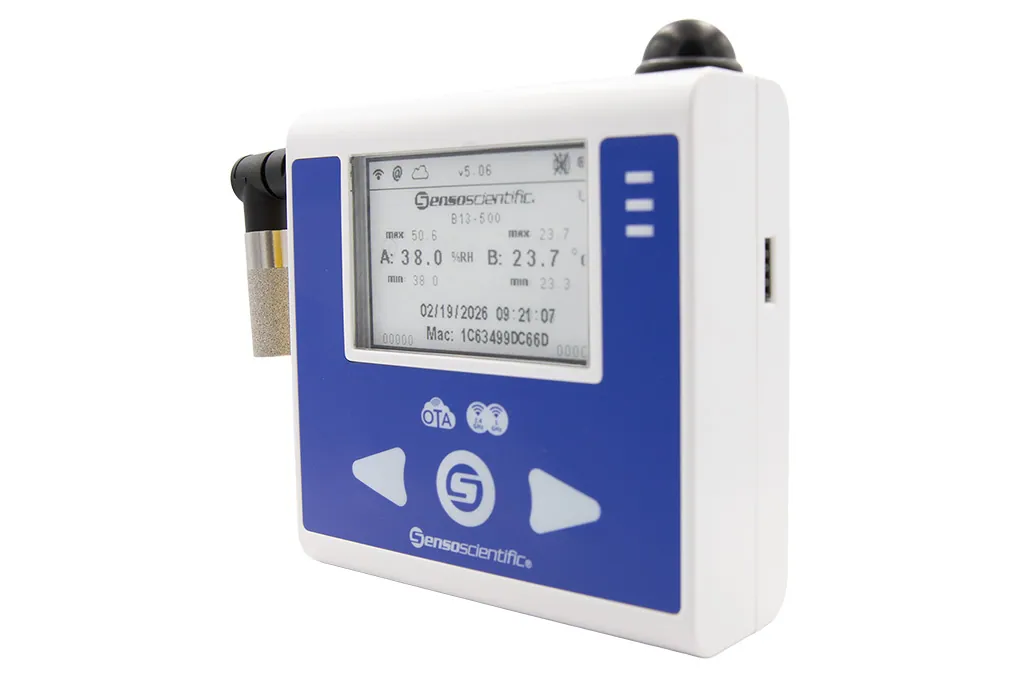

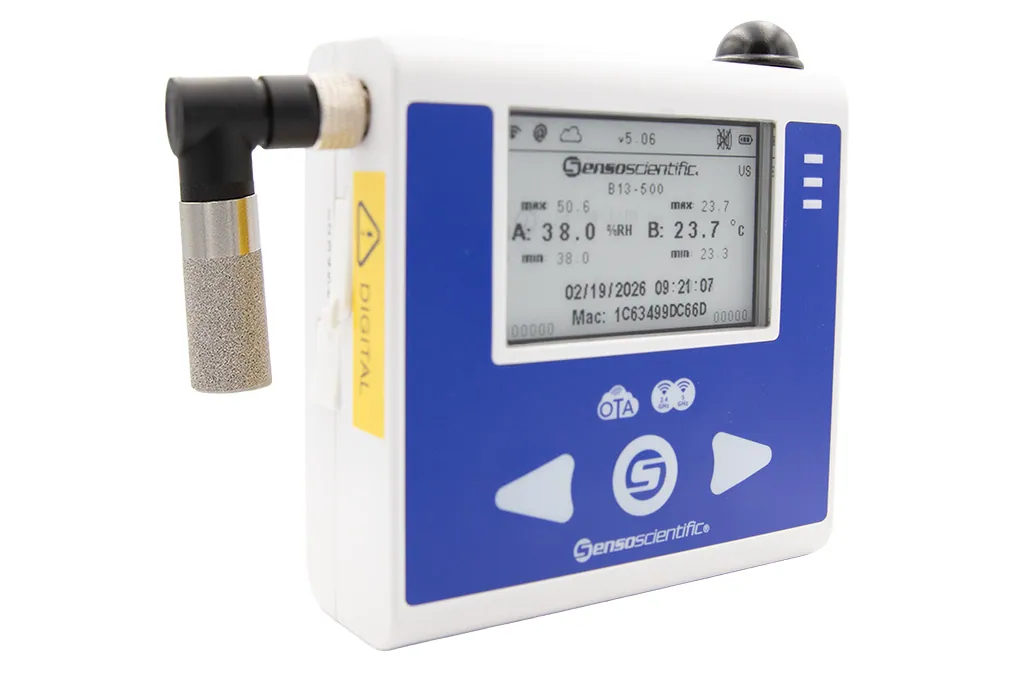

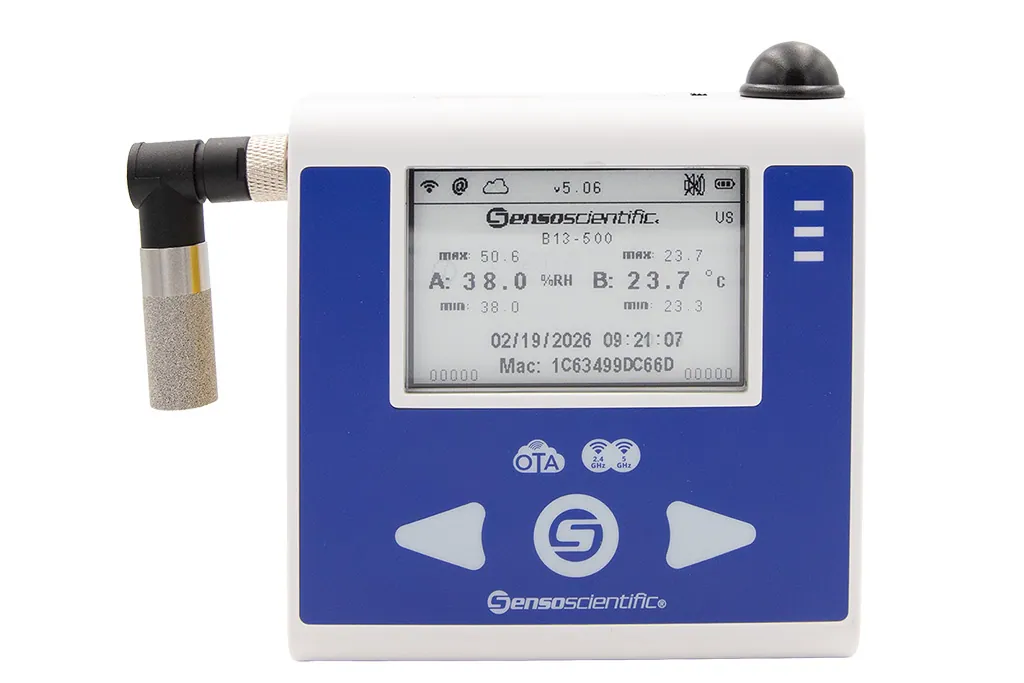

Temperature & Humidity Sensor - Wi-Fi OTA (B13-200-OTA, B13-500-OTA)

Overview

A Wi-Fi sensor that monitors ambient temperature and humidity up to 125C and 100% RH, available in single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity. SensoScientific Wi-Fi transmitters provide high-speed, secure data transmission over 802.11 b/g/n Wi-Fi (2.4-2.497 GHz) using PEAPv0 enterprise security and TCP protocol. They track user-defined conditions and send real-time alerts through SMS, email, voice calls, and other methods. Data is time-stamped and stored securely with no user-edit capability.

Specifications

Temperature Range

-40C to 125C (-40F to 257F)

Humidity Range

0% RH to 100% RH

Standard Calibration Point

35C

Accuracy

+/-0.5C (0C to 60C); +/-3% RH (0% RH to 90% RH)

Ambient Operating Range

0C to 75C (32F to 167F); Up to 95% RH

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms

Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency

2.4 to 2.497 GHz

Radio Protocol

IEEE802.11 b/g/n Compatible 54Mbit/sec

Enterprise Security

PEAPv0 with EAP-MSCAPv2 (PEAP)

Housing

ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting

Zip Tie Mount Hooked with Screw Holster Wall Mount

Power Supply

(4) 1.5V AA Batteries (Lithium or Alkaline); Optional AC/DC Power Supply (UL Certified)

Battery Life

1 Year

Dimensions

Height 4.25" (108mm); Width 3.88" (98mm); Length 1.38" (35mm)

LDAP

Single Sign-on Capability

Certificates

Device-level Certificates

Warranty

1-Year Warranty
