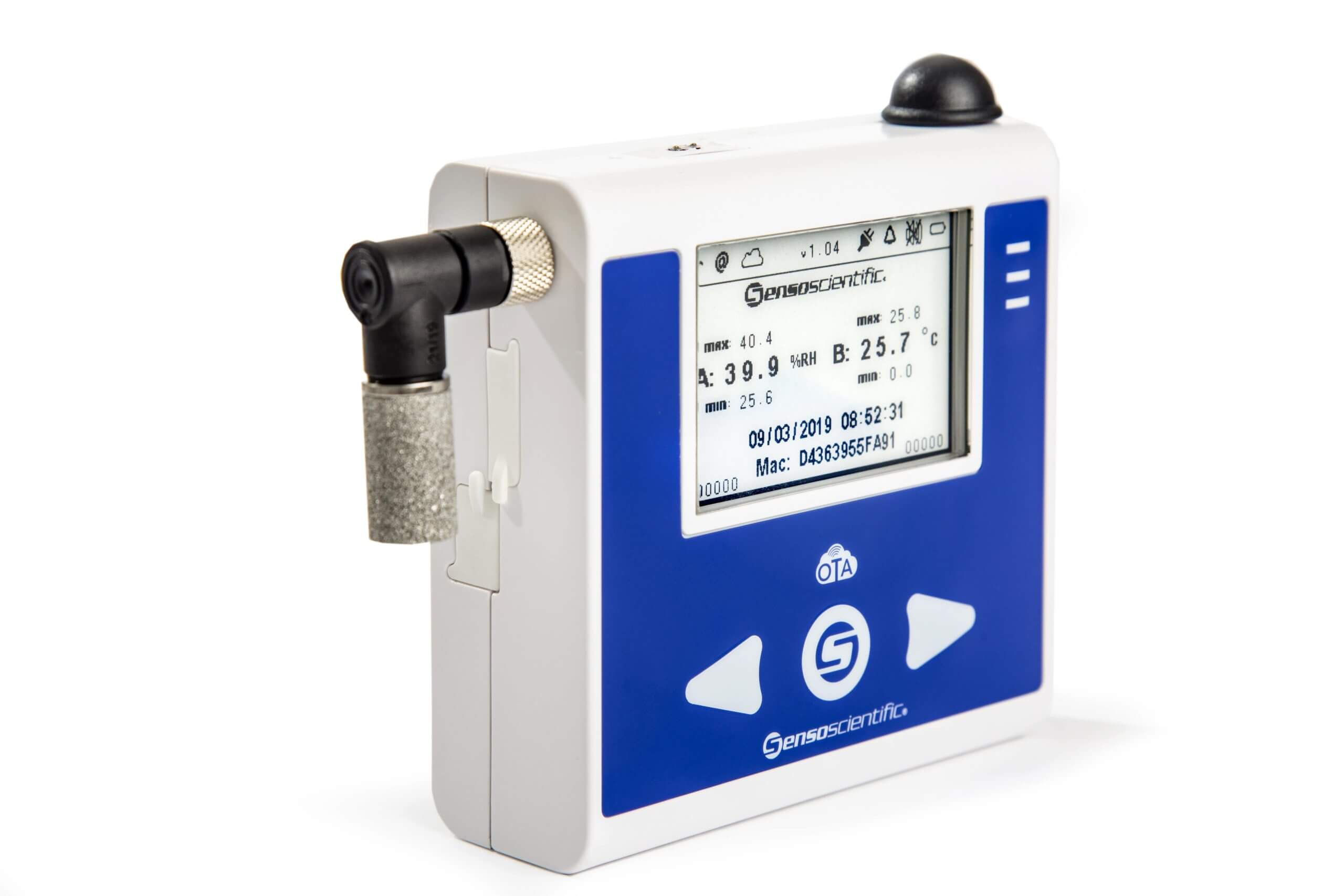

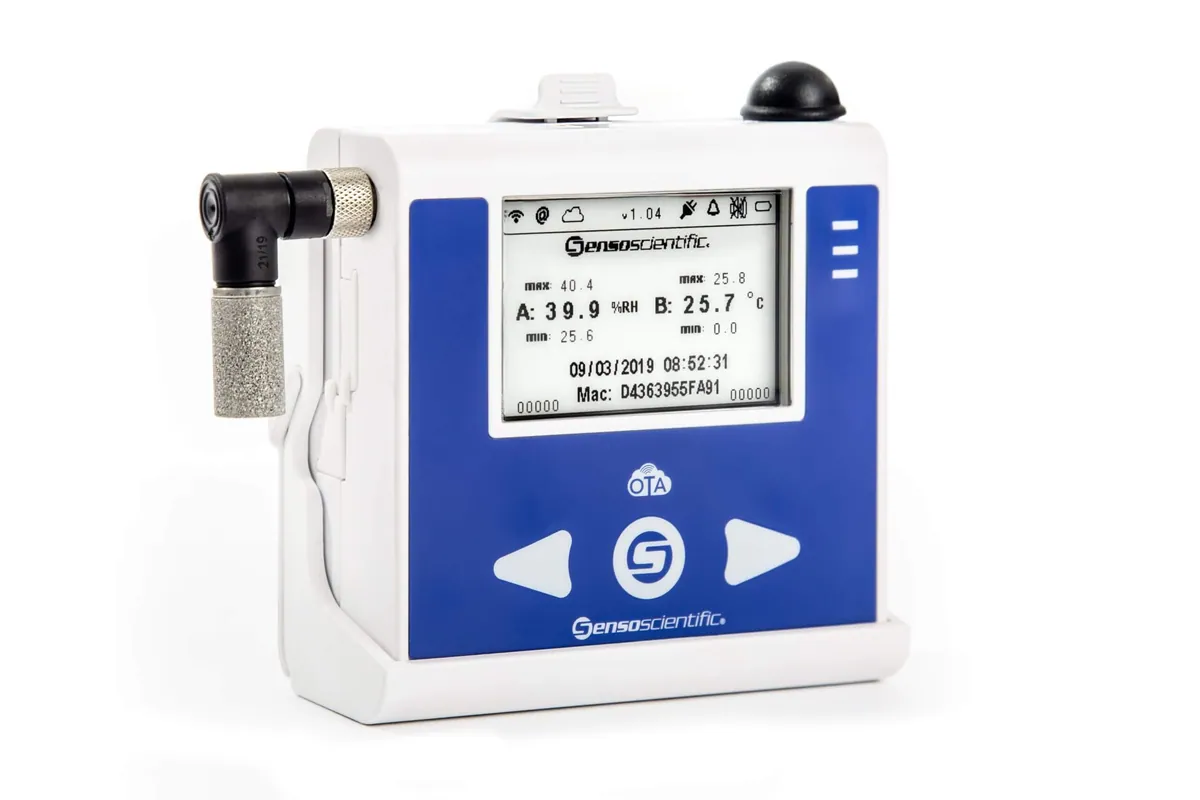

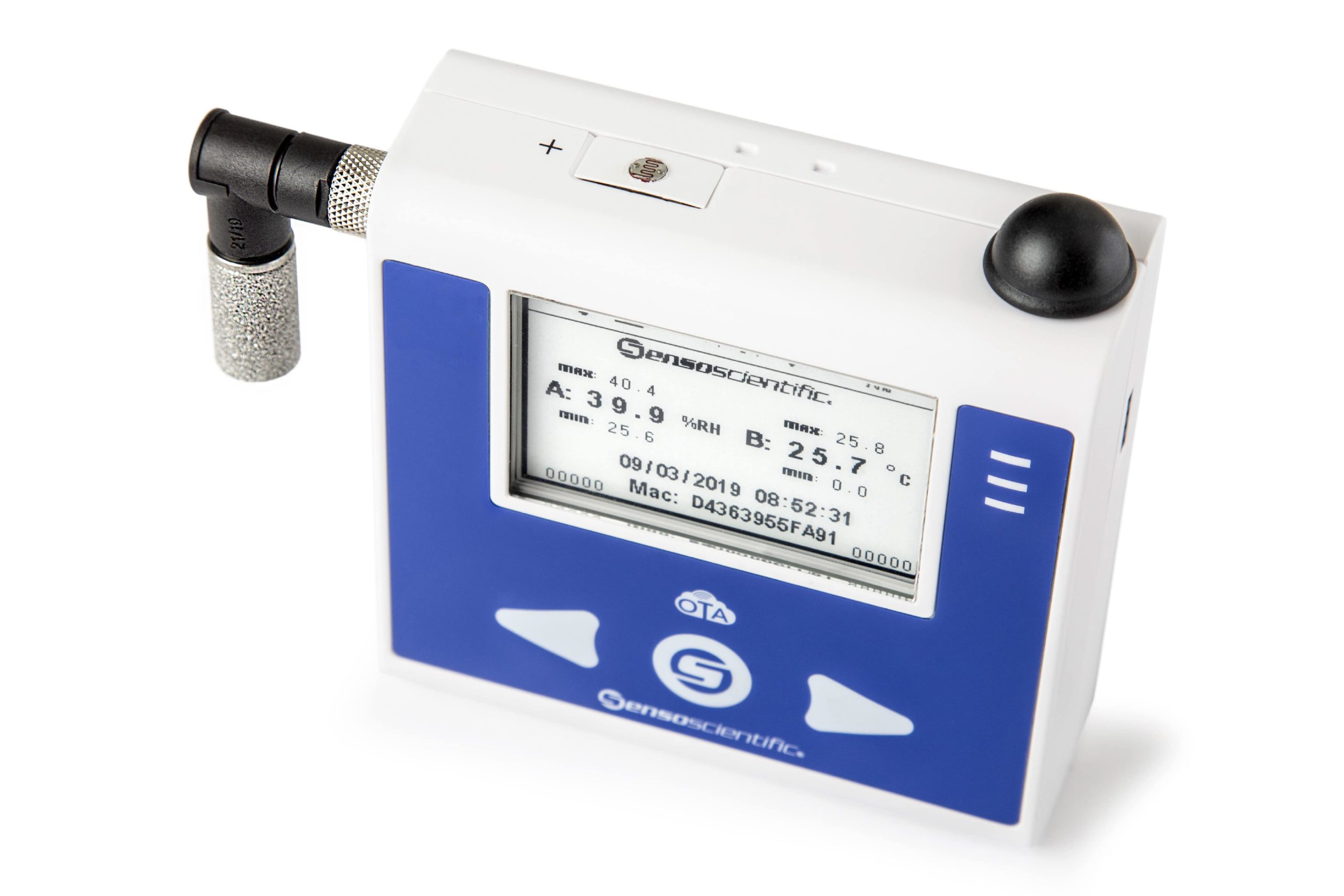

Light, Temperature & Humidity Sensor - Wi-Fi OTA (B19-200-OTA, B19-500-OTA)

Overview

A Wi-Fi sensor that logs light On/Off records and measures wireless temperature and humidity, available in single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity. SensoScientific Wi-Fi transmitters are high-speed wireless modules with PEAPv0 enterprise security that collect, store, and transmit data over 802.11 b/g/n Wi-Fi (RF 2.4 to 2.497 GHz) using TCP protocol. Monitors against user-defined preset conditions and delivers alerts via SMS, text, voice, pager, cell phone, fax, and email. Data is time-stamped and cannot be altered through the user interface.

Specifications

Light Range

On or Off

Temperature Range

-40C to 125C (-40F to 257F)

Humidity Range

0% to 100% RH

Accuracy

+/-0.5C (0C to 60C); +/-2% RH (0% RH to 90% RH)

Ambient Operating Range

0C to 75C (32F to 167F); Up to 95% RH

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms

Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency

2.4 to 2.497 GHz

Radio Protocol

IEEE802.11 b/g/n Compatible 54Mbit/sec

Enterprise Security

PEAPv0 with EAP-MSCAPv2 (PEAP)

Housing

ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting

Zip Tie Mount Hooked with Screw Holster Wall Mount

Power Supply

(4) 1.5V AA Batteries (Lithium or Alkaline); Optional AC/DC Power Supply (UL Certified)

Battery Life

1 Year

Dimensions

Height 4.25" (108mm); Width 3.88" (98mm); Length 1.38" (35mm)

LDAP

Single Sign-on Capability

Certificates

Device-level Certificates

Warranty

1-Year Warranty
