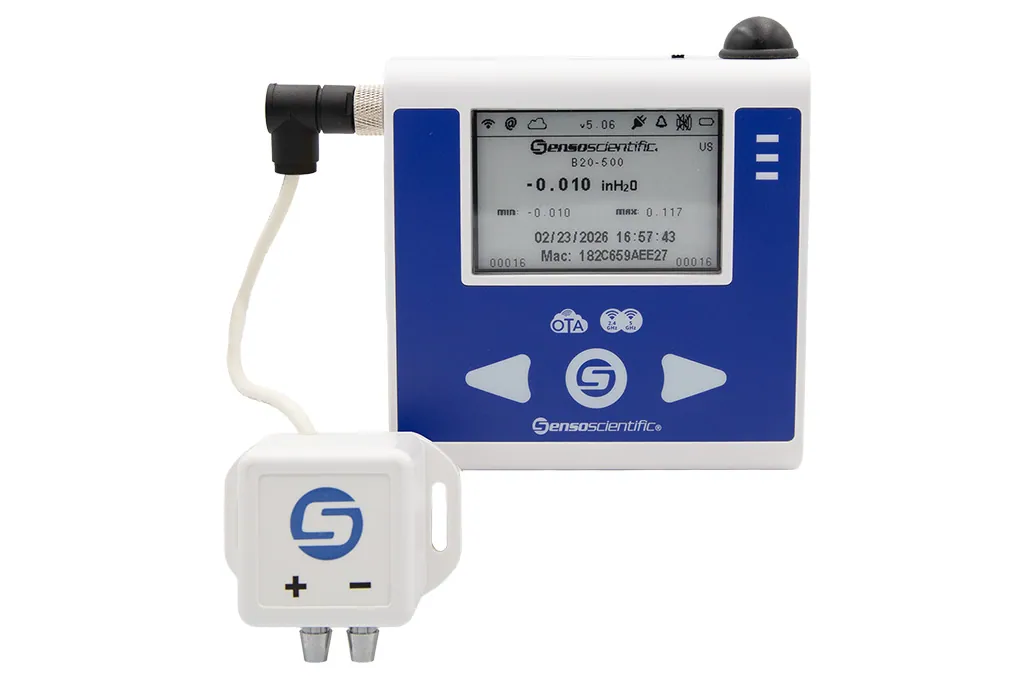

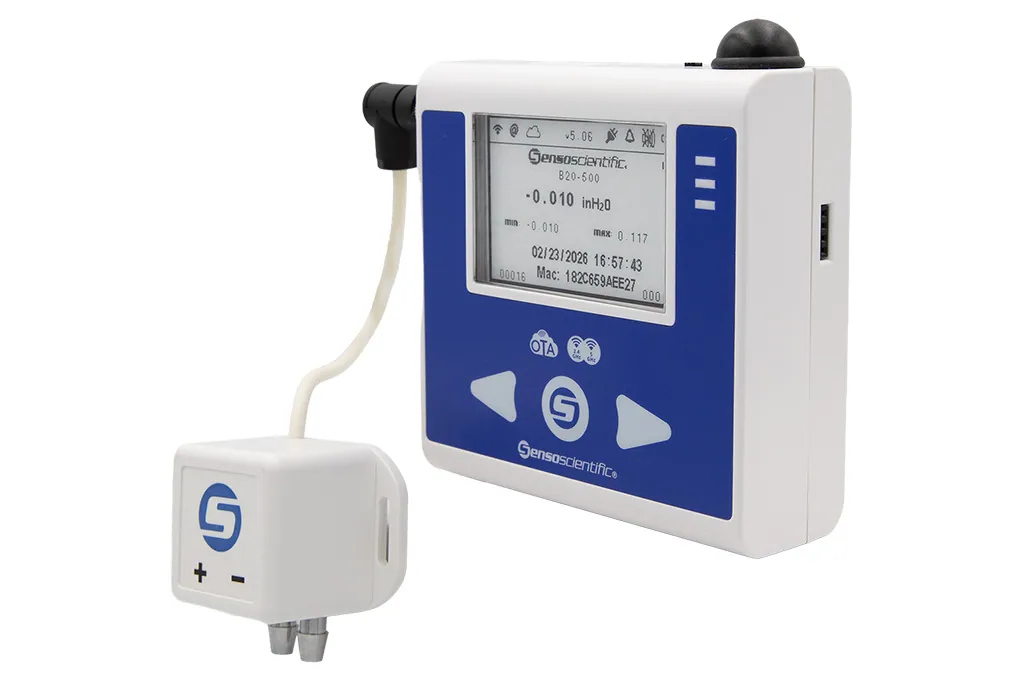

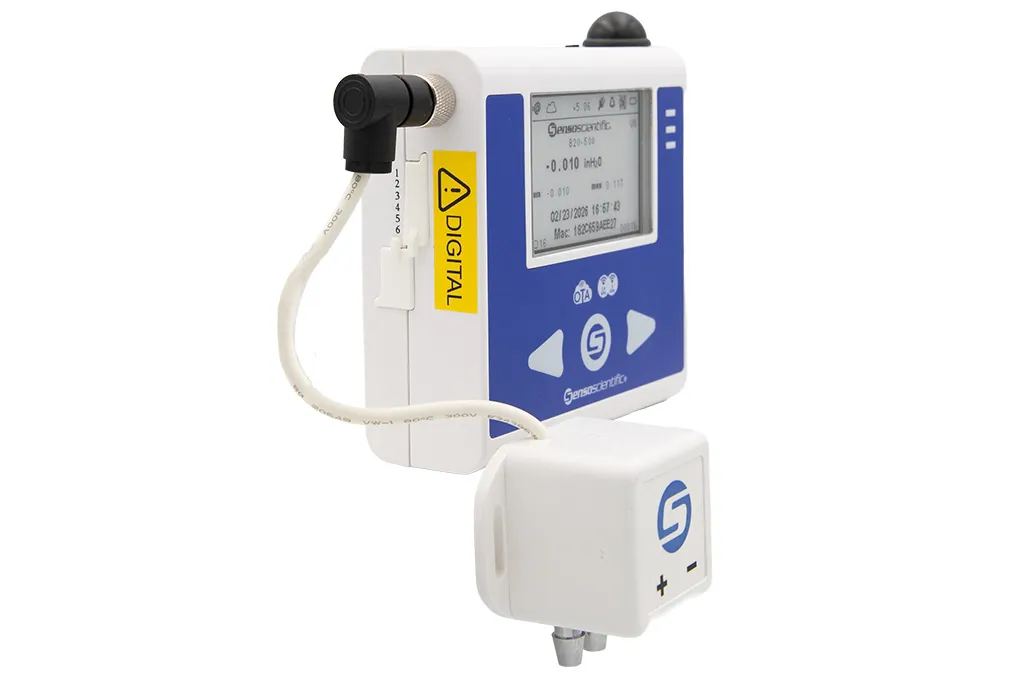

Differential Pressure Sensor - Wi-Fi OTA (B20-200-OTA, B20-500-OTA)

Overview

Monitors differential pressure between positive and negative pressure locations up to +/-0.1 inWC. Available in single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity. SensoScientific Wi-Fi transmitters are wireless modules for secure, high-speed data collection, storage, and transmission over standard 802.11 b/g/n Wi-Fi (RF 2.4 to 2.497 GHz) using TCP, with PEAPv0 enterprise security. Each transmitter monitors user-defined preset conditions and sends customizable alerts via SMS, text, voice calls, pagers, cell phones, faxes, and email. Readings are time-stamped and stored in a tamper-proof database.

Specifications

Differential Pressure Range

+/-0.1 inWC

Accuracy

+/-0.001 inWC

Ambient Operating Range

0C to 75C (32F to 167F); Up to 95% RH

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms

Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency

2.4 to 2.497 GHz

Radio Protocol

IEEE802.11 b/g/n Compatible 54Mbit/sec

Enterprise Security

PEAPv0 with EAP-MSCAPv2 (PEAP)

Housing

ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting

Zip Tie Mount Hooked with Screw Holster Wall Mount

Power Supply

(4) 1.5V AA Batteries (Lithium or Alkaline); Optional AC/DC Power Supply (UL Certified)

Battery Life

1 Year

Dimensions

Height 4.25" (108mm); Width 3.88" (98mm); Length 1.38" (35mm)

LDAP

Single Sign-on Capability

Certificates

Device-level Certificates

Warranty

1-Year Warranty
