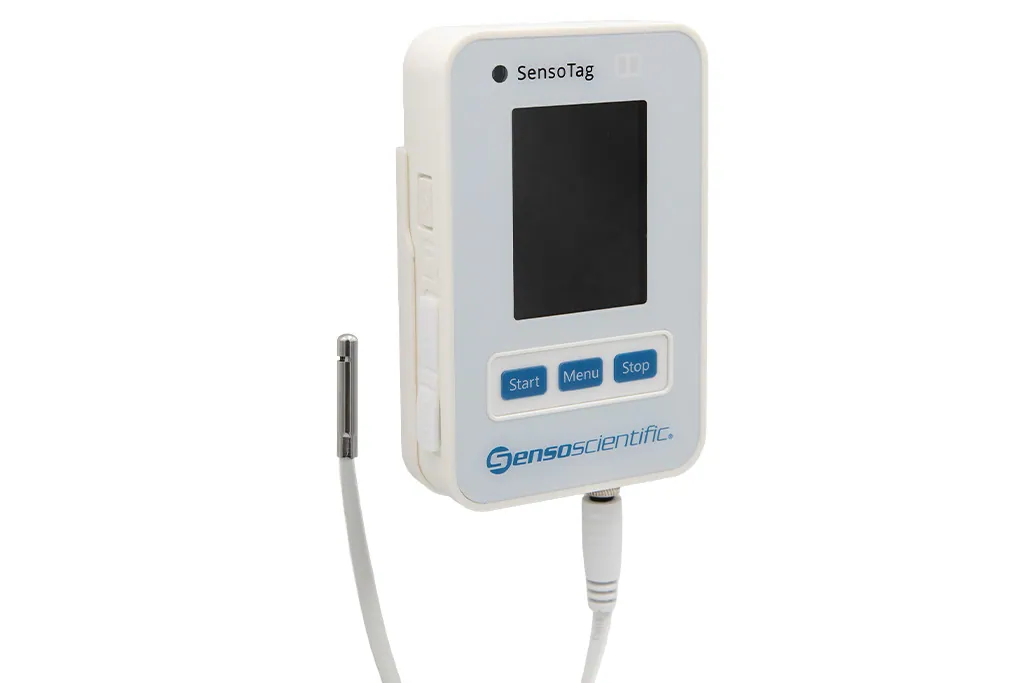

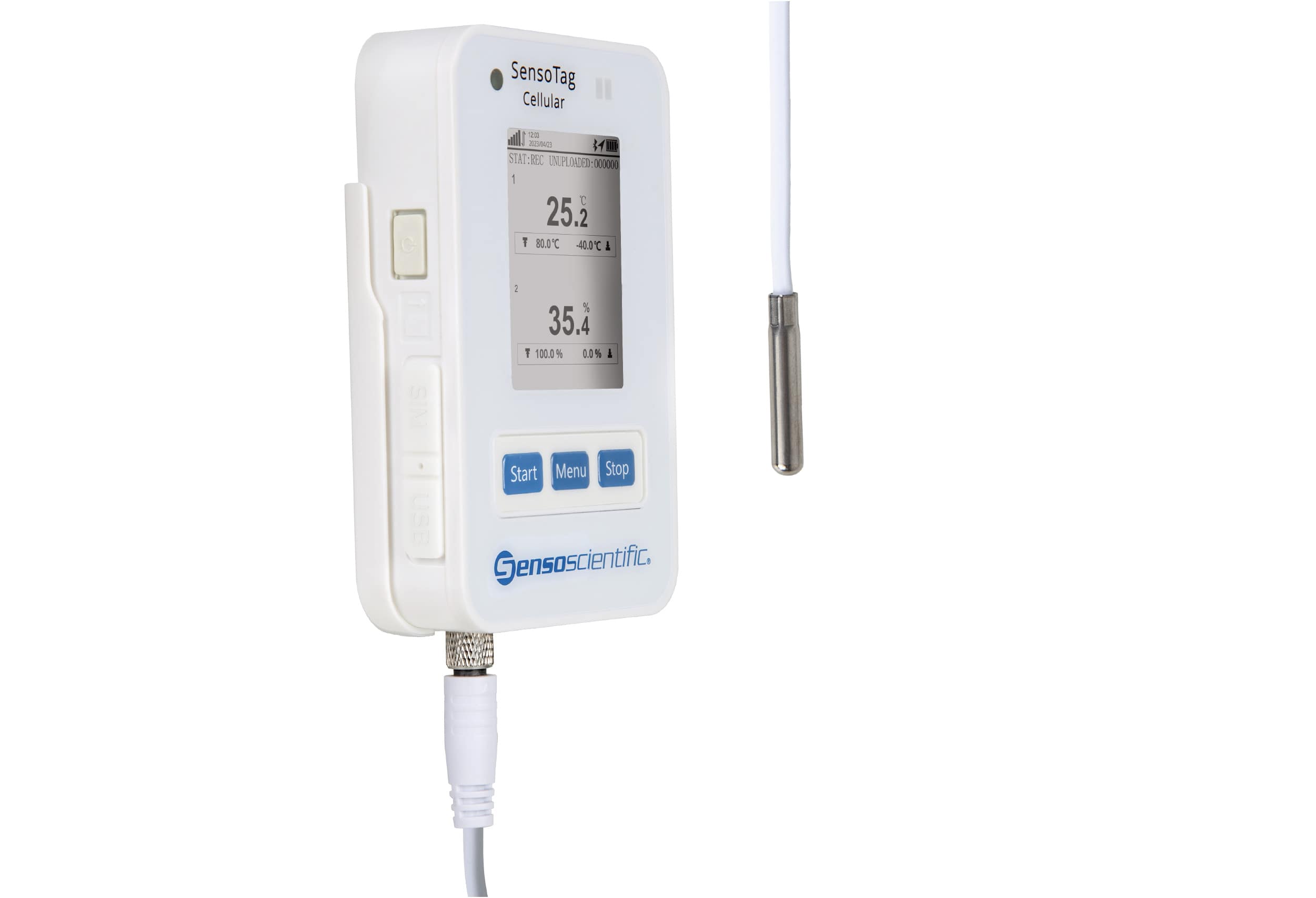

Temperature & Humidity Sensor - SensoTag Cellular (SensoTag-C-B13K)

Overview

An in-transit cellular monitoring sensor that measures temperature and humidity from -40C to 80C (-40F to 176F) and up to 100% RH. The SensoTag Cellular data loggers rely on IoT and 4G cellular technology for real-time monitoring, alarms, and reporting, aimed at cold chain logistics and high-transport applications. Offers a large display showing current, min/max readings, battery life, and connectivity status. Stores over 100,000 readings locally with unlimited cloud storage through the SensoScientific Cloud.

Specifications

Sensor Type

Digital Temperature and Humidity Sensor

Channel

One Temperature and Humidity Probe

Temperature Range

-40C to 80C (-40F to 176F)

Humidity Range

Up to 100% RH

Measurement Accuracy

+/-0.5C (-50C to 85C); +/-5% RH

Display Resolution

0.1C; 0.1% RH

Communication Mode

4G

Positioning

GPS and LBS

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings)

Data Storage Mode

Circular Storage

Normal Recording Interval

1 Min to 24 Hr Allowed

Alarm Recording Interval

1 Min to 24 Hr (Must Be <= Normal Recording Interval)

Normal Upload Interval

1 Min to 24 Hr, Defaulted to 5 Min

Alarm Upload Interval

1 Min to 24 Hr, Defaulted to 2 Min (Must Be >= Alarm Recording Interval)

Alarms

Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud

Screen

TFT Color Screen

Waterproof Grade

IP64

Power Input

5V/2A (DC) with Charging Indicator Light

Battery Life

>= 3 Months (25C, 30 Min upload, LBS); >= 14 Days (25C, 30 Min upload, LBS + GPS)

Dimensions

Height 4.29" (109mm); Width 2.73" (69.4mm); Length 0.9" (22.9mm)

Certificates

Device-level Certificates
