RTD Temperature Sensor - SensoTag Cellular (SensoTag-C-B80K)

Overview

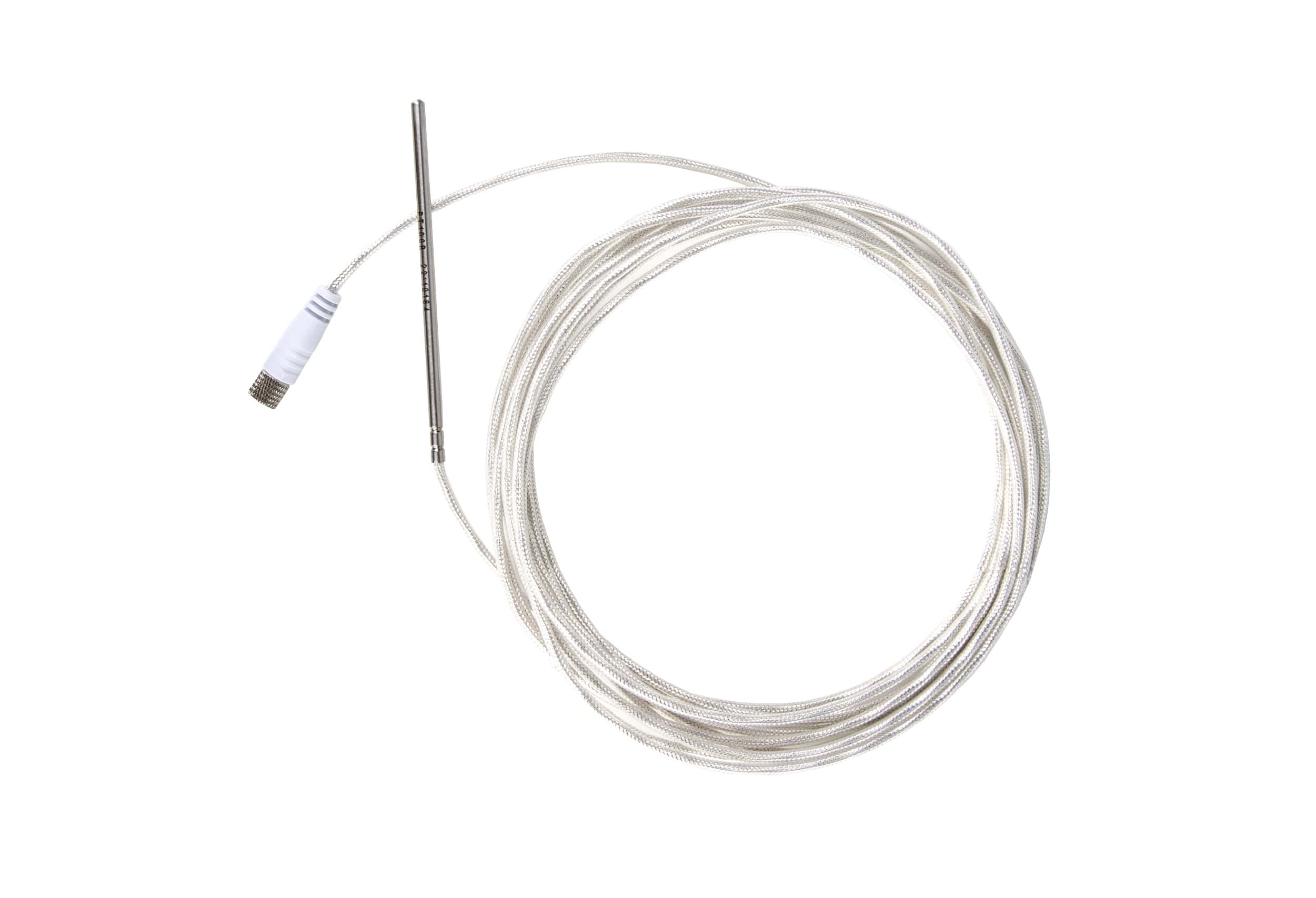

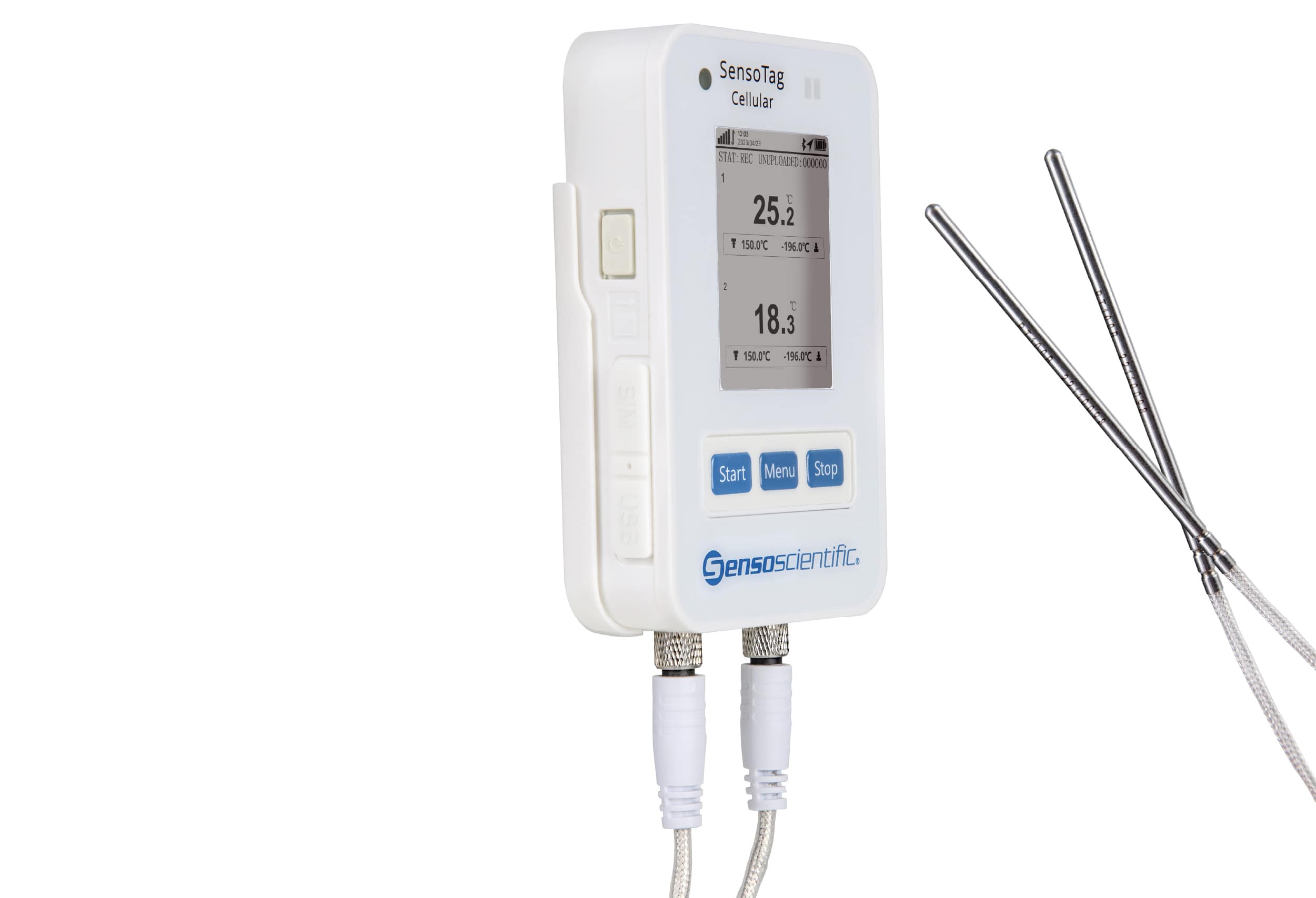

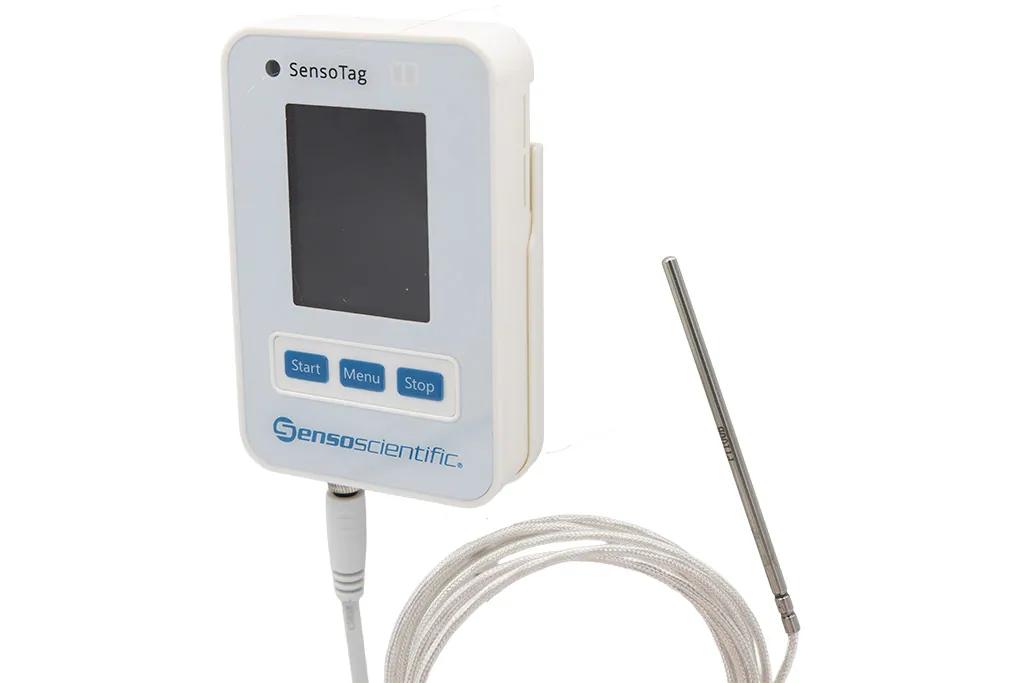

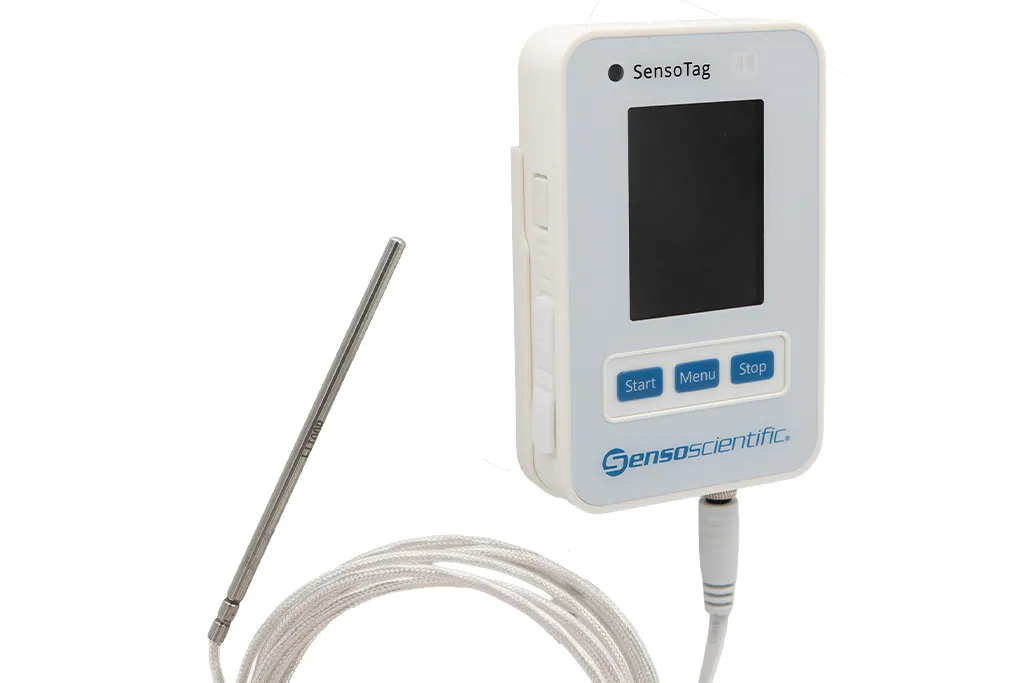

An in-transit cellular temperature sensor that measures ultra-low RTD temperatures from -196C to 150C (-320F to 302F). The SensoTag Cellular data loggers deliver real-time monitoring, alarming, and reporting using IoT and 4G cellular technology, suited to cold chain logistics and high-transport applications. The compact device has a large display showing current, min/max readings, battery life, and connectivity status. Built with RTD sensors for ultra-low temperature monitoring; each unit stores over 100,000 readings locally with unlimited cloud storage through the SensoScientific Cloud.

Specifications

Sensor Type

Ultra Low Temperature Sensor

Channel

One or Two Temperature Probes

Dual Temperature Range

-196C to 150C (-320.8F to 302F)

Measurement Accuracy

+/-0.3C (-20C to 40C); +/-0.5C (-50C to 85C); +/-1C (-100C to 150C); +/-2C (others)

Temp. Display Resolution

0.1C

Communication Mode

4G

Positioning

GPS and LBS

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings)

Data Storage Mode

Circular Storage

Normal Recording Interval

1 Min to 24 Hr Allowed

Alarm Recording Interval

1 Min to 24 Hr (Must Be <= Normal Recording Interval)

Normal Upload Interval

1 Min to 24 Hr, Defaulted to 5 Min

Alarm Upload Interval

1 Min to 24 Hr, Defaulted to 2 Min (Must Be >= Alarm Recording Interval)

Alarms

Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud

Screen

TFT Color Screen

Waterproof Grade

IP64

Power Input

5V/2A (DC) with Charging Indicator Light

Battery Life

>= 3 Months (25C, 30 Min upload, LBS); >= 14 Days (25C, 30 Min upload, LBS + GPS)

Dimensions

Height 4.29" (109mm); Width 2.73" (69.4mm); Length 0.9" (22.9mm)

Certificates

Device-level Certificates
