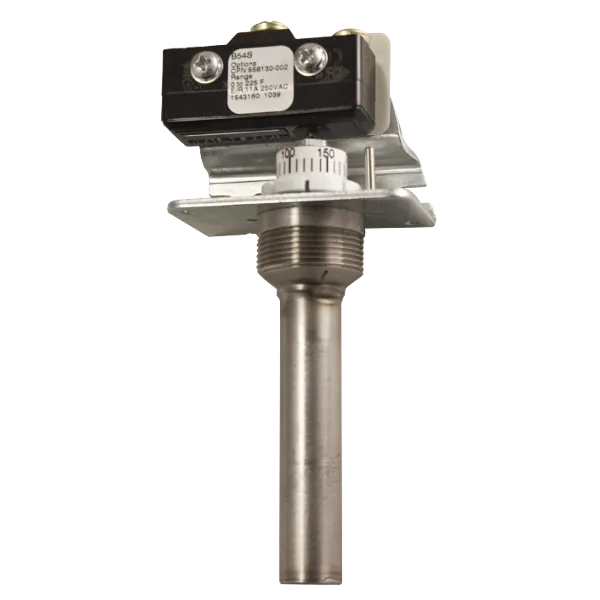

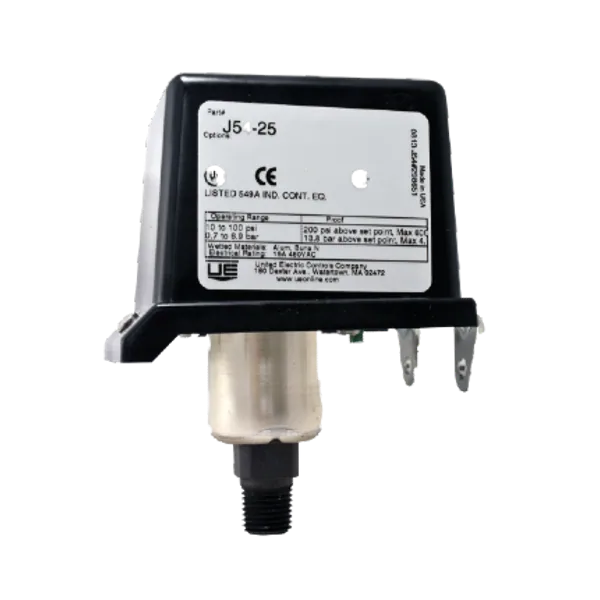

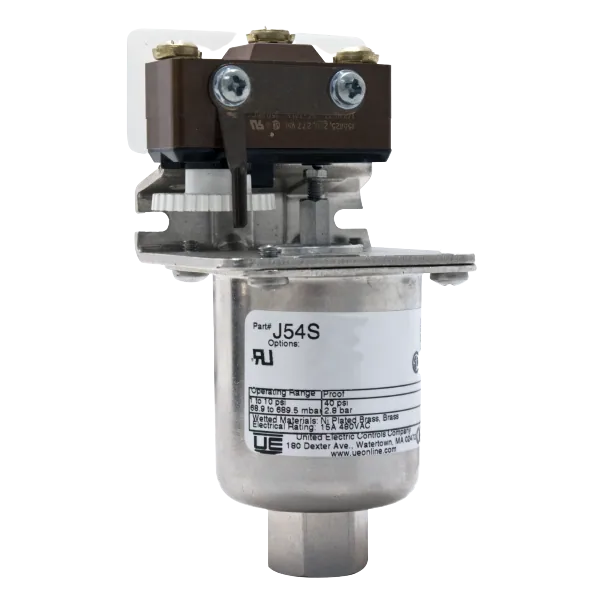

54 Series Pressure / Temperature Switch

Overview

• Single or dual SPDT or switch outputs
• Adjustable pressure setpoint ranges from 30″ HgVac to 6000 PSI
• Adjustable temperature setpoint ranges from -130° to 650° F (-90° to 343.3° C)
• Repeatability to ±1% full scale range
• Easy setting by reference dial or hex screw adjustment
• Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
• Optional external manual reset
• Brass or aluminium threaded pressure connections
• Adjustable or narrow deadband for improved accuracy
• NEMA 1 polycarbonate enclosure or open frame (skeleton) construction
• cUL, cULus listed, cURus recognised, CE compliant
