1 / 3Temperature Switches

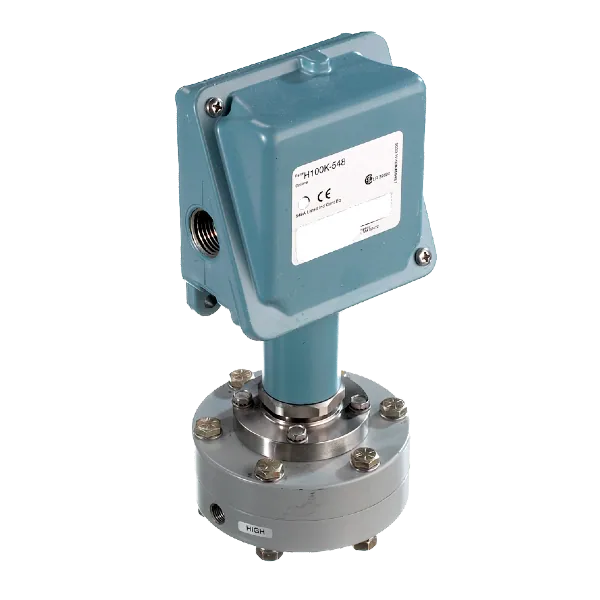

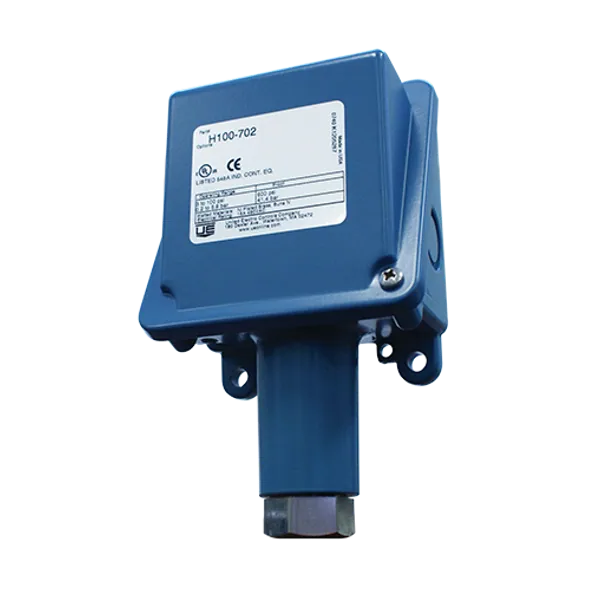

100 Series Pressure / Temperature Switch
Cost-effective electromechanical pressure and temperature switch for process plant and OEM equipment.
Part no.100 Series
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
One-piece rugged housing with a slanted cover for easy wiring.
- UL listed and cUL certified
- CE compliant to low voltage directive and pressure equipment directive
- Optional ATEX or GOST intrinsic safety compliance
- Single switch (SPDT or DPDT) output
- Welded stainless steel diaphragm models
- Ultra-low pressure, “wc models
- Optional sensor material for corrosive media
- Polished stainless steel flush mount connection
- Pump switch models with wide adjustable deadband
- Tamper-Resistant Set Point “Lock”
- Heat Trace and Freeze Protection Thermostats
- Proof Pressures to 10,000 psi (689,5 bar)
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 3
Data Sheets 4
- Data sheet: 100 Series Pressure, Vacuum, Differential Pressure and Temperature Switches (Metric) Da…PDF · from the manufacturer
- 100 Series Pressure, Vacuum, Differential Pressure and Temperature Switches DatasheetPDF · from the manufacturer
- Datasheet »PDF · from the manufacturer
- Datasheet »PDF · from the manufacturer
Certificates & Approvals 10
- 10, 12, 24, 54, 100, 117, 120, 400, J6, J21K, J40, Excela, One Series, One Series Safet…PDF · from the manufacturer
- 100 Series – UL Certificate of Compliance – Canada for Elevators Controls & Accessories…PDF · from the manufacturer
- 100 Series – UL Certificate of Compliance – USA for Elevators Controls & Accessories (N…PDF · from the manufacturer
- 100 Series – UL Certificate of Compliance Pressure (North America)PDF · from the manufacturer
- 100 Series – UL Certificate of Compliance Temperature (North America)PDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – UKCA Ex ia Certificate (UK)PDF · from the manufacturer
More Documents 6
- FMEDA Report: 100 & 120 SeriesPDF · from the manufacturer
- 13954 Heat Trace and Freeze Protection B100-13546PDF · from the manufacturer
- 13953 Heat Trace and Freeze Protection E100-13545PDF · from the manufacturer
- 12707-7 h100-15884PDF · from the manufacturer
- 12709-29 h100-15623PDF · from the manufacturer
- 12709-30 H100-15731 thru 15737PDF · from the manufacturer
