Probes
DP001 Differential Pressure Probe (+/-0.25 inWC)
Measures high-accuracy differential pressure readings between positive and negative spaces within +/-0.25 inWC.
Details
Brand
1 / 4Probes

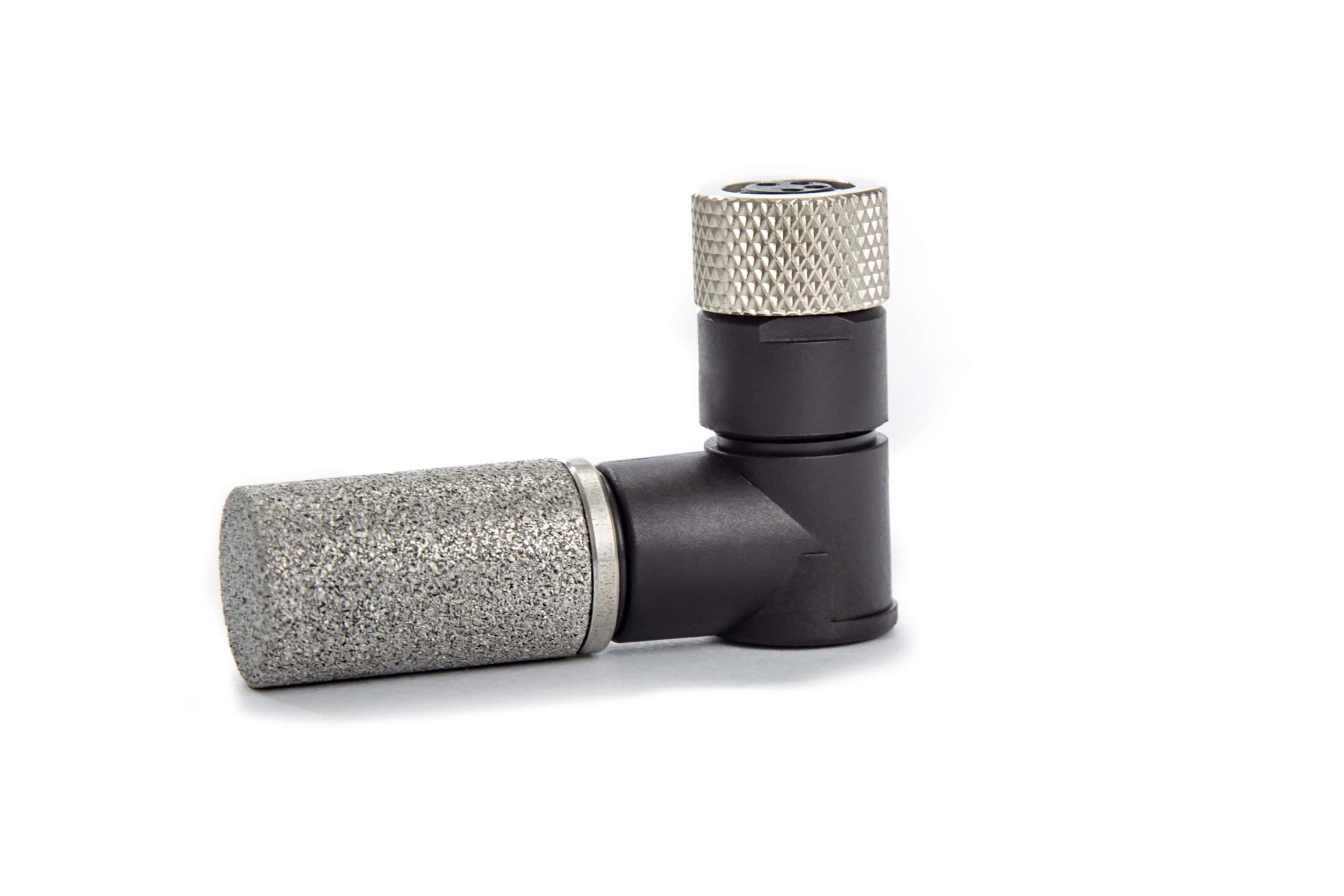

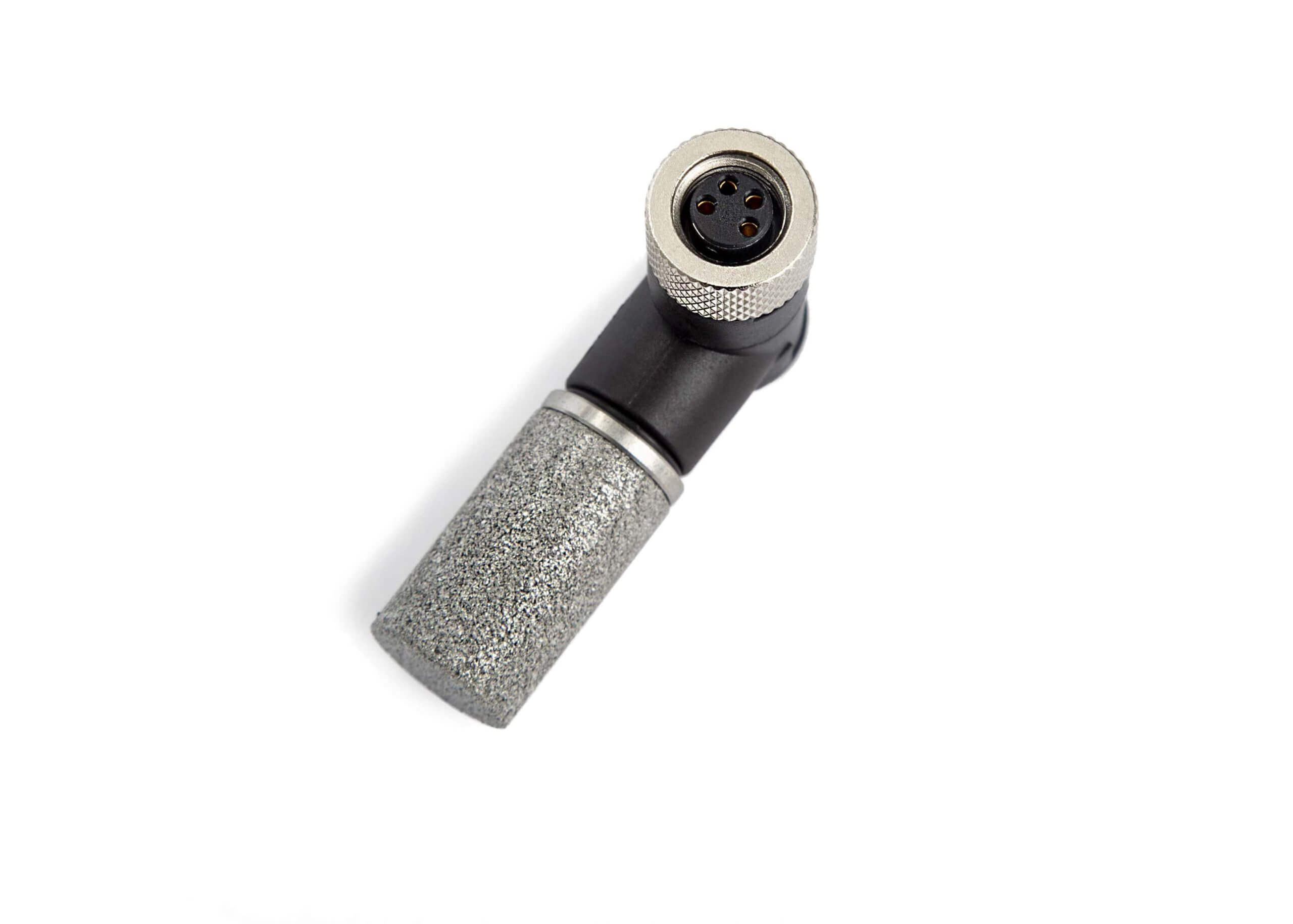

Temperature & Humidity Probe (-40C to 120C; 0%RH to 100%RH)
A probe that measures ambient temperature and humidity up to 120C and 100% RH.
Part no.SHT85-KHT - Humidity / Temperature Probe (-40C to 120C; 0%RH to 100%RH)SHT85-KHD - Humidity / Dew Point Temperature Probe (-40C to 120C; 0%RH to 100%RH)
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview

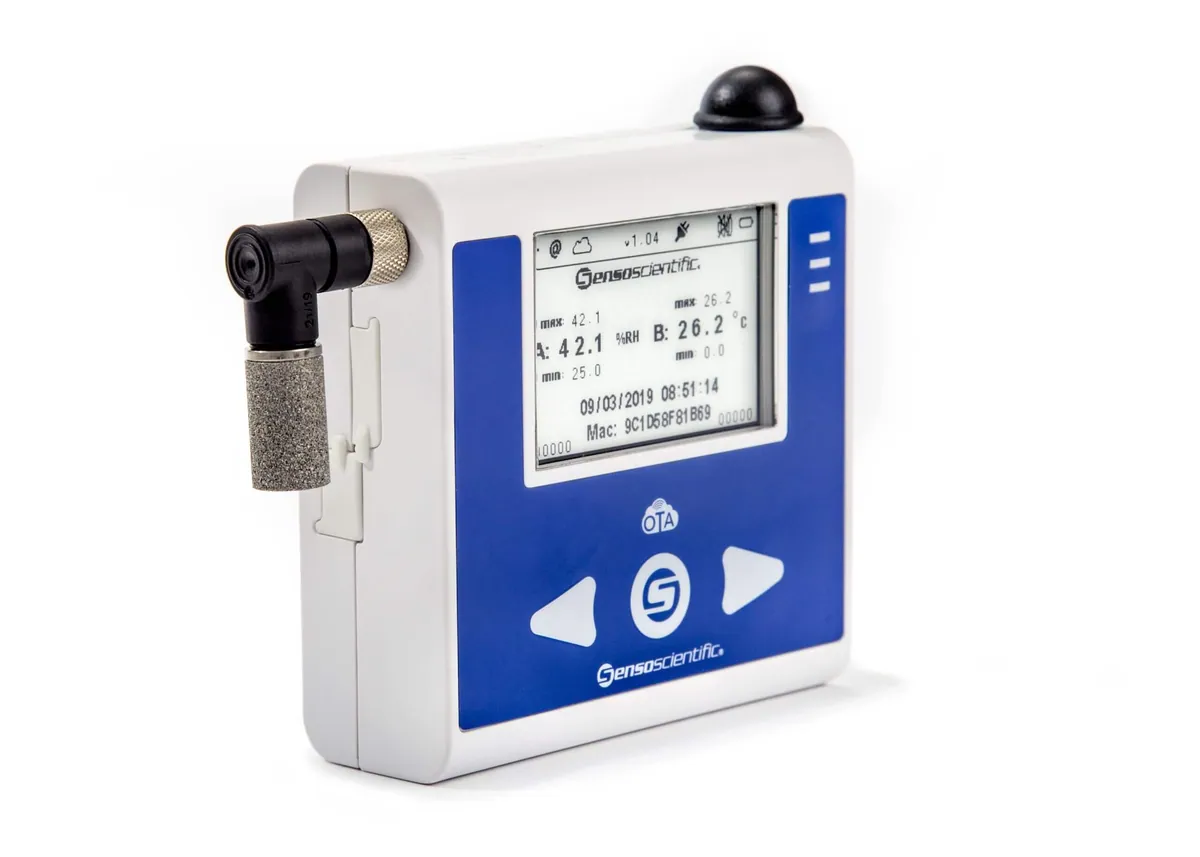

A probe that measures ambient temperature and humidity up to 120C and 100% RH. SensoScientific humidity probes are made from rust-free 504 stainless steel and come with an industrial-grade M8 connector that attaches to any SensoScientific device, plus a metal fastener for secure attachment. NIST traceable and calibrated by SensoScientific's A2LA Accredited Calibration Laboratory, with certificates available on the SensoScientific Cloud.
Specifications
- Temperature Range
- -40C to 125C (-40F to 257F)
- Standard Temperature Calibration Point
- 35C (95F)
- Humidity Range
- 0% RH to 100% RH
- Standard Humidity Calibration Point
- 33% RH
- Accuracy
- +/-0.5C (0C to 60C); +/-3% RH (0% RH to 90% RH)
- Probe Material
- 504 Stainless Steel
- Dimensions
- Height 1.13" (28.6mm); Diameter 0.47" (12mm)
- Connector Type
- M8
Humidity / Temperature Transmitters
110mm 160W/HP Wall Mount Humidity Transmitter, 3% Acc
Wall-mount relative humidity transmitter with a 110 mm plug-in digital sensor and one 4-20 mA output.
Details
Humidity / Temperature Transmitters
110mm 162W/HP Wall Mount Humidity / Temperature Transmitter, 2% Acc
Wall-mount humidity and temperature transmitter with a 110 mm interchangeable sensor and two 4-20 mA outputs.
Details
Humidity / Temperature Transmitters
250mm 160D/HP02 Duct Mount Humidity / Temperature Transmitter, 3% Acc
Duct-mount humidity and temperature transmitter with a 250 mm probe and two 4-20 mA outputs.
Details
Not Sure Which Instrument Fits?
Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
