Probes
Temperature & Humidity Probe (-40C to 120C; 0%RH to 100%RH)
A probe that measures ambient temperature and humidity up to 120C and 100% RH.
Details
Brand
1 / 3Probes

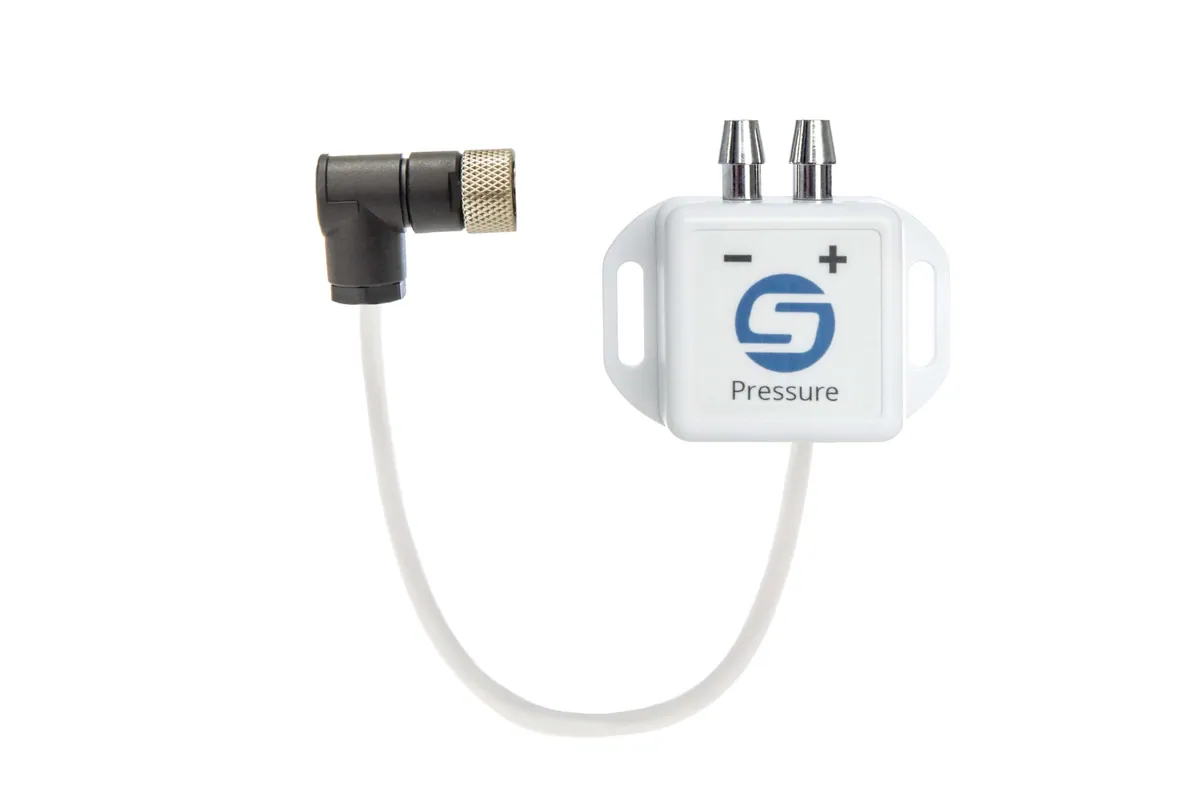

DP001 Differential Pressure Probe (+/-0.25 inWC)
Measures high-accuracy differential pressure readings between positive and negative spaces within +/-0.25 inWC.
Part no.DP001 - High Accuracy Ultra Low Differential Pressure Sensor (+/-0.25" H2O)
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview

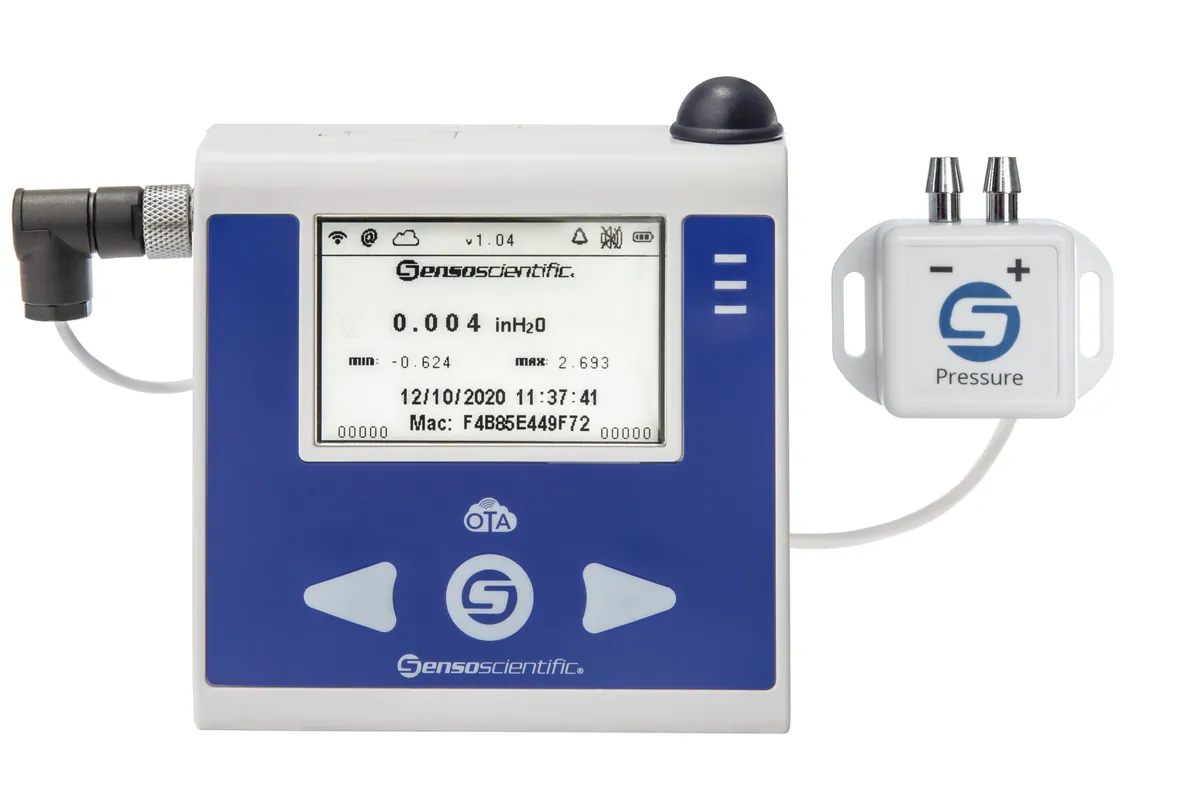

Measures high-accuracy differential pressure readings between positive and negative spaces within +/-0.25 inWC. Supports positive/negative air flow and uni- and bi-directional pressure measurement. A2LA accredited calibration with digital calibration certificate, device-level certificates, industrial-grade metal fastener, M8 connector, and 6" cable; compatible with SensoScientific devices.
Specifications
- Differential Pressure Range
- +/-0.25 inWC
- Accuracy
- +/-0.002 inWC
- Housing
- ABS Plastic
- Dimensions
- Width 1.36" (34.5mm); Length 1.36" (34.5mm)
- Cable Length
- 6"
- Connector Type
- M8
- Applications
- Airborne Infection Isolation (AII) Rooms; Protective Environment (PE) Rooms; HVAC Systems; Pharmaceutical Clean Rooms; Sterile Lab Environments; Laboratories; Special Procedure Rooms; Cytology Labs; Animal Testing Research Facilities; Operating Rooms; Infectious Materials Waste Rooms; Morgues
Humidity / Temperature Transmitters
110mm 160W/HP Wall Mount Humidity Transmitter, 3% Acc
Wall-mount relative humidity transmitter with a 110 mm plug-in digital sensor and one 4-20 mA output.
Details
Humidity / Temperature Transmitters
110mm 162W/HP Wall Mount Humidity / Temperature Transmitter, 2% Acc
Wall-mount humidity and temperature transmitter with a 110 mm interchangeable sensor and two 4-20 mA outputs.
Details
Humidity / Temperature Transmitters
250mm 160D/HP02 Duct Mount Humidity / Temperature Transmitter, 3% Acc
Duct-mount humidity and temperature transmitter with a 250 mm probe and two 4-20 mA outputs.
Details
Not Sure Which Instrument Fits?
Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
