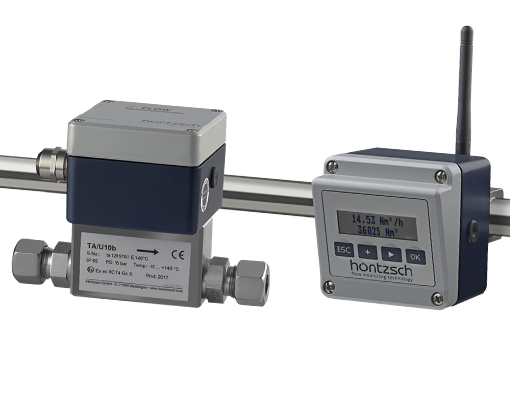

Thermal Measuring Tube TA Di - standard - with integrated transducer
Measuring tube TA Di with inside diameter 8, 16, 21.6, 27.2, 35.9 41.8 and 53.1 mm and transducer U10b in sensor connection housing. Via web interface, measuring instruments having a WiFi interface can be accessed by a web-enabled device, performance data can be checked and transferred and the device settings can be customised according to the measuring task. The unit can be used for a variety of gases even in ex-applications categories 3G and 3D (zone 2 and zone 22) That way there is no need for recalibration or return to the manufacturer when there’s a change of gas. The corresponding gas characteristics stored in the device simply have to be selected on the sensor.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Probe material: stainless steel
Working temperature range -10 ... +140 °C
Pressure resistance up to 16 bar
Configurable via an optional keypad in the housing lid or via WiFi interface.
Specifications
- Measuring range
- 0.6 ... 23967 l/min or 0.04 ... 1196 m³/h
- Pressure resistance
- up to 16 bar / 1.6 MPa above atmospheric
- Media temperature
- -10 ... +140 °C
- Media
- air (compressed air), nitrogen, methane, natural gas, propane, butane / argon, carbon dioxide, sulphur hexafluoride, helium, hydrogen, landfill gas, oxygen, …
- Displayed indicators
- Standard flow velocity [Sm/s], / Standard flow rate [Sm³/h] or [Sl/min], / Mass flow rate [kg/h], / Standard volume [Sm³], / Temperature [° C, ° F]. / With optional M-Bus: standard flow rate, mass flow rate, standard volume.
- IP protection type
- IP65 (connection housing)
- Type of protection
- ATEX category 3G and 3D (Zone 2 and 22) (optional)
- Sensor output
- 2 analog outputs 4 - 20 mA , linear, freely configurable / relay for quantity pulse / WiFi (optional) / M-Bus (optional)
