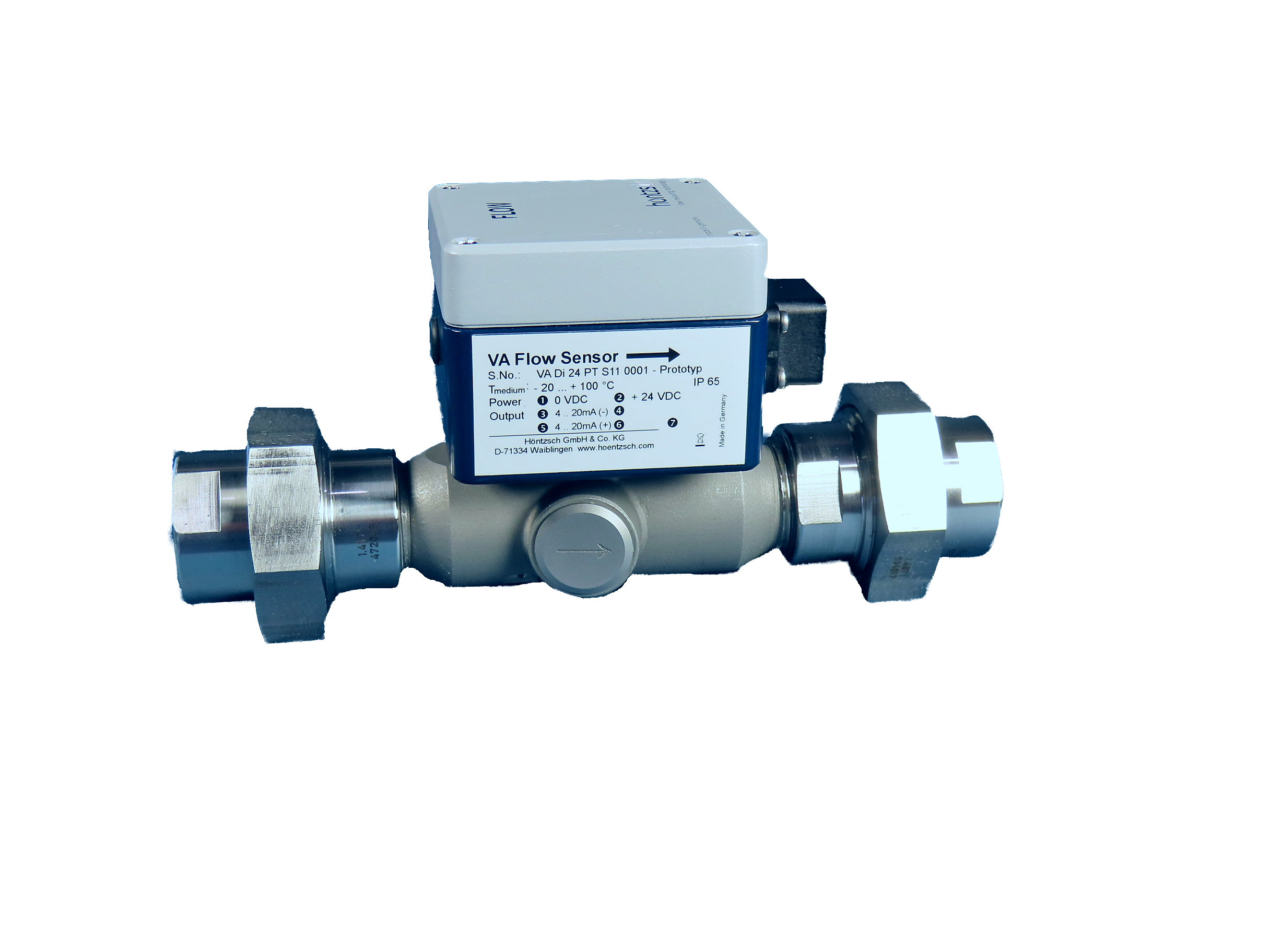

Vortex Measuring Tube VA Di ... ZG1
Measuring tube VA Di with inside diameter 25, 40, 50, 80 and 100 mm.
Details
Brand
Measuring Tubes

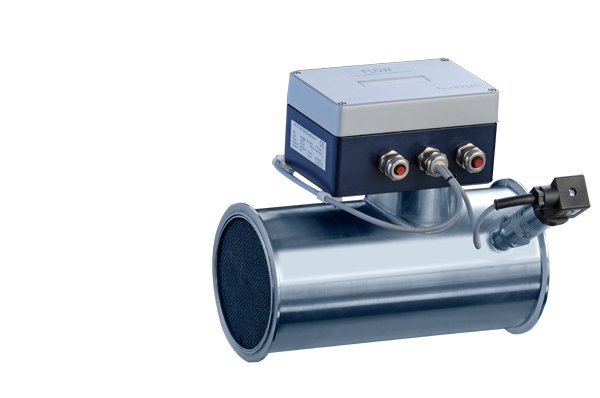

Vortex Measuring Tube ExactFlow II
Vortex measuring tube ExactFlow II - for test bench applications such as measuring of engine intake air flow rate and on measurements on turbocharger, valve and filter test stands.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Measuring tube diameter 50, 80, 100, 150 and 200 mm. UVATP transducer integrated in the connection housing for determining the gas mass flow of actual flow rate, working pressure and temperature. Tube design with cone/intermediate flange and connection with tension rings or chains.
Conform to e-CFR Part 1065.
For bidirectional dynamic measurements ExactSonic P is available as an alternative.
Specifications
- Measuring range
- 4 ... 4520 m³/h / 5 ... 5420 kg/h
- Pressure resistance
- up to 1.2 bar / 120 kPa overpressure
- Media temperature
- -20 ... +80 °C
- Media
- gases
- Displayed indicators
- gas mass flow m/t, standard flow rate NV/t, actual flow rate V/t, working pressure p, working temperature t
- IP protection type
- IP65 (connection housing)
- Sensor output
- 2 analog outputs 4 - 20 mA / gas mass flow proportional / gas mass pulse or limit value (configurable) / RS232 interface
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Measuring Tubes

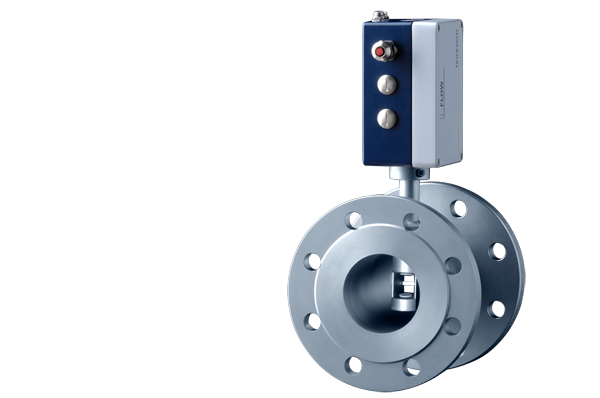

Vortex Measuring Tube VA Di ... ZG1 Ex-d ATEX
Measuring tube VA Di with inside diameter 25, 40, 50, 80 and 100 mm and Ex-d explosion proof connection housing.
Details
Details
Measuring Tubes

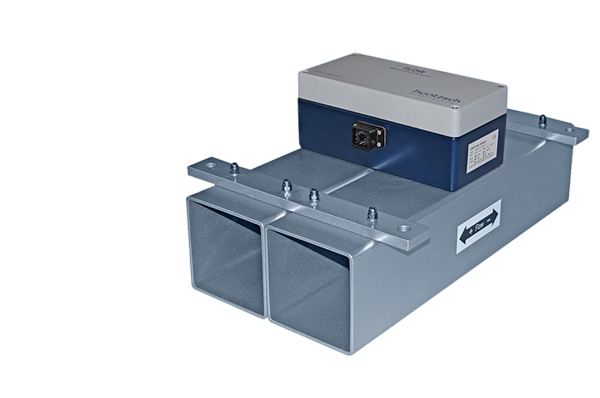

Vortex Measuring Tube VAR TwinPipe
