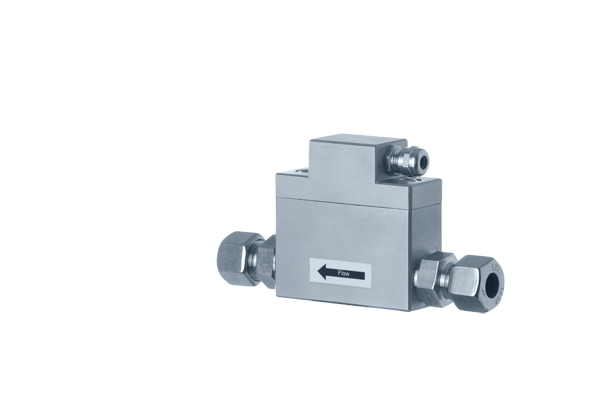

Thermal Measuring Tube TA Di - for separate evaluation unit
Measuring tube TA Di with inside diameter 8, 16, 21.6, 27.2, 35.9 and 41.8 mm. For connection to separate evaluation units like e.g. U10b, flowtherm NT or flowtherm Ex.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Material: stainless steel.
Suitable for fixed measuring of standard flow rate NV/t [m³/h], mass flow rate [kg/h], standard volume NV [m³] and standard flow velocity Nv [m/s] in clean, condensate and particle-free gases.
Specifications
- Measuring range
- 0.6 ... 12.350 l/min or 0.04 ... 741 m³/h
- Pressure resistance
- up to 16 bar / 1.6 MPa
- Media temperature
- -10 ... +140 °C
- Media
- air, (compressed air), nitrogen, oxygen, methane, natural gas, argon, hydrogen, propane, butane, carbon dioxide, helium, sulphur hexafluoride
- IP protection type
- IP65 (cable side)
- Type of protection
- with U10b: ATEX category 3G and 3D (zone 2 and 22) (optional) / with flowtherm Ex: ATEX category 2G (zone 1) (optional)
- Sensor output
- analog output 4 ... 20 mA flow proportional / relay for quantity pulse / RS232 interface
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
