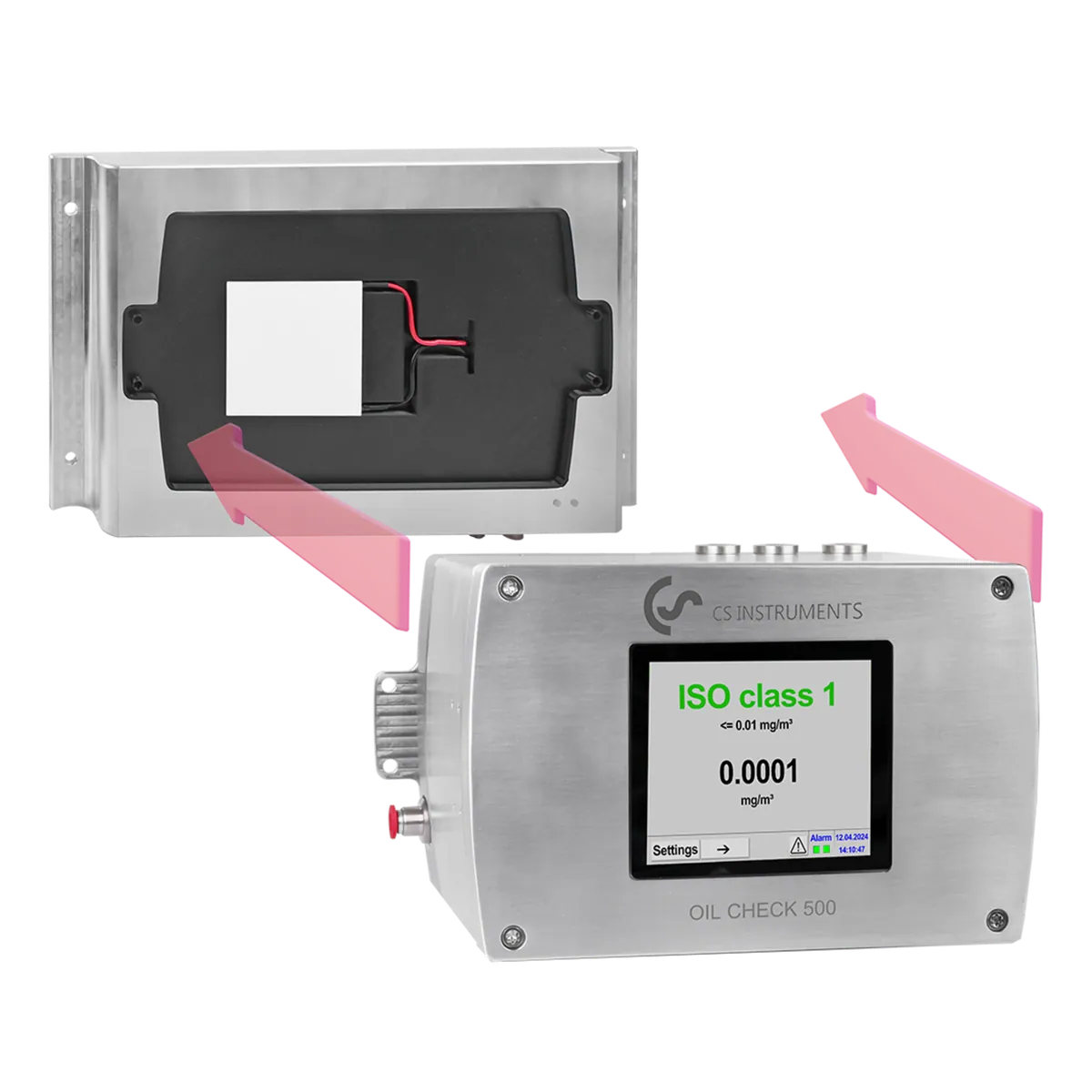

Maximum safety thanks to maximum sensitivity - continuous monitoring of the critical parameter vaporous residual oil content in accordance with ISO 8573. Advantages at a glance: Easy handling Shows the ISO class directly on the display Unique sensitivity for compressed air of the recommended oil vapor standard according to ISO 8573-5 Auto calibration through "Forced Pressure Variation" (patented) No downtime, sensor unit can be replaced on site Process reliability through monitoring of internal parameters Compact design
Download datasheet (PDF)Delivers early warning alerts to protect clean chambers from compressor lubrication carryover.
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
The high-precision, optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring compressed air quality class 1 (ISO 8573). The proper functioning of the filtration elements installed in the compressed air is monitored and any filter breakthroughs are detected immediately. Under the stationary version, it is wall-mounted and connected onto standard sample streams.

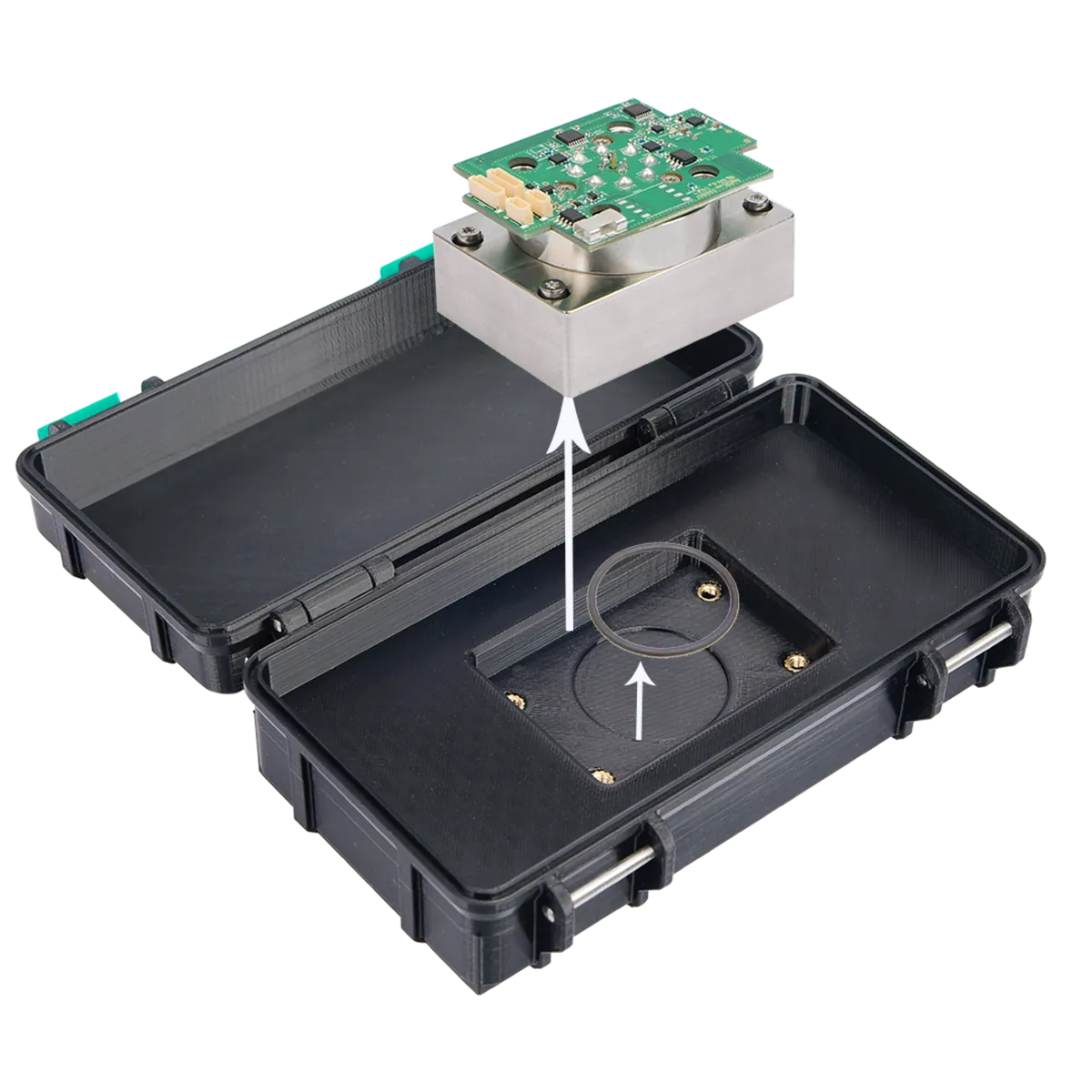

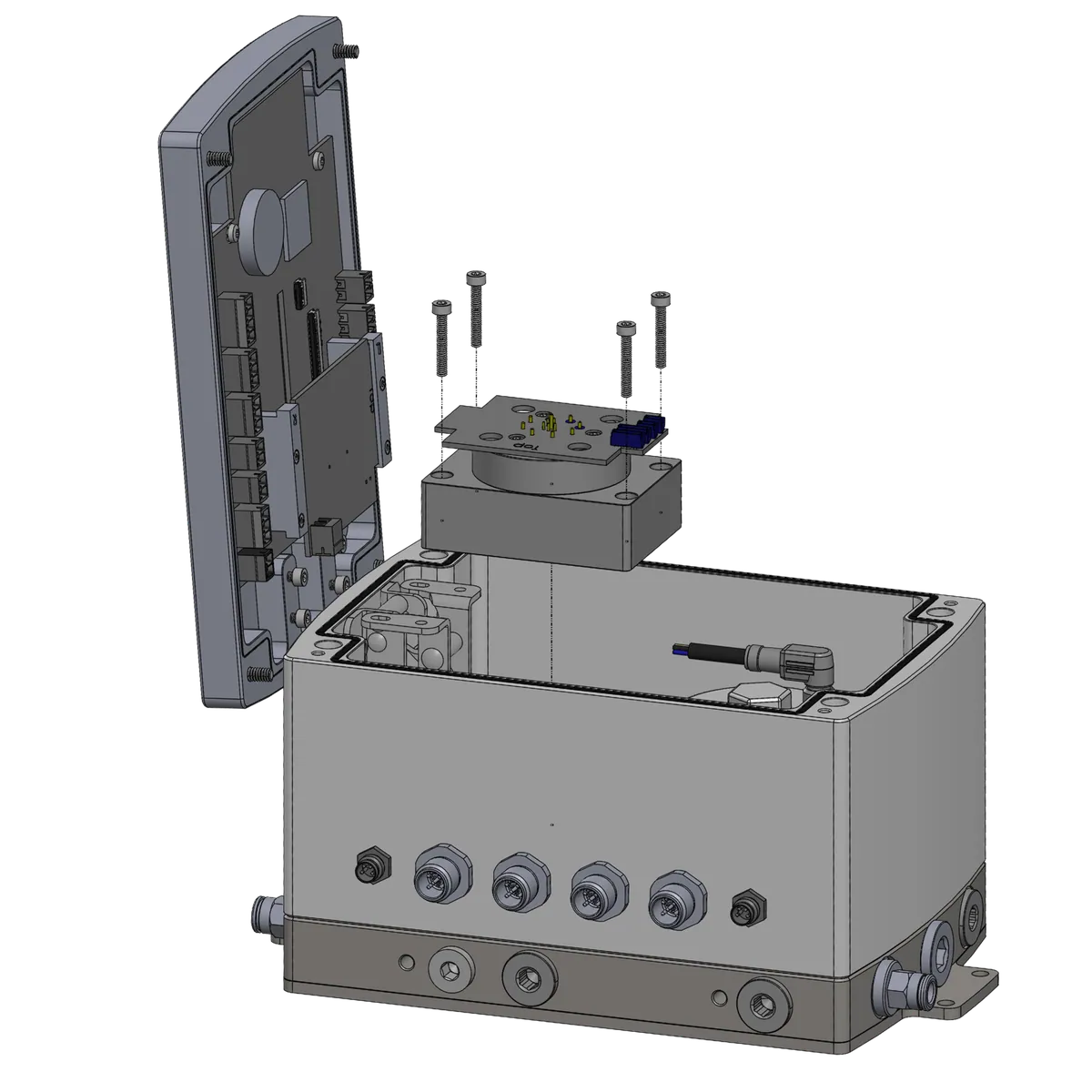

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations. "Forced Pressure Variation" for Long-term stable measurement results - auto-calibration: Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This method, which is protected by CS INSTRUMENTS, can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as activated carbon filters are required to generate zero air. The result is Low maintenance and Long-term stable Measuring. Service-friendly, no downtime: The sensor unit can be replaced by the customer on site. This eliminates the need to return the entire device for recalibration.
Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl. portable sampling system consisting of 2 m PTFE hose, quick coupling (oil and grease-free). DS 500 - The intelligent chart recorder At the heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.
Portable compressed air quality measurement, residual oil - particles - residual moisture - mobile transport carriage including wheels (external dimensions 0.68 x 1.06 x 0.41 m) (WxHxD) with permanently mounted components of the OIL CHECK 500, PC 400, FA 510. DS 500 - The intelligent chart recorder The heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the measurement data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.
