Portable Instruments

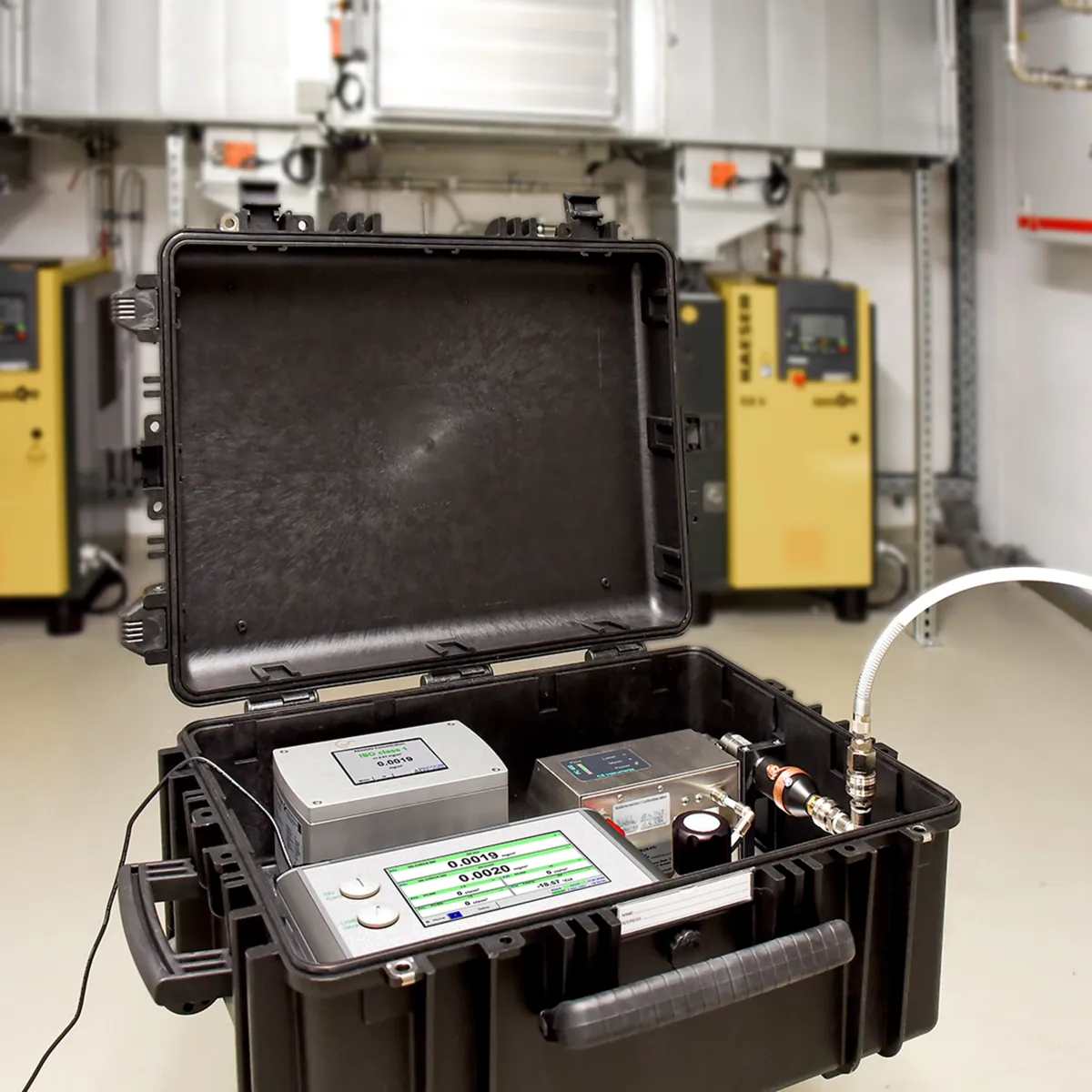

Compressed air quality – mobile "All in one solution"

Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl. portable sampling system consisting of 2 m PTFE hose, quick coupling (oil and grease-free). DS 500 - The intelligent chart recorder At the heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.

Download datasheet (PDF)

4 manuals1 document4 videos

  • Supplied and supported by GTi in Thailand
  • Calibration certificate on delivery
  • Selection, installation and commissioning help

Overview

Complete ISO 8573 mobile validation setup directly wheeled to any connection point.

Specifications

Mounted Sensors
OIL CHECK 500, PC 400, FA 510
Active Display
7" graphic touchscreen panel
External dimensions
607 x 275 x 475 mm
Inlet connection
2 m PTFE grease-free hose

Videos

Product walk-throughs, installation and set-up from the manufacturer.

Quick Start - Mobile compressed air quality measurement - All in one Solution
CS LeakCam 600 – Acoustic Camera for Compressed Air & Gas Leak Detection | Power Beam Forming
How to install a compressed air flow meter under pressure?
Which compressed air flow meter should be used at which point?

Documents & Downloads

Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.

Manuals & Guides 4

Data Sheets 1

More Compressed Air Quality Meters

View all 8
CS Instruments
Portable Instruments

OIL CHECK 500 Portable

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations. "Forced Pressure Variation" for Long-term stable measurement results - auto-calibration: Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This method, which is protected by CS INSTRUMENTS, can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as activated carbon filters are required to generate zero air. The result is Low maintenance and Long-term stable Measuring. Service-friendly, no downtime: The sensor unit can be replaced by the customer on site. This eliminates the need to return the entire device for recalibration.

Details
CS Instruments
Portable Instruments

Measuring compressed air quality – mobile transport carriage

Portable compressed air quality measurement, residual oil - particles - residual moisture - mobile transport carriage including wheels (external dimensions 0.68 x 1.06 x 0.41 m) (WxHxD) with permanently mounted components of the OIL CHECK 500, PC 400, FA 510. DS 500 - The intelligent chart recorder The heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the measurement data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.

Details
CS Instruments
Portable Instruments

Mobile particle counter PC 400 according to ISO 8573

The high-precision, optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring compressed air quality class 1 (ISO 8573). The proper functioning of the filtration elements installed in the compressed air is monitored and any filter breakthroughs are detected immediately. Under the mobile version it is supplied in a portable assembly.

Details
CS Instruments
Air Quality Meters

OIL CHECK 500

Maximum safety thanks to maximum sensitivity - continuous monitoring of the critical parameter vaporous residual oil content in accordance with ISO 8573. Advantages at a glance: Easy handling Shows the ISO class directly on the display Unique sensitivity for compressed air of the recommended oil vapor standard according to ISO 8573-5 Auto calibration through "Forced Pressure Variation" (patented) No downtime, sensor unit can be replaced on site Process reliability through monitoring of internal parameters Compact design

Details

Not Sure Which Instrument Fits?

Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
