Accessories

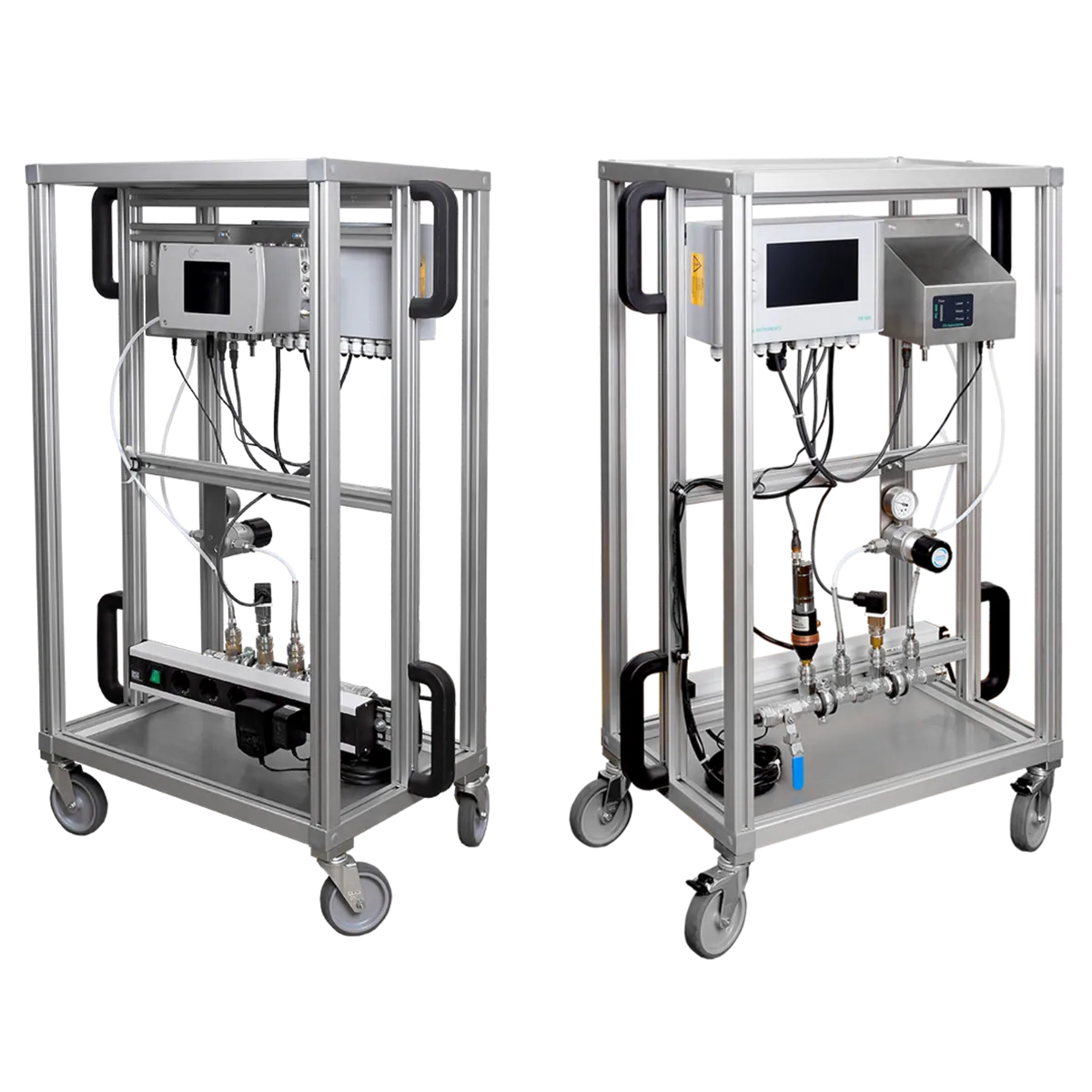

Mobile Transport Carriage on Wheels

Robust trolley frame to safely mobilize residual oil-analyzers on factory clean floors.

Download datasheet (PDF)

1 manual1 document

  • Supplied and supported by GTi in Thailand
  • Calibration certificate on delivery
  • Selection, installation and commissioning help

Overview

Specifications

Rating
Mobilization

Documents & Downloads

Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.

Manuals & Guides 1

Data Sheets 1

More Compressed Air Quality Meters

View all 8
CS Instruments
Portable Instruments

OIL CHECK 500 Portable

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations. "Forced Pressure Variation" for Long-term stable measurement results - auto-calibration: Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This method, which is protected by CS INSTRUMENTS, can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as activated carbon filters are required to generate zero air. The result is Low maintenance and Long-term stable Measuring. Service-friendly, no downtime: The sensor unit can be replaced by the customer on site. This eliminates the need to return the entire device for recalibration.

Details
CS Instruments
Portable Instruments

Compressed air quality – mobile "All in one solution"

Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl. portable sampling system consisting of 2 m PTFE hose, quick coupling (oil and grease-free). DS 500 - The intelligent chart recorder At the heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.

Details
CS Instruments
Portable Instruments

Measuring compressed air quality – mobile transport carriage

Portable compressed air quality measurement, residual oil - particles - residual moisture - mobile transport carriage including wheels (external dimensions 0.68 x 1.06 x 0.41 m) (WxHxD) with permanently mounted components of the OIL CHECK 500, PC 400, FA 510. DS 500 - The intelligent chart recorder The heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the measurement data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.

Details
