RTD Double Temperature Monitor - Wi-Fi OTA (B11R-200-OTA, B11R-500-OTA)

Overview

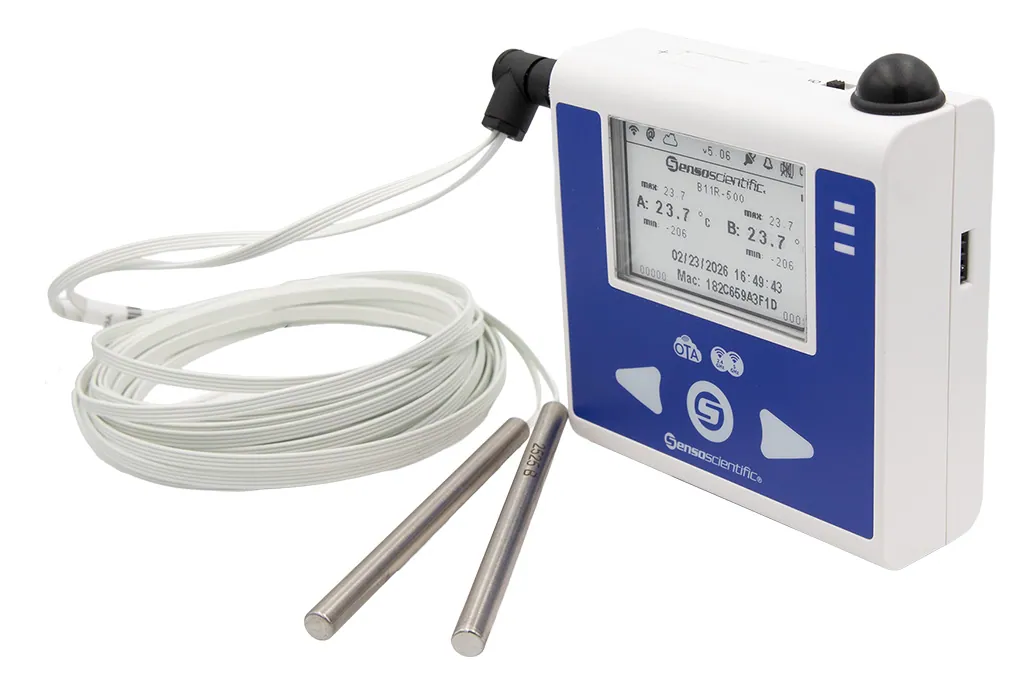

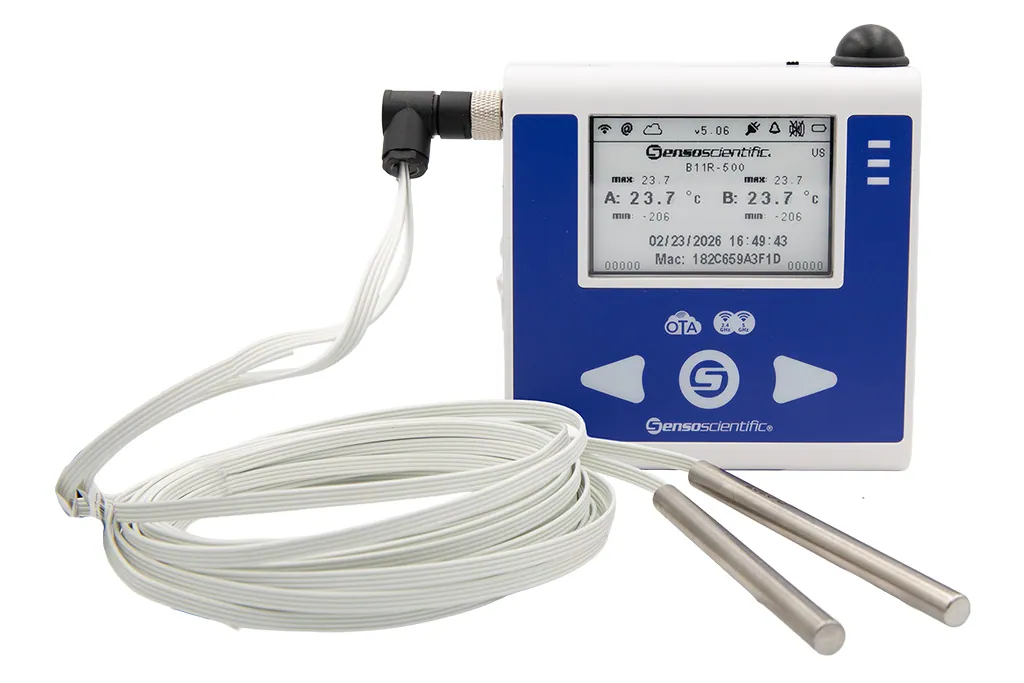

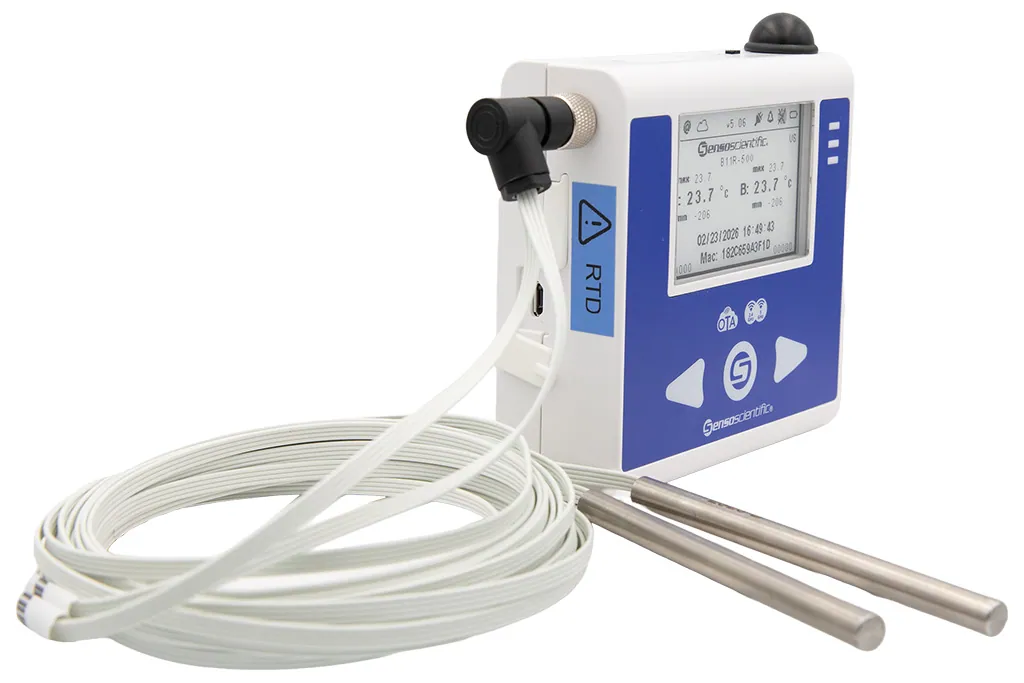

A dual-probe wireless temperature monitor using OTA technology to monitor temperatures between -40C and 70C (-40F to 158F). Available in single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity. SensoScientific Wi-Fi transmitters are high-speed wireless modules built for secure data collection, storage, and transmission using PEAPv0 enterprise security. They operate over standard 802.11a/b/g/n Wi-Fi networks (2.4 GHz and 5 GHz) using the TCP protocol and integrate with standard access points. Each transmitter monitors user-defined conditions and sends alerts via SMS, text, voice calls, pagers, cell phones, faxes, and emails. Recorded data is time-stamped and stored in a tamper-proof database.

• Onboard low-power E-Ink display; push button for real-time readings; dual power (battery and AC); true embedded Wi-Fi solution; NIST and A2LA accredited SNAP calibration; enterprise-wide scalability; device-level certificates; multi-LED connectivity status; FIPS compliant validated cloud; FDA 21 CFR Part 11 compliant; lowest total cost of ownership; no proprietary software.

Specifications

Probe Temperature Range

-40C to 70C (-40F to 158F)

Probe Accuracy

+/-0.5C

Node Ambient Operating Range

0C to 75C (32F to 167F); Up to 95% RH

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms

Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency

2.4 GHz and 5 GHz

Radio Protocol

802.11a/b/g/n, FCC, IC/ISED, ETSI/CE, MIC, and SRRC Certified

Enterprise Security

2.4 GHz - PEAPv0 with EAP-MSCAPv2 (PEAP); 5 GHz - EAP Fast, EAP PEAPV0/1, EAP PEAPV0 TLS, EAP PEAPV1 TLS EAP LS, EAP TLS, EAP TTLS TLS, EAP TTLS MSCHAPv2

Housing

ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting

Zip Tie Mount Hooked with Screw Holster Wall Mount or Double-Sided Tape

Power Supply

(4) 1.5V AA Batteries (Lithium or Alkaline); Optional AC/DC Power Supply (UL Certified)

Battery Life

1 Year

Dimensions

Height 4.25" (108mm); Width 3.88" (98mm); Length 1.38" (35mm)

LDAP

Single Sign-on Capability

Certificates

Device-level Certificates

Warranty

1-Year Warranty
