Water Flow Meters
1” GMDM-I Multi Jet Cold Water Meter, Q3 = 6.3
WRAS and MID approved multi-jet cold water meter with a dry dial and magnetic drive, rated to 50 °C.
Details
Brand
1 / 2Water Flow Meters

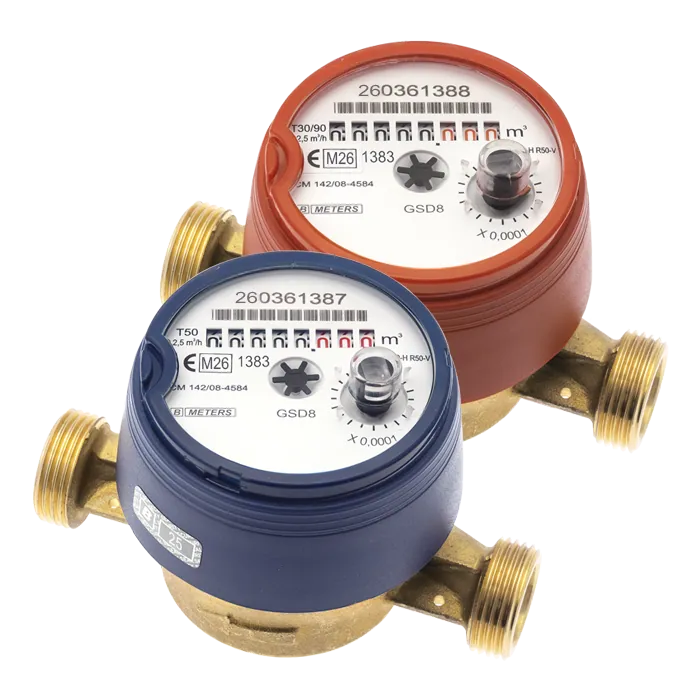

½” GSD8-RFM Single Jet Cold Water Meter, Q3 = 2.5
WRAS and MID approved single-jet cold water meter with an 8-roll direct-reading counter, rated to 50 °C.
Part no.GSD8-RFM/15SJC
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Anti-tamper ring, 360° rotating lid, unions and washers included, and ready for LoRaWAN remote reading.
- ½” (15mm) GSD8-RFM Single Jet Cold Water Meter
- 110mm length
- Q3 = 2.5 m3/hr
- WRAS and MID approved
- Unions / washers included
- Direct reading on 8 numeric rolls
- 360° rotating dry dial
- LoRaWAN compliant if selected
Specifications
- Accuracy
- – R100-H ↑ R50-VH →
- Max Temperature
- 50°C (ISO 4064)
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
Data Sheets 1
Certificates & Approvals 1
Water Flow Meters
1” GMDM-I Multi Jet Hot Water Meter, Q3 = 6.3
WRAS and MID approved multi-jet hot water meter with a dry dial and magnetic drive, rated to 90 °C.
Details
Water Flow Meters
1¼” GMDM-I Multi Jet Cold Water Meter, Q3 = 10
WRAS and MID approved multi-jet cold water meter with a dry dial and magnetic drive, rated to 50 °C.
Details
Water Flow Meters
1¼” GMDM-I Multi Jet Hot Water Meter, Q3 = 10
WRAS and MID approved multi-jet hot water meter with a dry dial and magnetic drive, rated to 90 °C.
Details
Not Sure Which Instrument Fits?
Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
