Water Cut Monitors

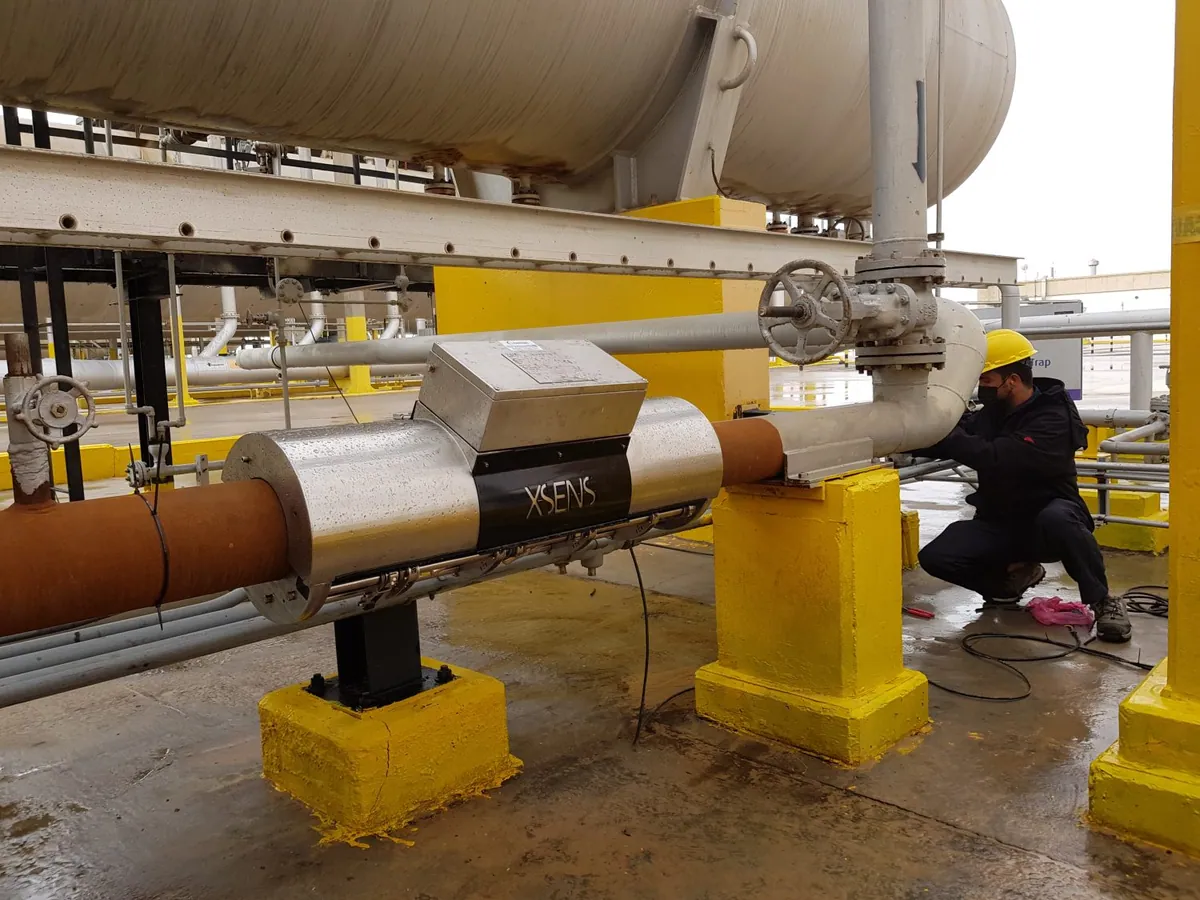

XACT Clamp-On Water Cut Meter

Clamp-on ultrasonic water cut meter, 0-100 % water in oil at ±1 % absolute, from outside the pipe.

4 documents

  • Supplied and supported by GTi in Thailand
  • Calibration certificate on delivery
  • Selection, installation and commissioning help

Overview

Specifications

Installation support
Clamp-on pipe assessment, sensor placement and system setup
True non-intrusive design
Clamp-on sensors install externally — no pipe cutting, process shutdown, or intrusion into the media
Full 0–100% water cut coverage
Reliably measures any water-in-oil ratio with ±1% absolute accuracy
Rapid installation
Mounted and commissioned in 2–3 hours, even on live pipelines or in retrofit projects
No straight-run requirement
Accurate even when installed near bends, valves, reducers, or other disturbed flow profiles
Hazardous area certified
ATEX and IECEx approval for Zone 1 and Zone 2 installations
Maintenance-free operation
External, corrosion-proof design avoids clogging, erosion, and scaling from process fluids
Expandable monitoring
Combine with XSENS Flow & Fraction Meter for net oil, water, and flow rate outputs
Long service life
20+ year design with robust transducers suitable for oil & gas environments

Documents & Downloads

Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.

Data Sheets 1

Brochures & Application Notes 2

More Documents 1

More Water Cut & Density Monitors

View all 4

Not Sure Which Instrument Fits?

Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
