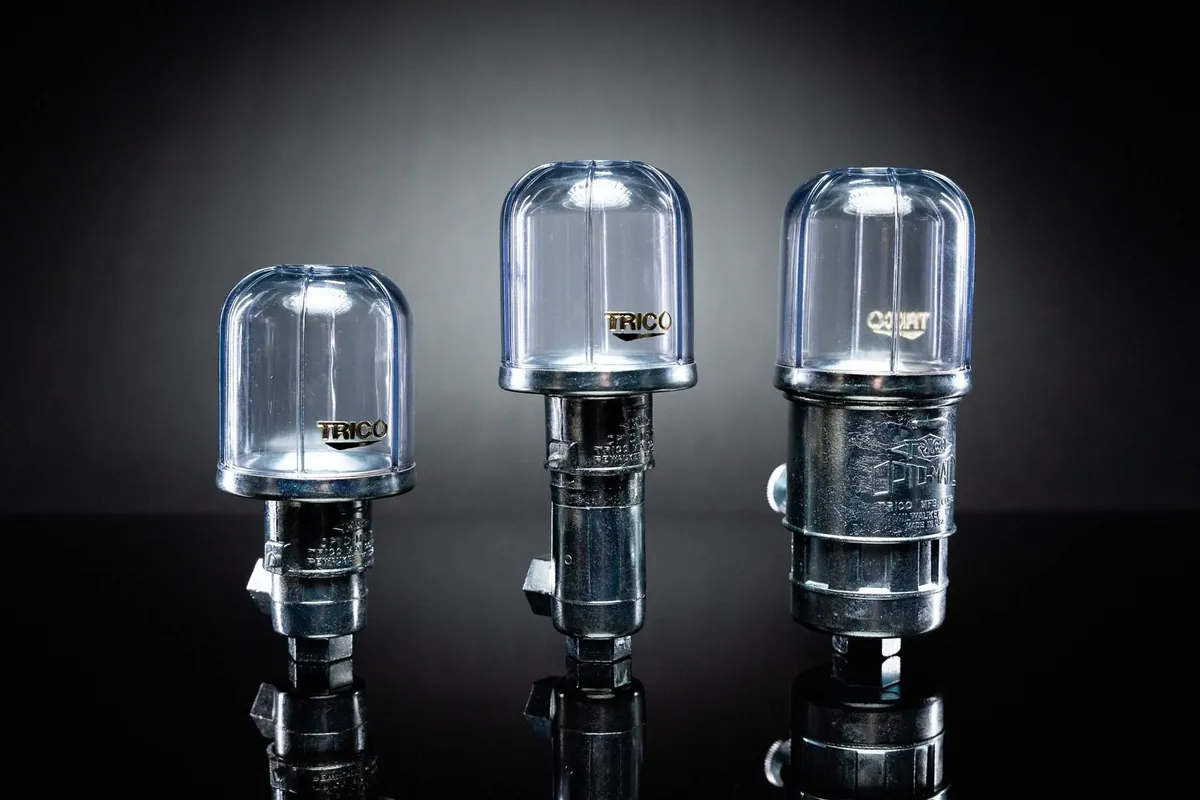

¼” NPT 30052 Opto-Matic Constant Level Oiler, 2 oz
Constant-level oiler that keeps pump bearing housings and gearboxes at the right oil level automatically.
Part no.30052
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
The one-piece glass reservoir cannot leak air and overfill, and the level setting is adjustable.
- High strength, transparent, ribbed plastic reservoir provides long life and impact resistance
- Adjustable level setting allows use in many applications
- Multiple air vent slots provide for proper functioning at all times
- Large surge chamber (LS, EH, and EHB models) prevents overflow of oil during machine start-up or shut-down
- Side and bottom connections for simplified installation
Specifications
- Max. Operating Temperature
- 165°F Continuous
- Reservoir
- Butyrate Plastic
- Casting
- Zinc Die Cast
- Finish
- Bright Zinc Plated
- Internal Parts
- Zinc Plated Steel
- Model Type
- E
- Capacity
- 2 oz.
- Connection
- ¼” NPT
Videos
Product walk-throughs, installation and set-up from the manufacturer.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
More Documents 1
