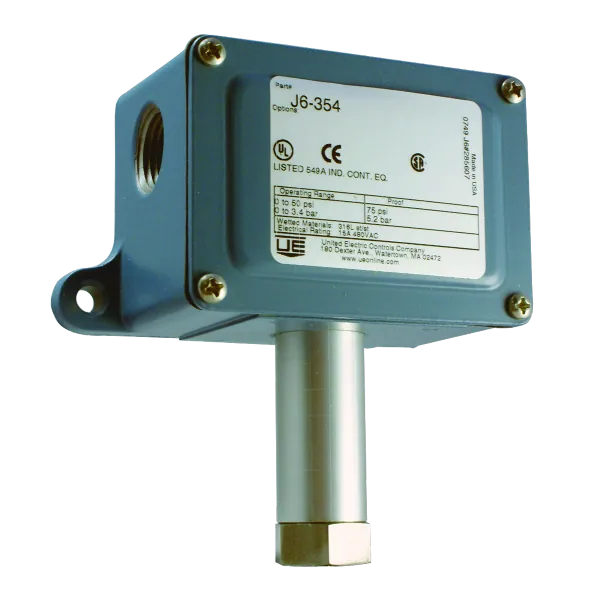

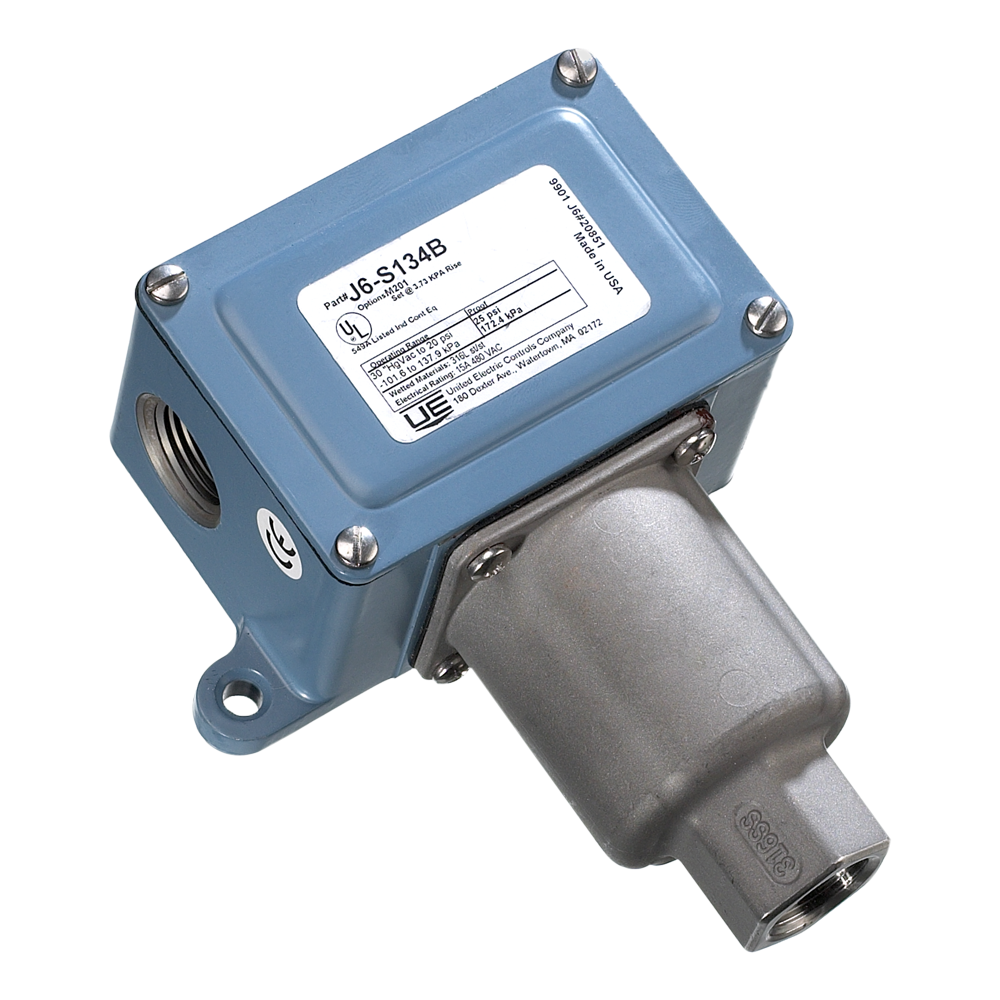

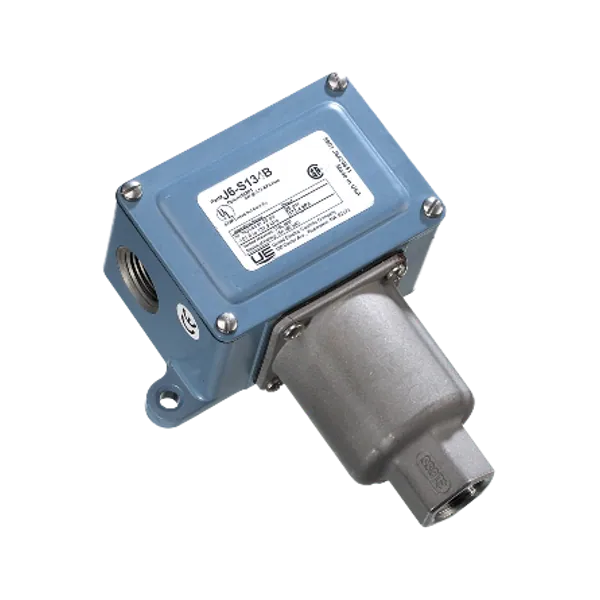

J6 Series Pressure Switch
Cost-effective general purpose pressure switch with metal bellows sensor and SPDT output, NEMA 4X.
Part no.J6 Series
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
- Adjustable deadband models for precise on-off control
- Adjustable ranges of 30″ Hg vacuum to 6000 psi
- Sealed Metal Bellows Sensors / Opposing bellows design
- Welded 316 Stainless Steel Sensors
- Gasketed Die-Cast Aluminium Enclosure with Epoxy Coating
- Single Switch Output
- Designed to meet Enclosure Type 4X (with watertight conduit fitting)
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
Certificates & Approvals 2
More Documents 6
- 8060 Type J6, Model 680PDF · from the manufacturer
- 10522 Type J6, Models 610, 612 & 614PDF · from the manufacturer
- 4958 Type J6, Models 354 to 364PDF · from the manufacturer
- 8658 Type J6, Models 258 to 274PDF · from the manufacturer
- 8083 Type J6, Models 218 to 230PDF · from the manufacturer
- 4489 Type J6, Models 136 to 160, S136B to S164BPDF · from the manufacturer
