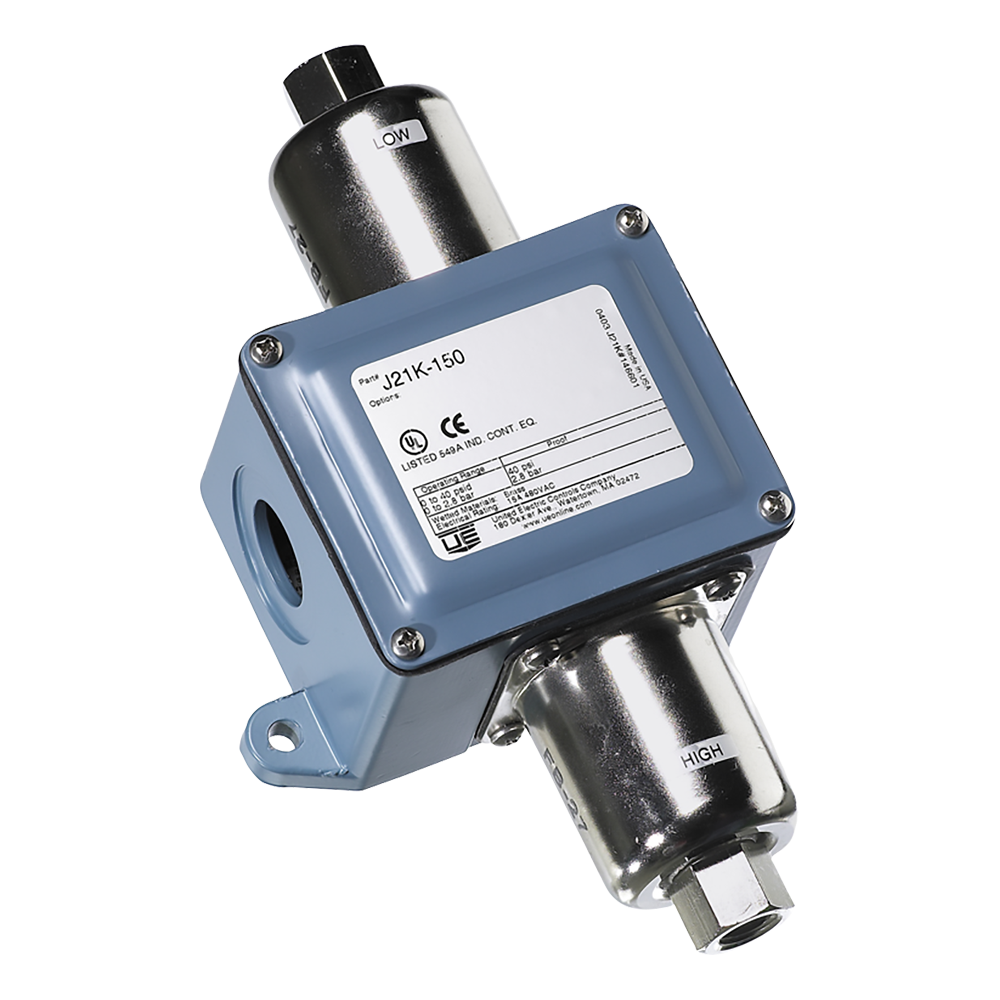

J21K Series Differential Pressure Switch
Sensitive differential pressure switch with opposed bellows, for alarm and shutdown duty.
Part no.J21K Series
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
- Rugged, NEMA 4x, epoxy coated enclosure
- Sealed metal bellows sensors
- SPDT switch output
- Welded 316 stainless steel or brass sensors
- Optional ATEX and Rostechnadzor (GOST-R) intrinsic safety compliance
- UL listed and cUL certified
- Unique isolated sensor design
Specifications
- Adjustable Ranges
- 30 “Hg Vac to 90 psid (-1 bar Vac to 6,2 bar)
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
Data Sheets 2
Certificates & Approvals 10
- 10, 12, 24, 54, 100, 117, 120, 400, J6, J21K, J40, Excela, One Series, One Series Safet…PDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – UKCA Ex ia Certificate (UK)PDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – EAC Ex ia CertificatePDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – UKCA Ex ia Declaration of Conformity (UK)PDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – CE Declaration of Conformity EMC (Europe)PDF · from the manufacturer
- J6, 10, 12, J21K, 100, 117, 120, 400 Series – CCC Ex ia Certificate (China)PDF · from the manufacturer
More Documents 5
- 8833 Type J21K, Models 357PDF · from the manufacturer
- 9813 Type J21K, Models 254PDF · from the manufacturer
- 9384 Type J21K, Models 232PDF · from the manufacturer
- 9704 Type J21K, Models 140 & 150, S140B & S150B, 16020 & 16021PDF · from the manufacturer
- 10104 Type J21K, Models 127 & S127BPDF · from the manufacturer
