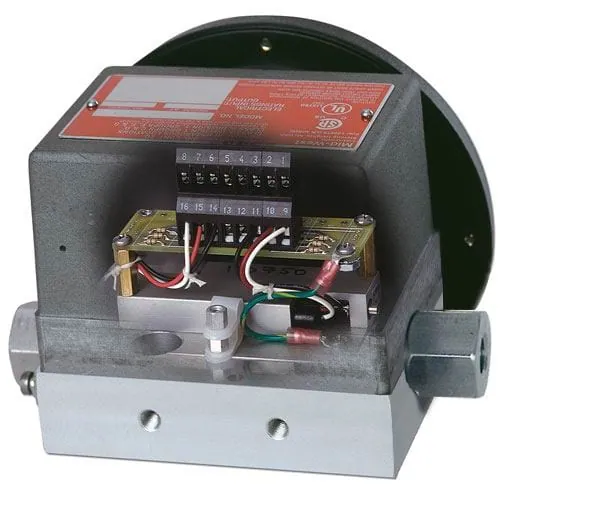

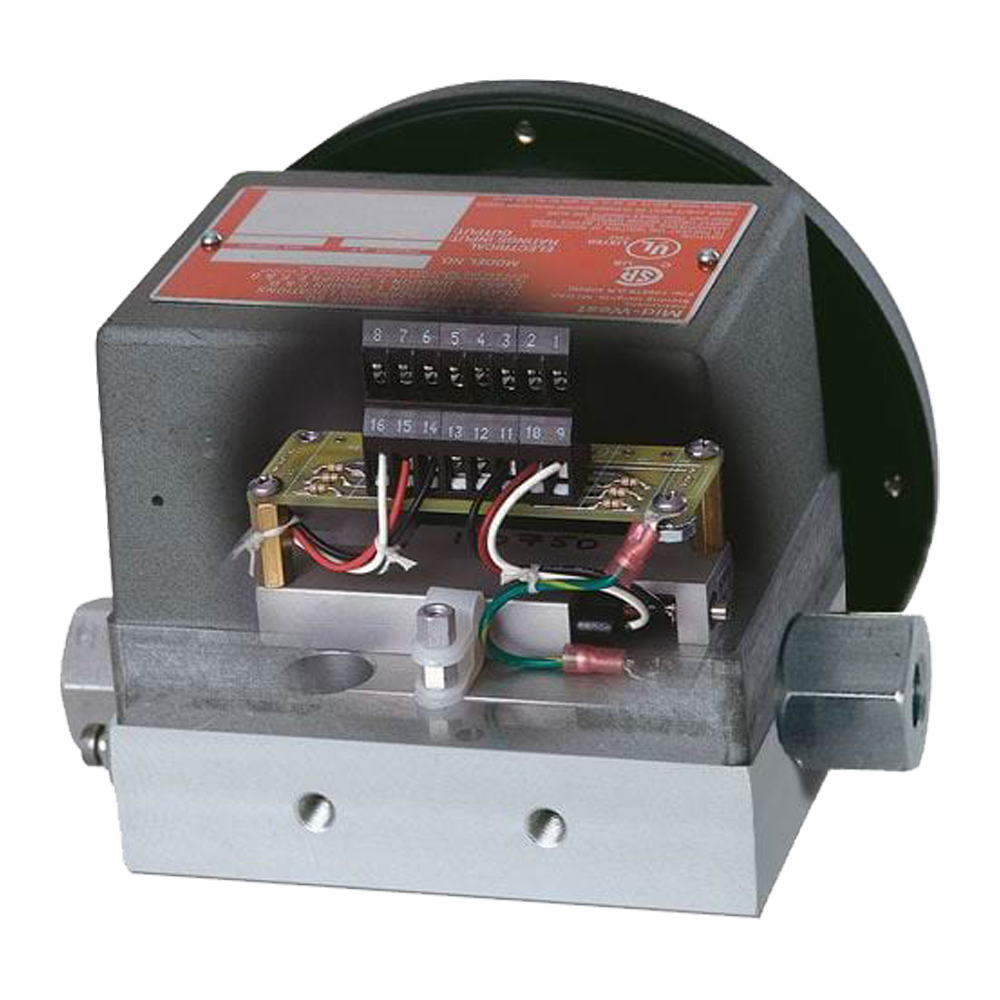

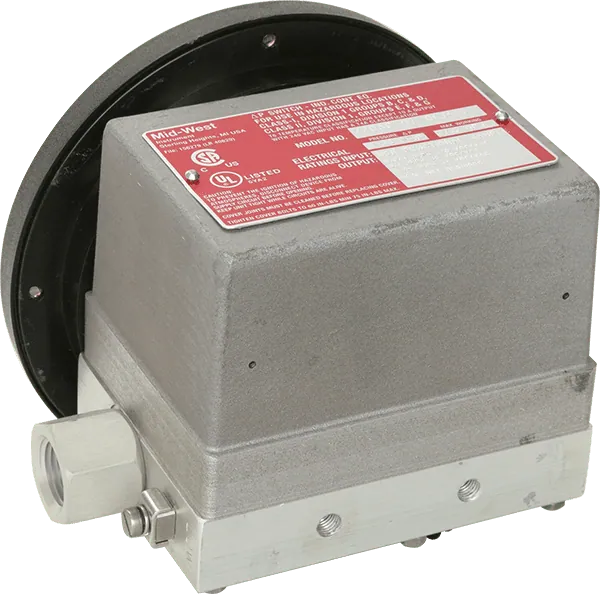

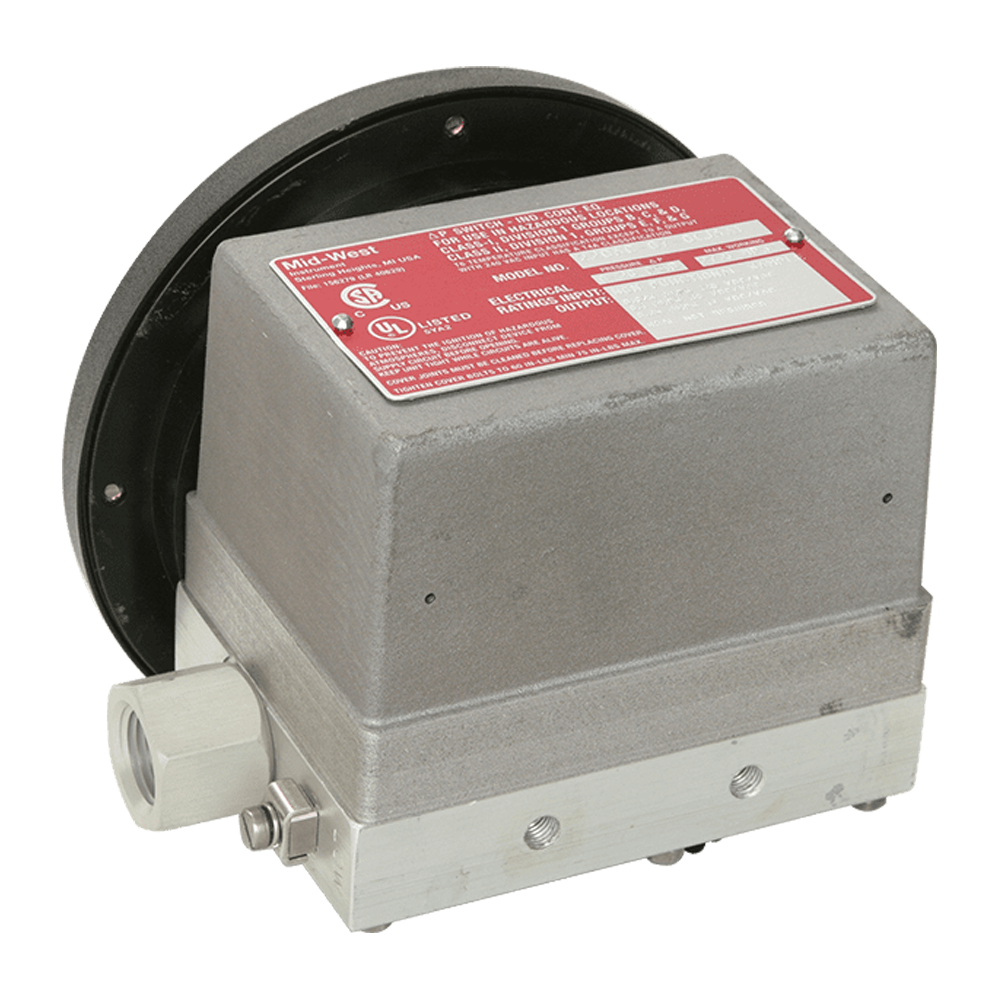

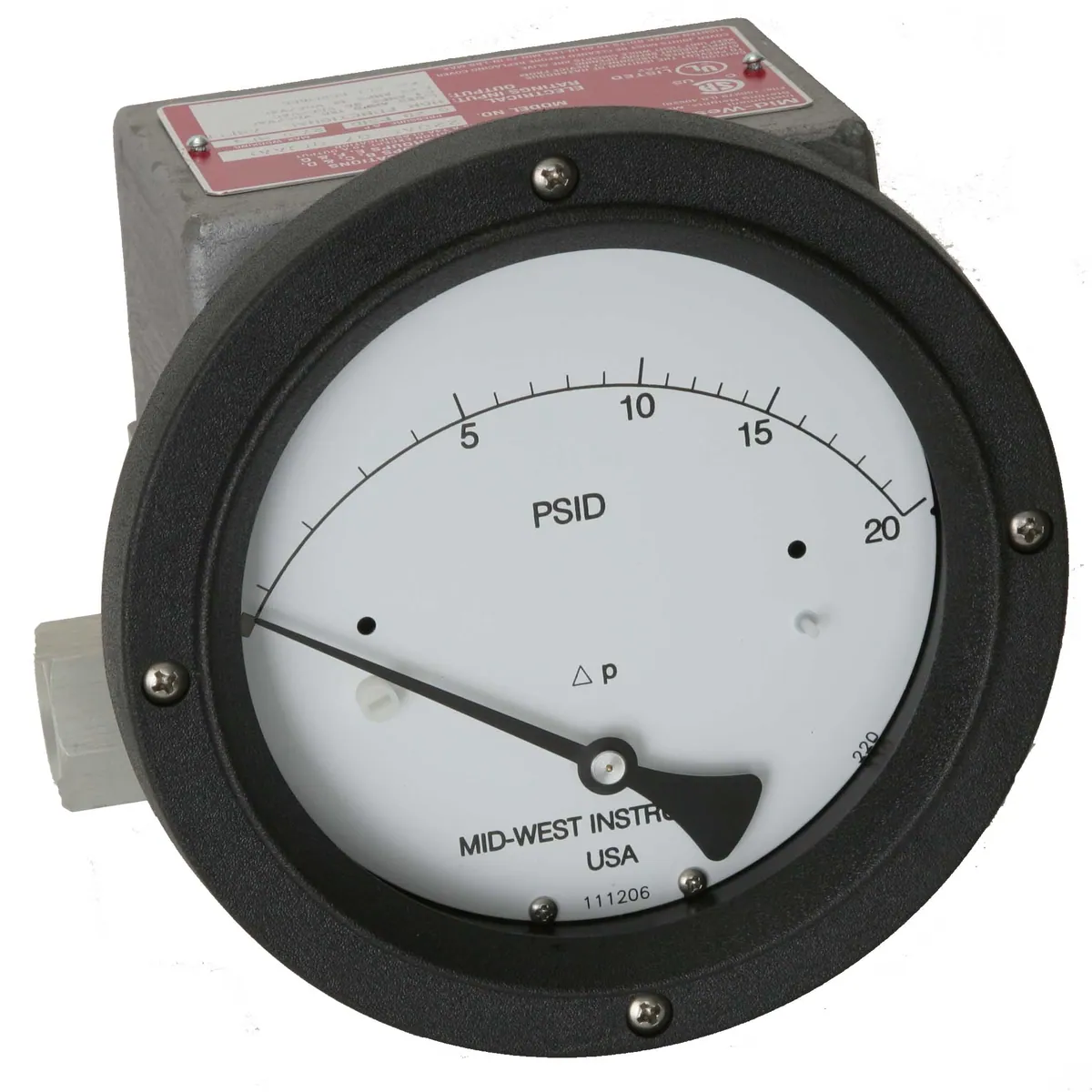

Model 220 Piston Type Flame Proof Differential Pressure Gauge, 5 – 100 PSID
Flameproof piston differential pressure gauge with ATEX approval for hazardous areas.
Part no.Model 220
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
- ATEX approved – Ex d IIB + H2; Ex tb IIIC IP6X
- Simple, rugged, and compact piston-type design for the sensing element
- Weather-resistant and corrosion-resistant construction
- Shatter-resistant lens
- Over-range protection for both high-over-low and low-over-high conditions
- Options available for terminal strip switch and transmitter
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Data Sheets 2
Drawings & Software 1
Certificates & Approvals 1
