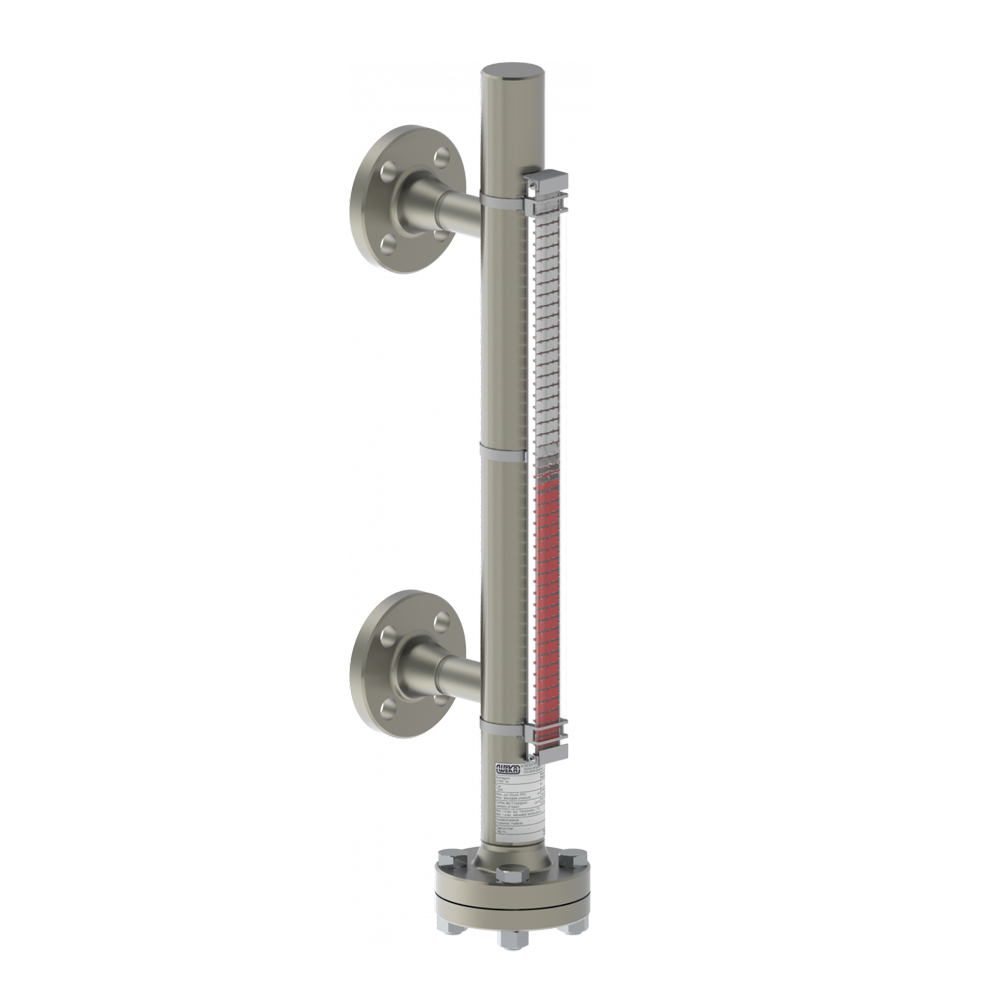

Weka Magnetic Visual Level Indicator / Gauge

Overview

• SmartLine – a VLI with a tube diameter of an inch. The “small, clever” magnetic level indicator for pressures up to 50 bar (5 Mpa)
• StandardLine – Whether water or heating oil, whether toxic or explosive (ATEX / IECEx) – for pressures up to 50 bar and temperatures up to 400, for WEKA devices, all this is standard.
• HighPressureLine – The standard for operating pressures of 50 bar to 200 bar and operating temperatures up to 400°C
• PetroLine – When special materials, such as 904L, 6Mo or similar, are required for their resistance to aggressive media, the pipes can often be acquired only in dimensions pursuant to ASME B36.10 (schedule dimensions). This is where the PetroLine comes in. With pressure ratings from 20 bar to 150 bar (2 MPa to 15 MPa) as standard. The name is indicative of the industry served.
• LowDensityLine – A product designed to meet the specific needs of the petrochemical and refrigerant industry.
• Screwed or flanged (ANSI or DIN) process connections
• Pressures up to 630 bar
• Temperatures to 450°C
• Minimum S.G. 0.30
