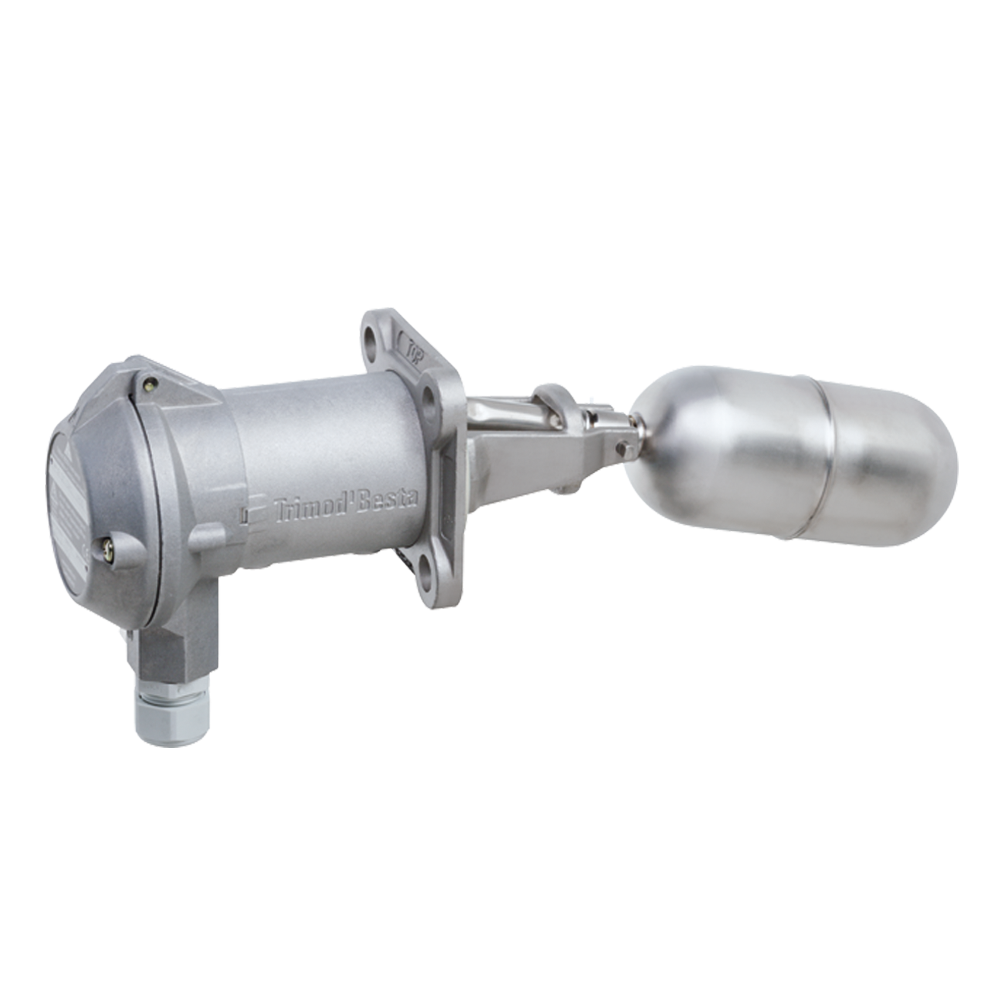

Besta DB0104 Float Level Switch
Top-mounted float level switch for level alarms or two-point pump control, in a modular switch, flange and float build.
Part no.DB0104
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Handles liquids up to 300 °C at PN16 in marine and industrial service.
- IP67 rated

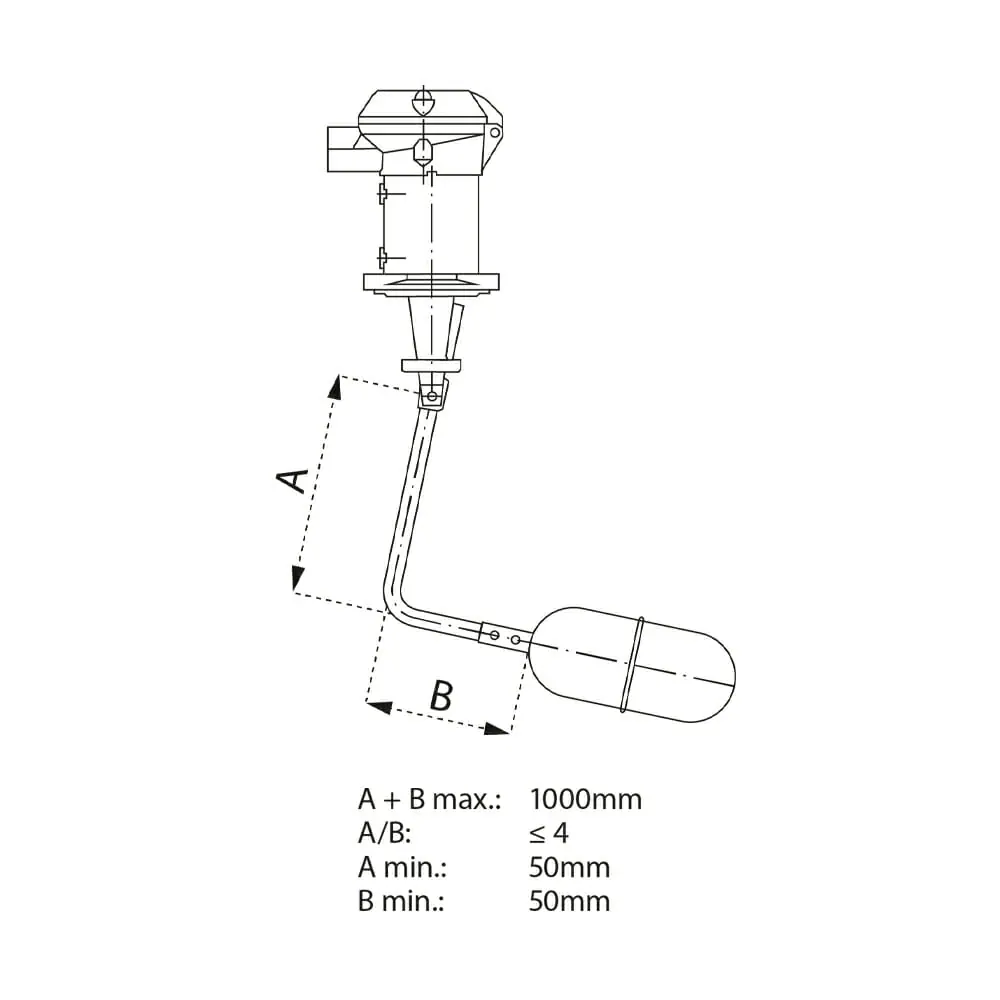

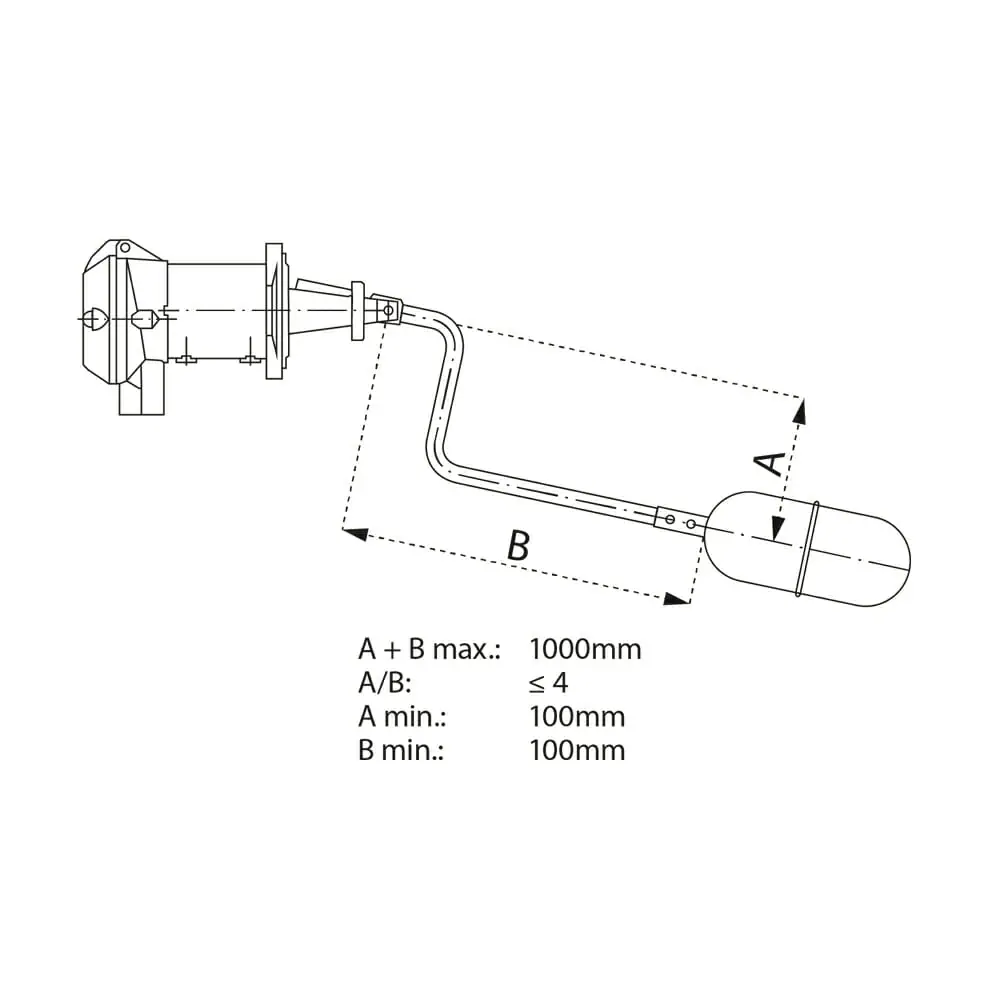

- Replaceable float design / rod extension option can be added
Specifications
- Nominal pressure
- PN 25 according to EN/DIN
- Operating temperature
- 0 to 300°C
- Ambient temperature
- 0 to 70°C
- Density of the liquid
- min. 0.7 kg/dm³
- Operating differential
- 12 mm, fixed
- Westside material
- Stainless steel (CrNiMo)
- Housing material
- Seawater resistant die cast aluminium
- Flange
- square 92 x 92 mm PCD
- Switch element
- Microswitch SPDT with gold contacts which can be used in low voltage applications with a suitable ATEX barrier
- Switch rating
- 250 VAC, 5 A / 30 VDC, 5 A
- Overall length (tank)
- 226 mm
- Safety Integrity Level (SIL)
- SIL 1 (Type AA 01 041: SIL 2)
