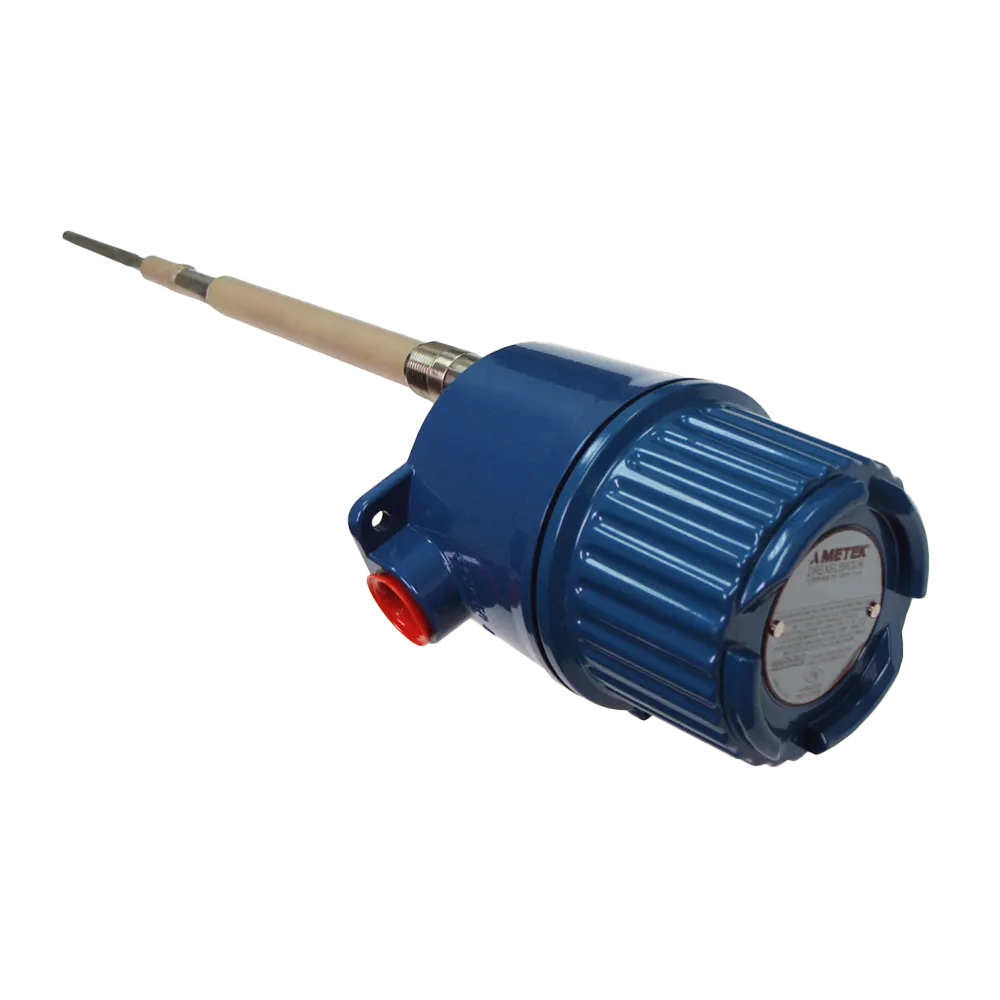

Z‑Tron IV Level Switch
Rugged one-piece RF admittance switch for on / off point level detection.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
No moving parts, so it resists jamming and wear.
Specifications
- RF admittance technology
- Provides accurate point‑level switching with no moving parts
- Cote‑Shield protection
- Ignores coatings, residue, dust or build‑up on the sensing element
- Maintenance‑free design
- Requires no calibration or routine cleaning
- Compact one‑piece construction
- Ideal for simple insertion via a single ¾″ vessel connection
- DPDT relay output
- Dry-contact switch for alarms, valves or control systems
- Wide process compatibility
- Operates reliably in corrosive, sticky or insulating media
- Operating range
- −40 °C to +63 °C, up to 1,000 psi (probe-dependent)
- Simple field calibration
- Easily set setpoint via potentiometer on the electronic unit
