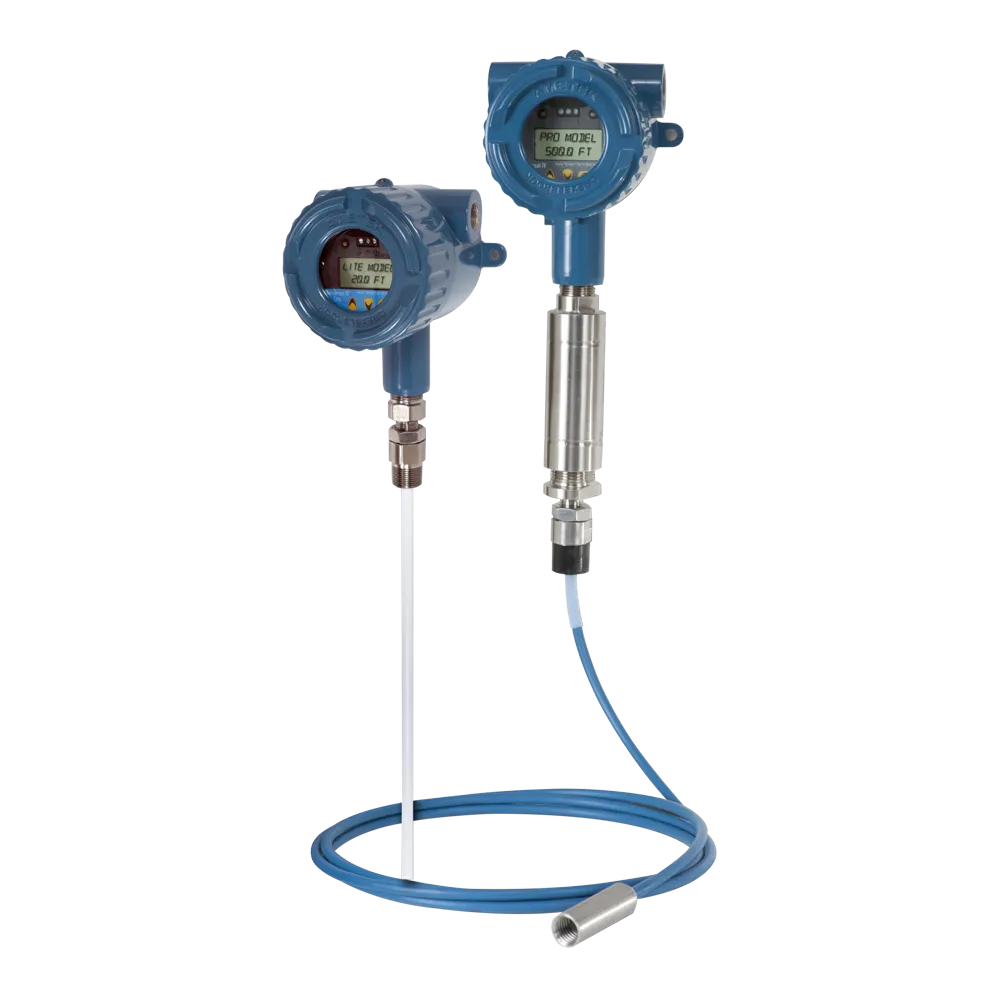

Universal V Level System
Continuous RF admittance level transmitter with Cote-Shield coating immunity and built-in diagnostics.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Keeps reading through sticky build-up on the probe.
Specifications
- Continuous RF admittance output
- Provides real-time level measurement in liquids, slurries or interface zones
- Cote‑Shield coating immunity
- Unaffected by residue or deposits on sensing probes
- Built‑in diagnostics
- AutoVerify™ continuous self-test and Manual Certify™ validation
- Flexible output options
- 4–20 mA HART® loop or dual SPDT relay control outputs
- Safety integrity available
- SIL2 certified; SIL3 via redundant channel configuration
- Density & temperature compensation
- Ensures accurate readings under changing media conditions
- Customisable probe design
- Multiple probe lengths and materials for different vessel sizes and fluids
- No moving parts
- Minimises maintenance, enhances reliability in demanding environments

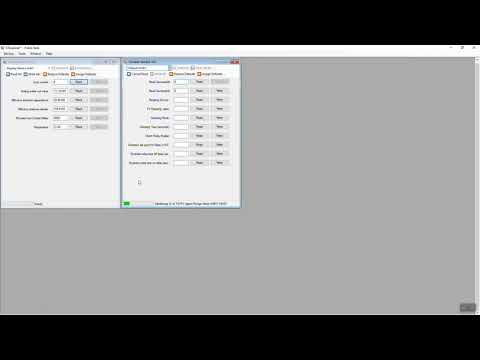

Videos
Product walk-throughs, installation and set-up from the manufacturer.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 4
Data Sheets 2
Brochures & Application Notes 4
- Application note non contact sensing with rf proximity level systemPDF · from the manufacturer
- Application note level measurement with beer foamPDF · from the manufacturer
- Application note over boil issues in the brewing industryPDF · from the manufacturer
- Application note measuring level of condensed milk in evaporatorPDF · from the manufacturer
Certificates & Approvals 5
- Universal V Approval Certificate FMPDF · from the manufacturer
- Universal V Approval Certificate IECEXPDF · from the manufacturer
- Universal V Approval Report FMPDF · from the manufacturer
- Universal V Approval Certificate ATEXPDF · from the manufacturer
- Universal V Approval Control Drawing FM / FMcPDF · from the manufacturer
