1 / 2RF Admittance

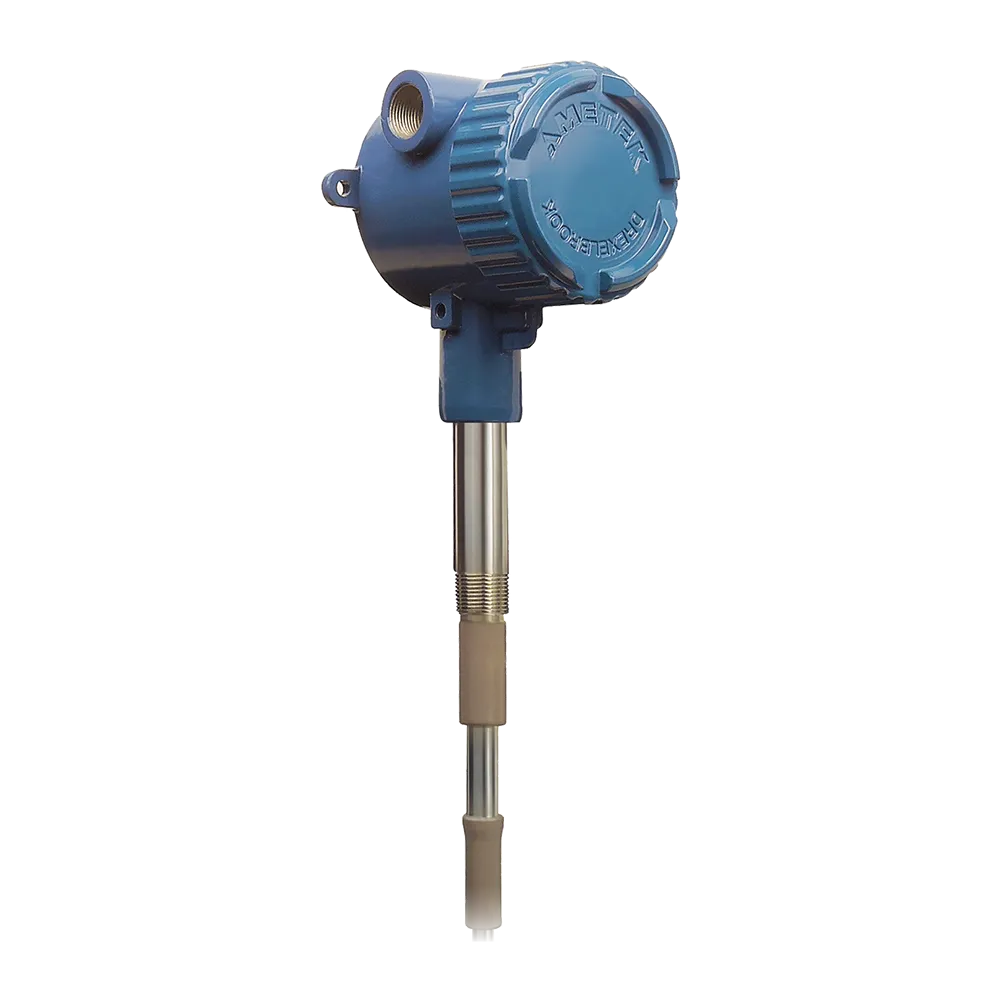

ThePoint Loop Powered Level Switch
RF admittance point level switch for liquids, slurries, solids and interfaces, in line or loop powered versions.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
No moving parts and no routine maintenance.
Specifications
- RF admittance technology
- Accurate point‑level switching with no moving parts for total reliability
- Auto‑calibration
- Simply apply power—no manual setpoint adjustments needed
- Cote‑Shield protection
- Ignores coatings, build‑up or residue on the probe
- Maintenance‑free operation
- Eliminates wear and jamming from mechanical switches
- Loop‑powered supply
- Operates on 2‑wire 4–20 mA loop, no separate mains required
- DPDT relay output
- Dry‑contact switching (5 A at 120 VAC / 2 A at 230 VAC)
- Wide application range
- Effective in liquids, slurries, solids and interface media
- Extreme environment rated
- Probe‑rated up to +260 °C and 69 bar depending on configurations
- Remote or integral electronics
- Flexible mounting to suit vessel configuration
Videos
Product walk-throughs, installation and set-up from the manufacturer.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
Data Sheets 2
Brochures & Application Notes 4
- Application note molasses inventory in large storage tanksPDF · from the manufacturer
- Application note fill and empty control in seafood processing tankPDF · from the manufacturer
- Application note meat packing plant high pressure cook kettlePDF · from the manufacturer
- Application note batch make up control for food processing facilitiesPDF · from the manufacturer
Certificates & Approvals 10
- ThePoint Loop Powered Bid SpecPDF · from the manufacturer
- ThePoint Loop Powered Approval Certificate ATEXPDF · from the manufacturer
- ThePoint Loop Powered Approval Certificate CE MarkPDF · from the manufacturer
- ThePoint Loop Powered Approval Certificate CSAPDF · from the manufacturer
- ThePoint Loop Powered Approval Certificate TestSafePDF · from the manufacturer
- 3A Approval CertificatePDF · from the manufacturer
More Documents 1
