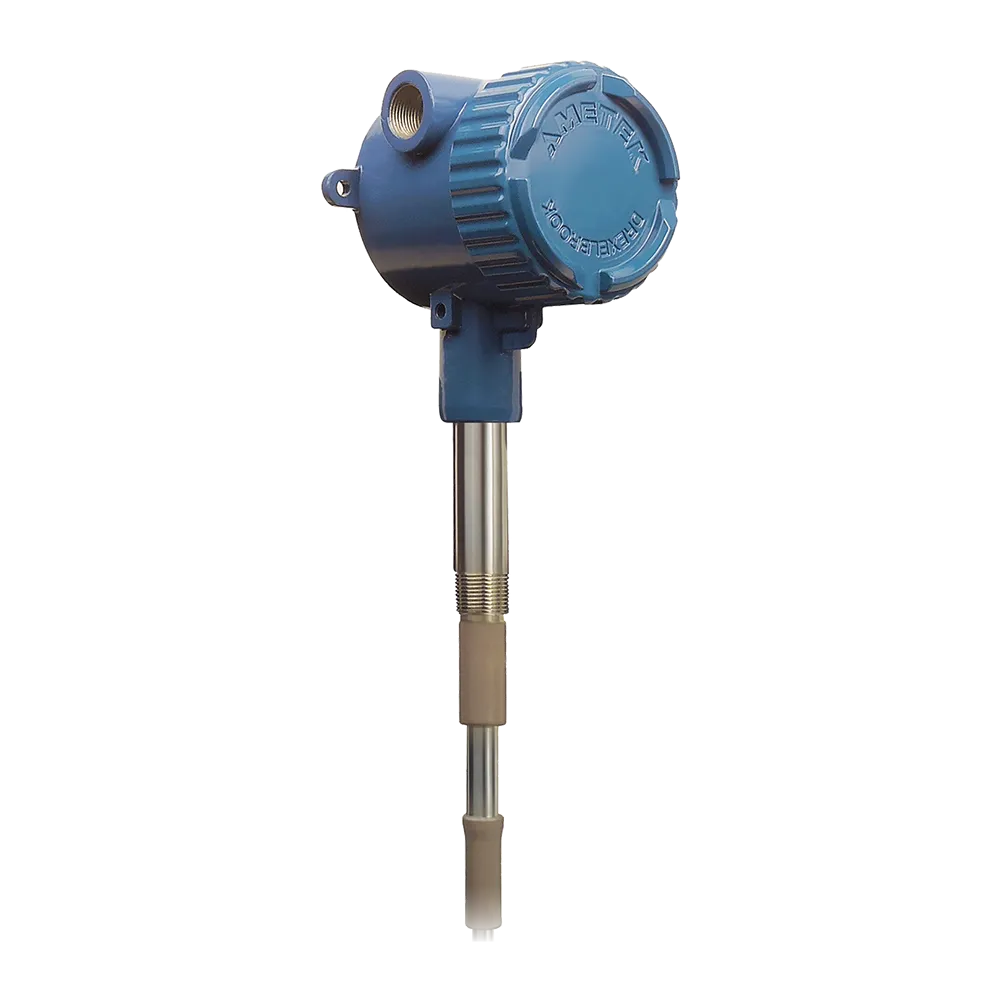

ThePoint Line Powered Level Switch
RF admittance point level switch for liquids, slurries, solids and interfaces, in line or loop powered versions.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
No moving parts and no routine maintenance.
Specifications
- RF admittance technology
- Accurate point-level switching with no moving parts for total reliability
- Auto-calibration
- Simply apply power—no manual setpoint adjustments needed
- Cote‑Shield protection
- Ignores coatings, build-up or residue on the probe
- Maintenance-free operation
- Eliminates wear and jamming from traditional mechanical switches
- Universal power supply
- Auto-detects input between 19–250 VAC or 18–200 VDC
- DPDT relay output
- Dry-contact switching (5 A at 120 VAC / 2 A at 230 VAC)
- Wide application range
- Effective in liquids, slurries, solids and interface media
- Extreme environment rated
- −40 °C to +70 °C (electronics); probe-rated up to +260 °C and 69 bar
- Remote or integral electronics
- Flexible mounting to suit any vessel configuration
Videos
Product walk-throughs, installation and set-up from the manufacturer.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 1
Data Sheets 2
Brochures & Application Notes 5
- Measurement Solutions for the Pet Food IndustryPDF · from the manufacturer
- Application note molasses inventory in large storage tanksPDF · from the manufacturer
- Application note fill and empty control in seafood processing tankPDF · from the manufacturer
- Application note meat packing plant high pressure cook kettlePDF · from the manufacturer
- Application note batch make up control for food processing facilitiesPDF · from the manufacturer
Drawings & Software 1
Certificates & Approvals 10
- ThePoint Line Powered Bid SpecPDF · from the manufacturer
- ThePoint Line Powered Approval Certificate ATEXPDF · from the manufacturer
- ThePoint Line Powered Approval Certificate CE MarkPDF · from the manufacturer
- ThePoint Line Powered Approval Certificate CSAPDF · from the manufacturer
- ThePoint Line Powered Approval Certificate IECEXPDF · from the manufacturer
- ThePoint Line Powered Approval Certificate TestSafePDF · from the manufacturer
More Documents 1
