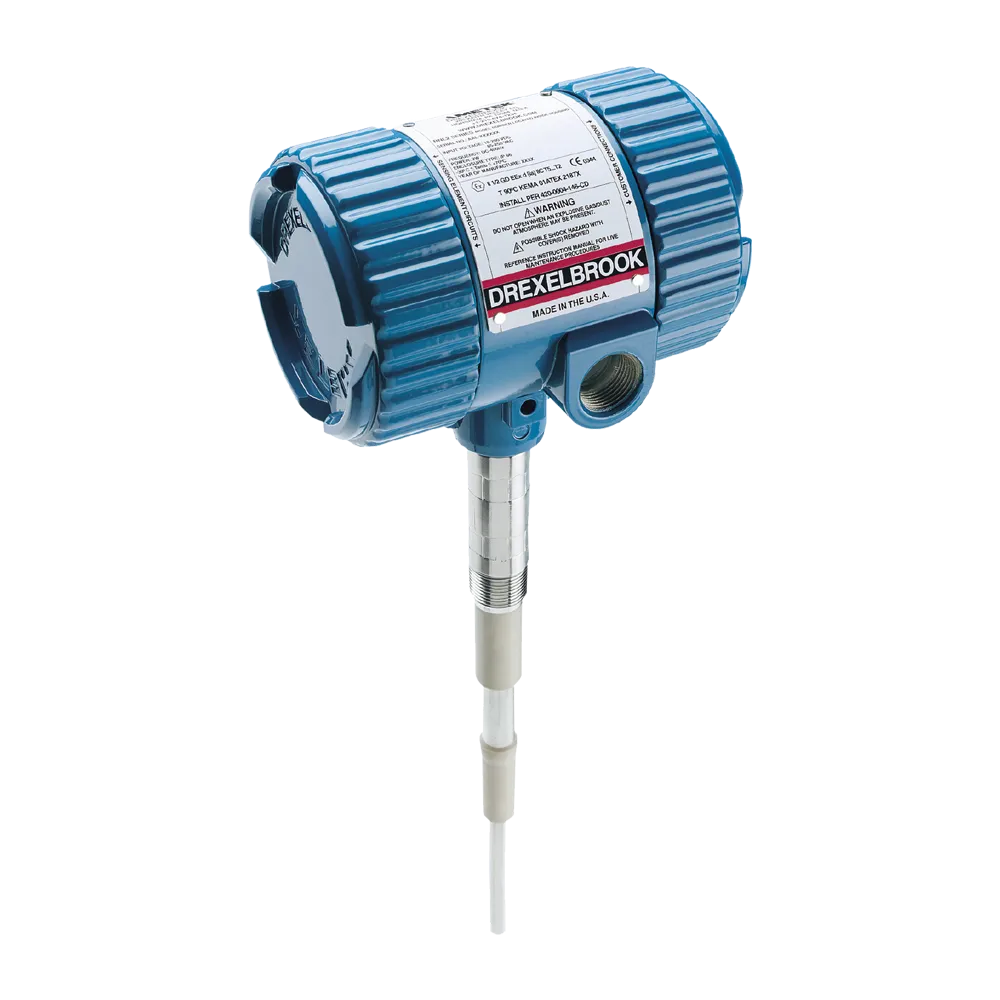

Safety IntelliPoint Loop / Line Powered Level Switch
SIL2 capable RF admittance point level switch for safety-critical duties, loop or line powered.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Specifications
- SIL2 functional safety certified
- Designed for use in safety-critical systems to IEC61508 standards
- No calibration required
- Auto‑calibrates on power-up (No‑Cal™)
- Cote‑Shield immunity
- Ignored coatings or residue prevent false alarms
- Continuous diagnostics
- AutoVerify™ self-test and manual Certify™ verify electronics and sensing element
- Dual power options
- Loop‑powered 13‑30 VDC or universal line power 85‑250VAC / 21‑100 VDC
- SPDT output flexibility
- Dry‑contact relay and/or current output options available
- RF admittance technology
- Reliable switching with no moving parts
- Hazardous area compliance
- FM, FMc, ATEX, IECEx (Class I Div 1 / Zone 0), dual-compartment housing for safety isolation
Videos
Product walk-throughs, installation and set-up from the manufacturer.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Manuals & Guides 3
Drawings & Software 2
Certificates & Approvals 10
- IntelliPoint Approval Certificate ATEXPDF · from the manufacturer
- IntelliPoint Approval Certificate CE MarkPDF · from the manufacturer
- IntelliPoint Approval Certificate FMPDF · from the manufacturer
- IntelliPoint Approval Certificate SIL2PDF · from the manufacturer
- IntelliPoint Approval Certificate INMETROPDF · from the manufacturer
- IntelliPoint Approval Certificate SIL 420-0004-566PDF · from the manufacturer
More Documents 1
