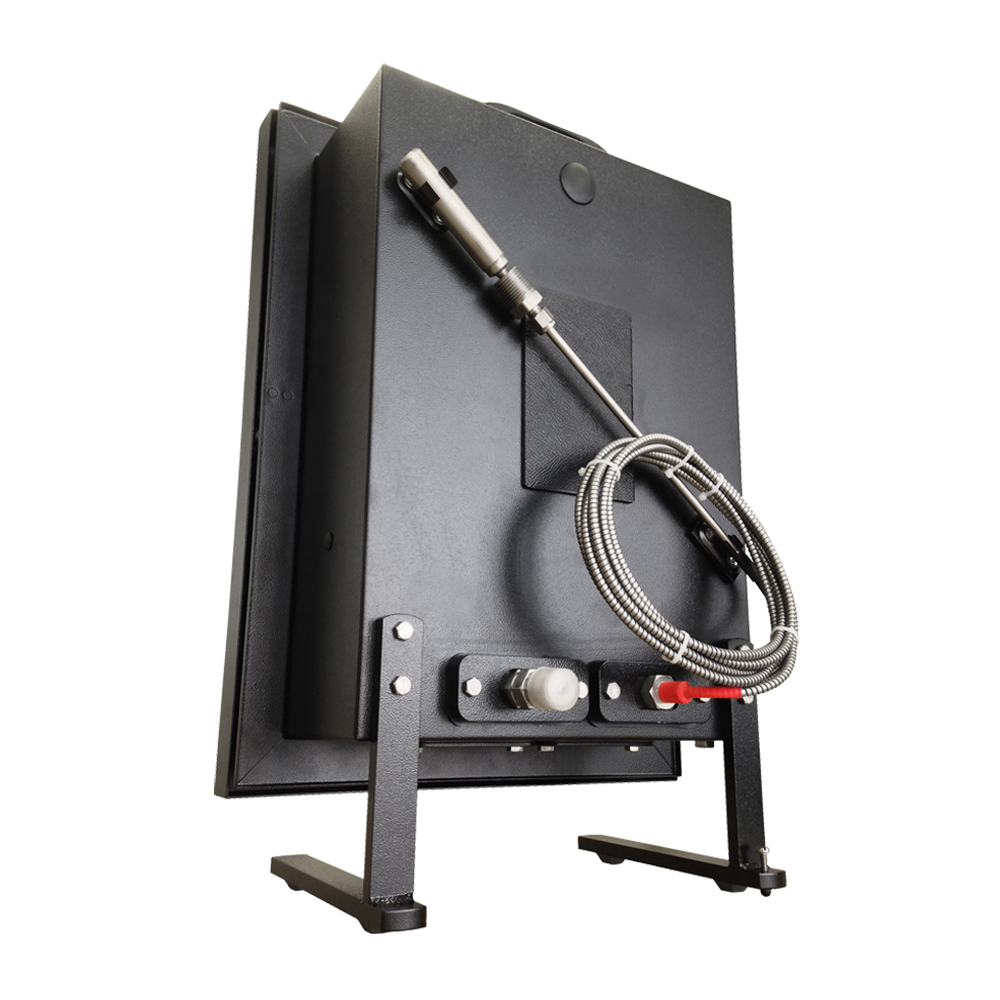

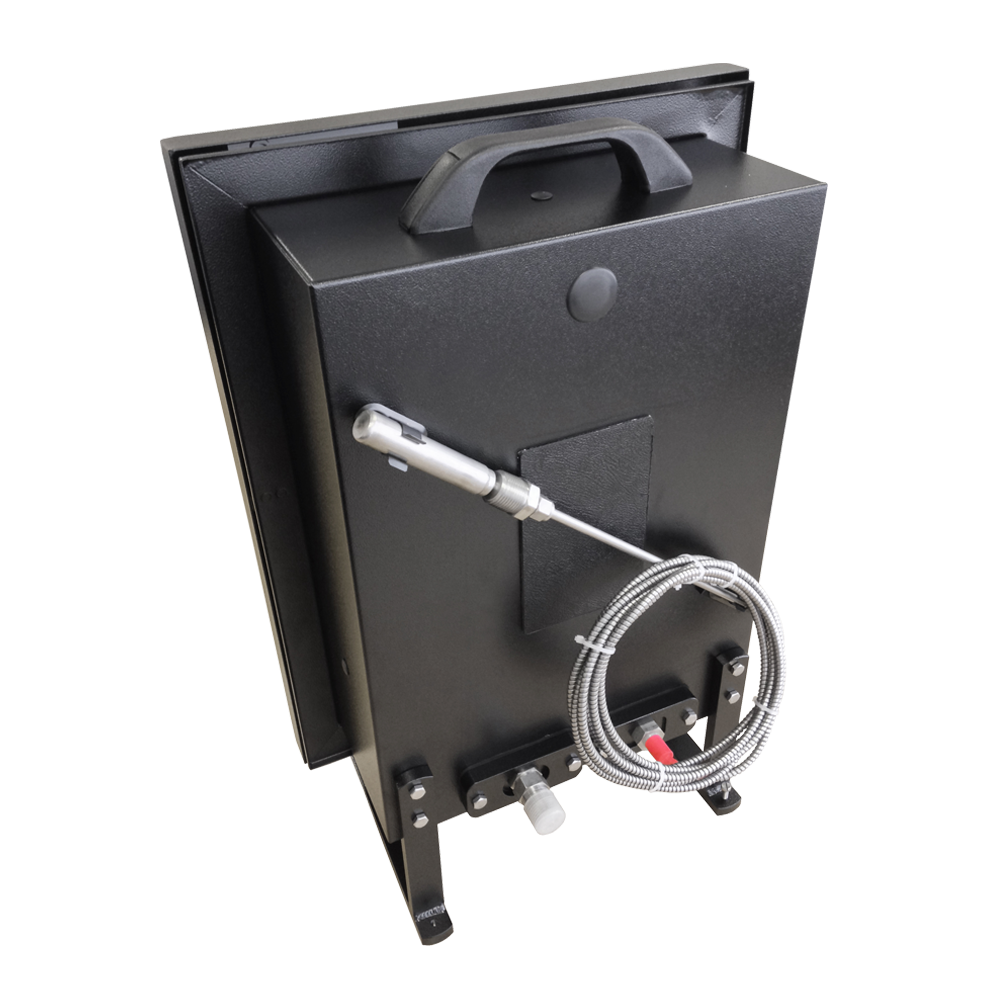

Clearscan Single Pen Pressure Chart Recorder, 0-400 Bar
12″ mechanical circular chart recorder with one pen, needing no power.
Part no.CP1xxxB00400xx
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Wall, panel or portable mounting with a 24-hour mechanical chart drive as standard.
- Single pen, 0-400 Bar pressure range
- Wall / panel mounting with bottom entry connection or portable rear connection options
- 24 hour mechanical chart drive as standard
- Comes with two packs of 100 charts and two packs of 6 red pens
- 24 hour chart rotation
- Stainless steel element / connection
- ½” NPT male process connection (standard)
