Clearscan Double Pen Chart Recorder, 0-100°C, 0-400 Bar

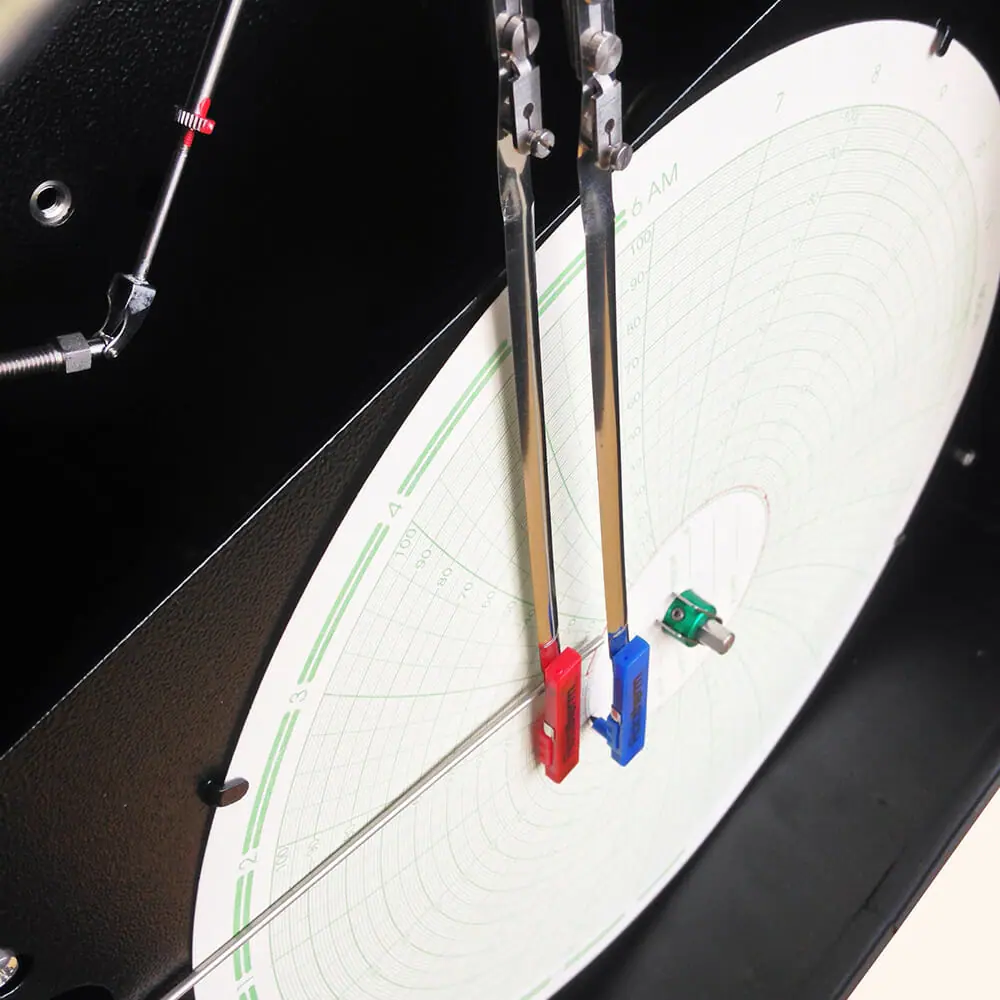

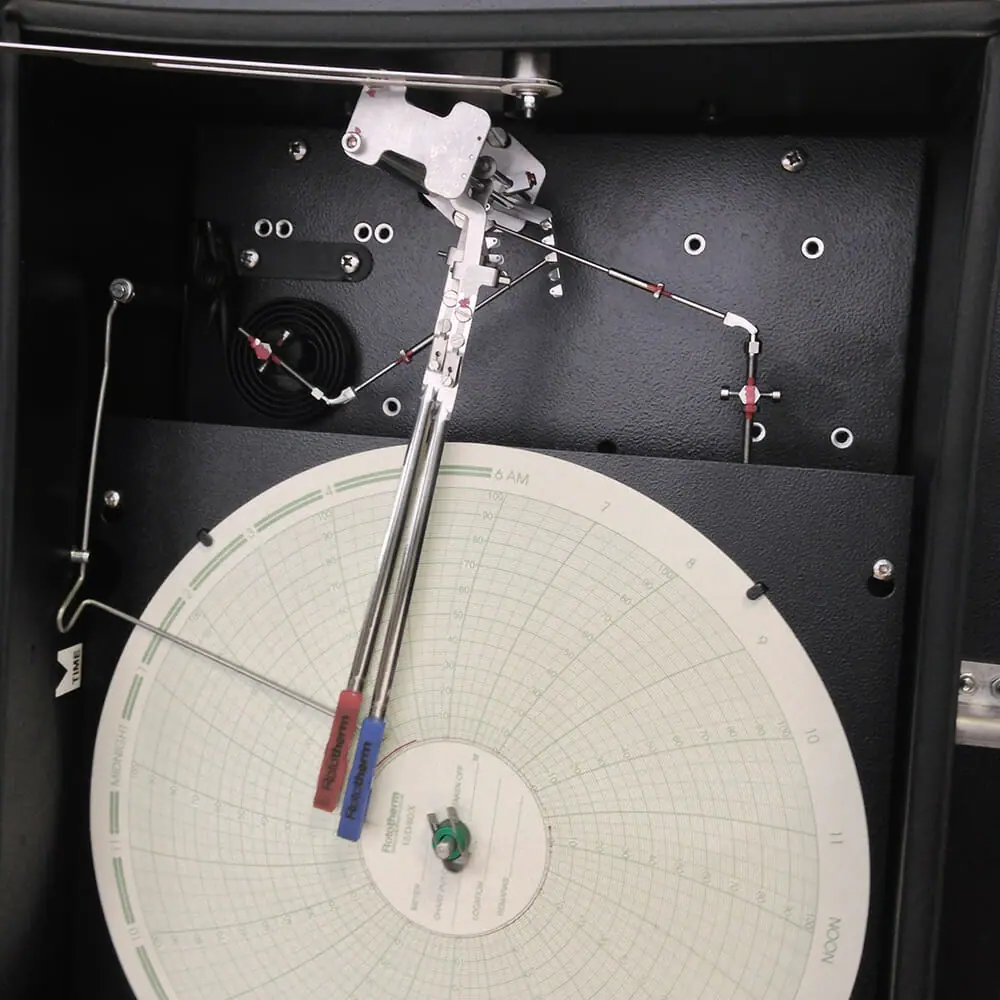

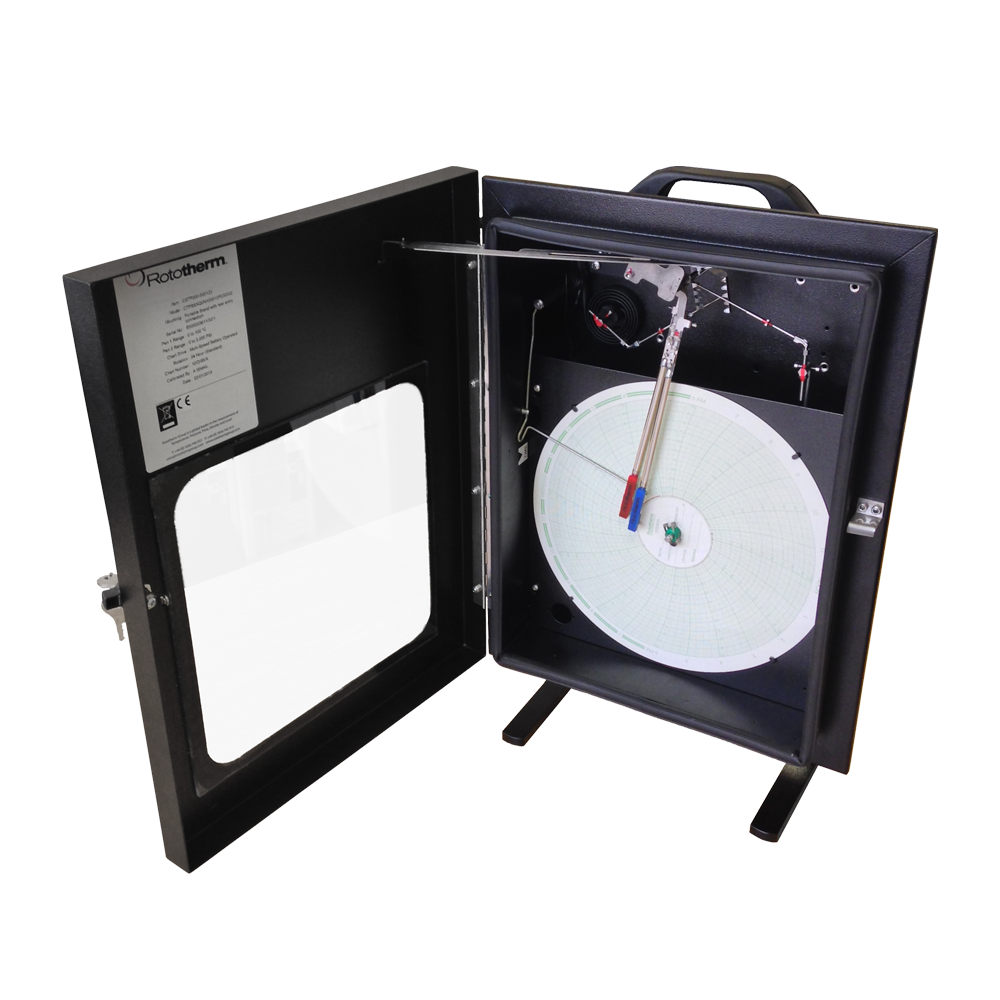

12″ mechanical circular chart recorder with two pens for temperature and pressure.
Part no.CPTxxxB00400xx-T1004N03
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Needs no power, is quick to install and calibrate, and stands up to rugged sites.
- Double pen, 0-100°C temperature range, 0-400 Bar pressure range

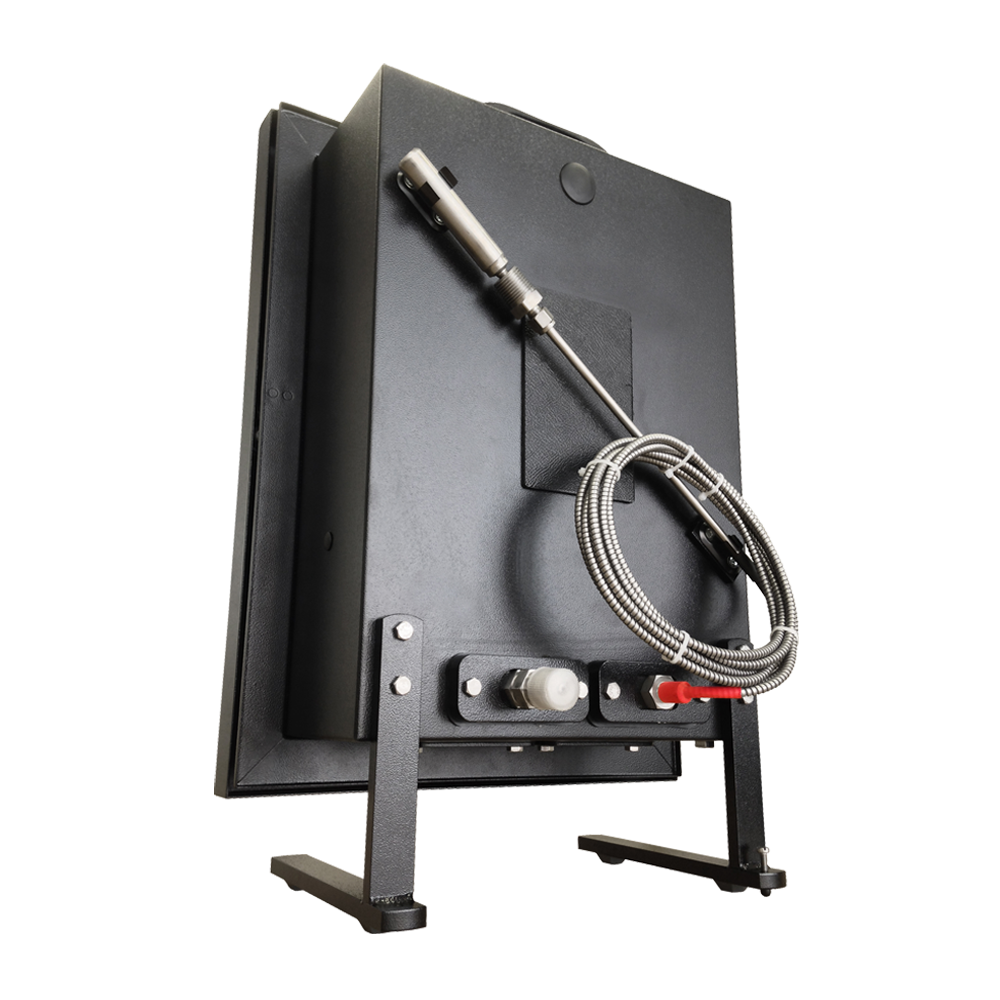

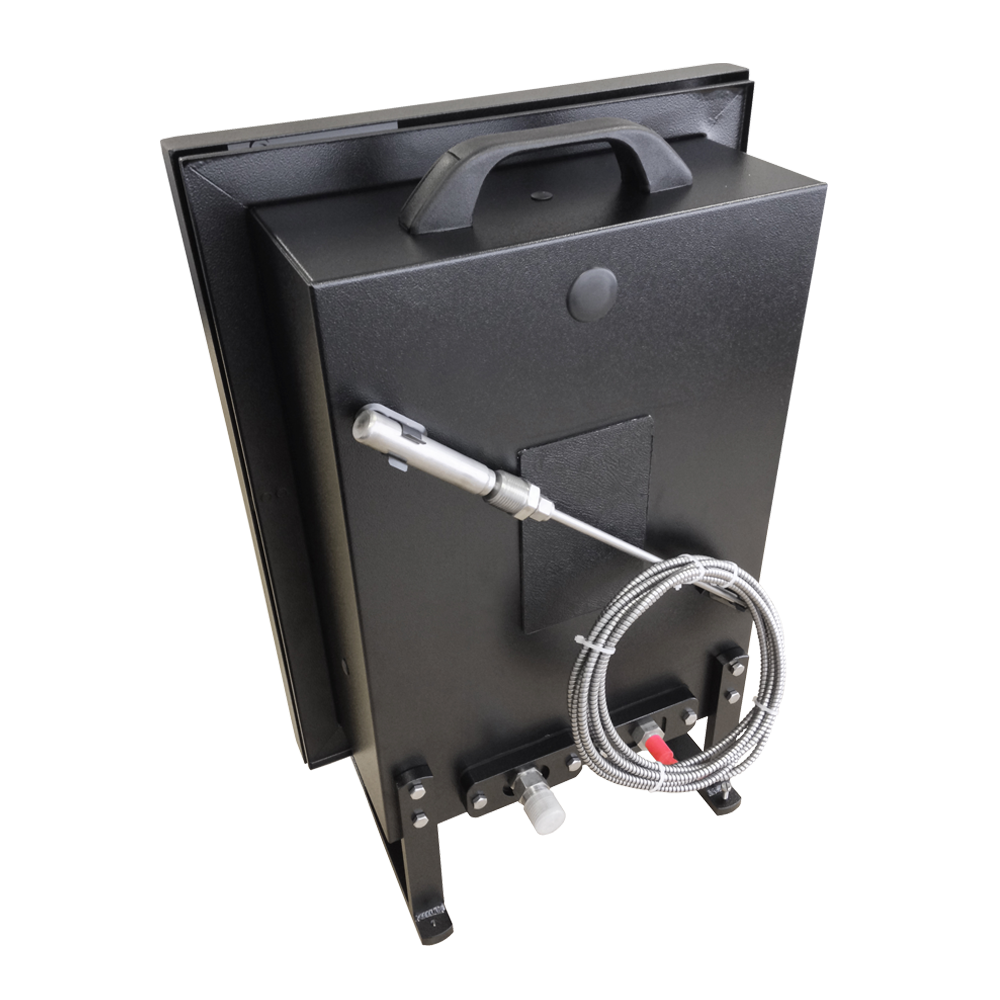

- Wall / panel mounting with bottom entry connection or portable rear connection options
- 24 hour mechanical chart drive as standard

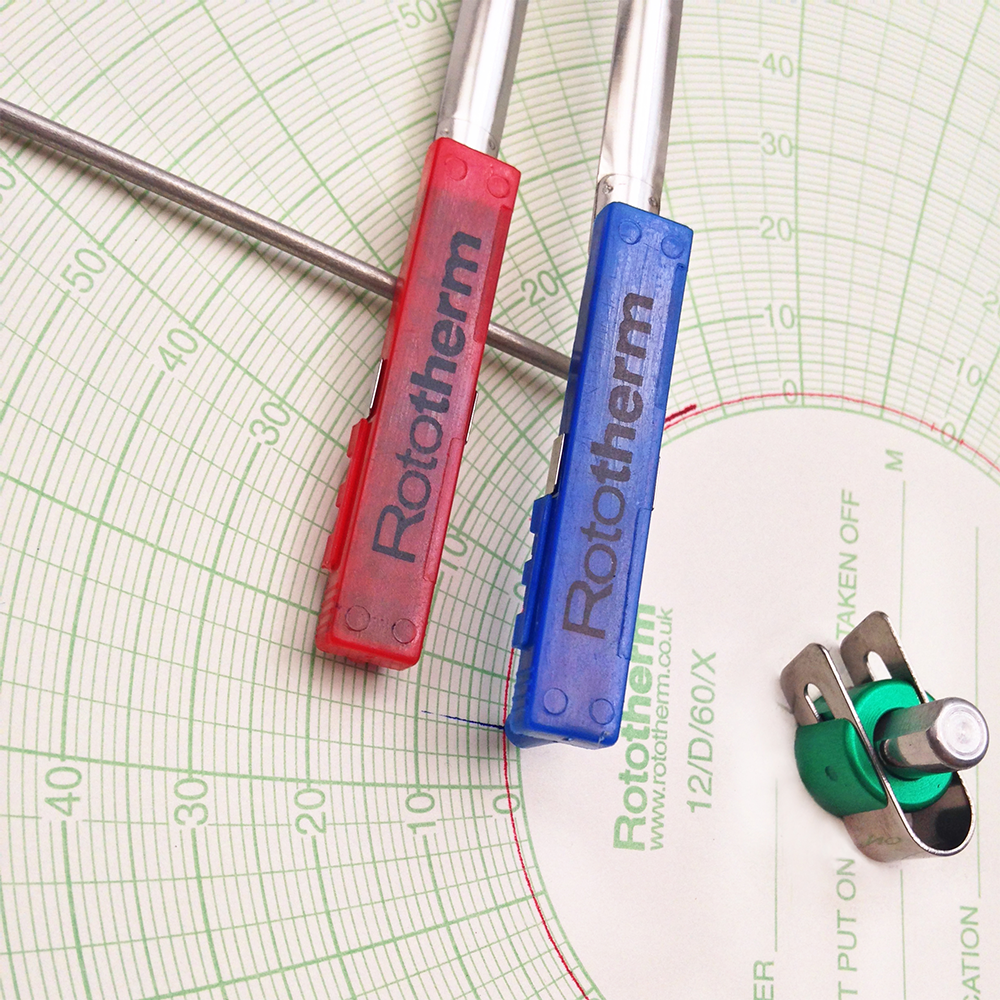

- Comes with two packs of 100 charts and four packs of 6 red / blue pens
- 24 hour chart rotation
- Stainless steel element / connection
Specifications
- Pressure
- ½” NPT male process connection as standard (¼” NPT female available if selected)
- Temperature
- 3 metres armoured capillary
- Temperature
- ANSI Ø11/16″ bulb (¼” x 10″ extension)
- Temperature
- ½” NPT male
