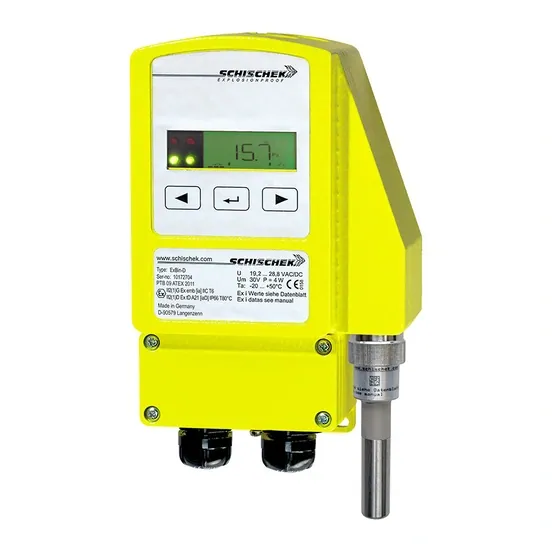

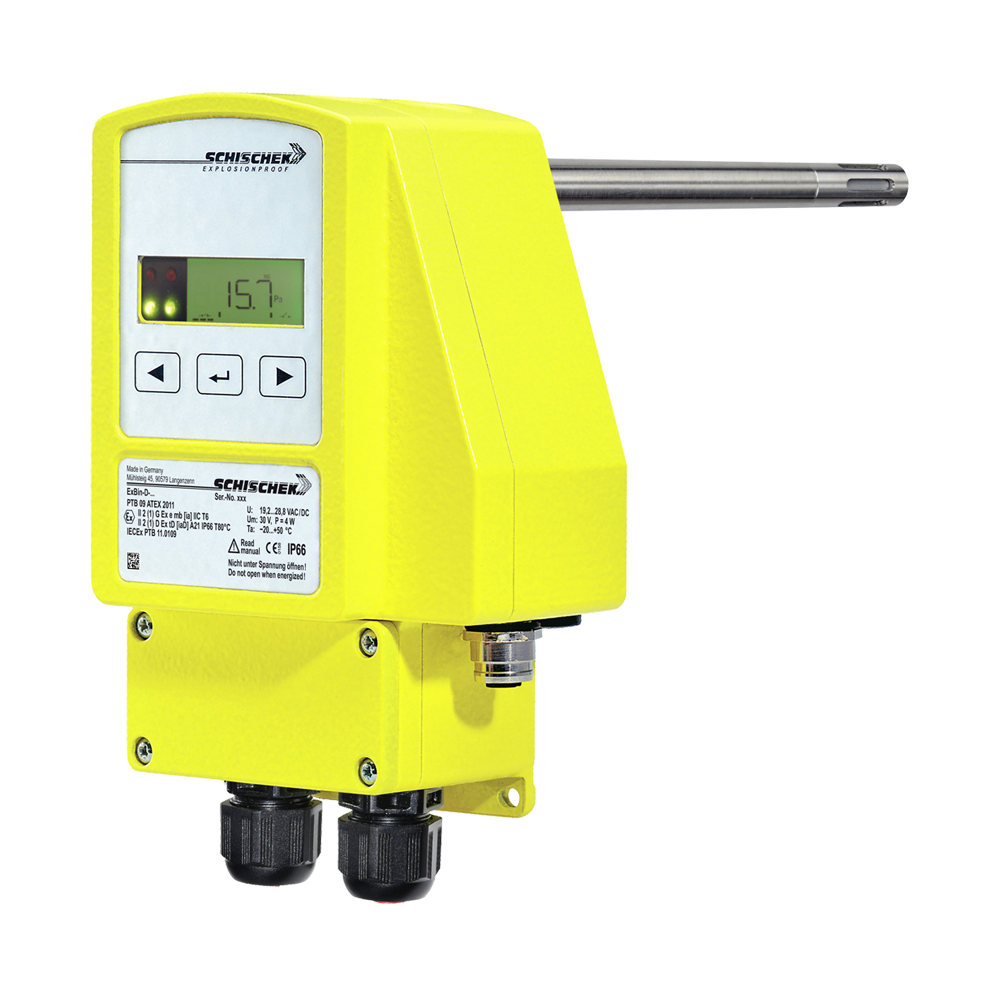

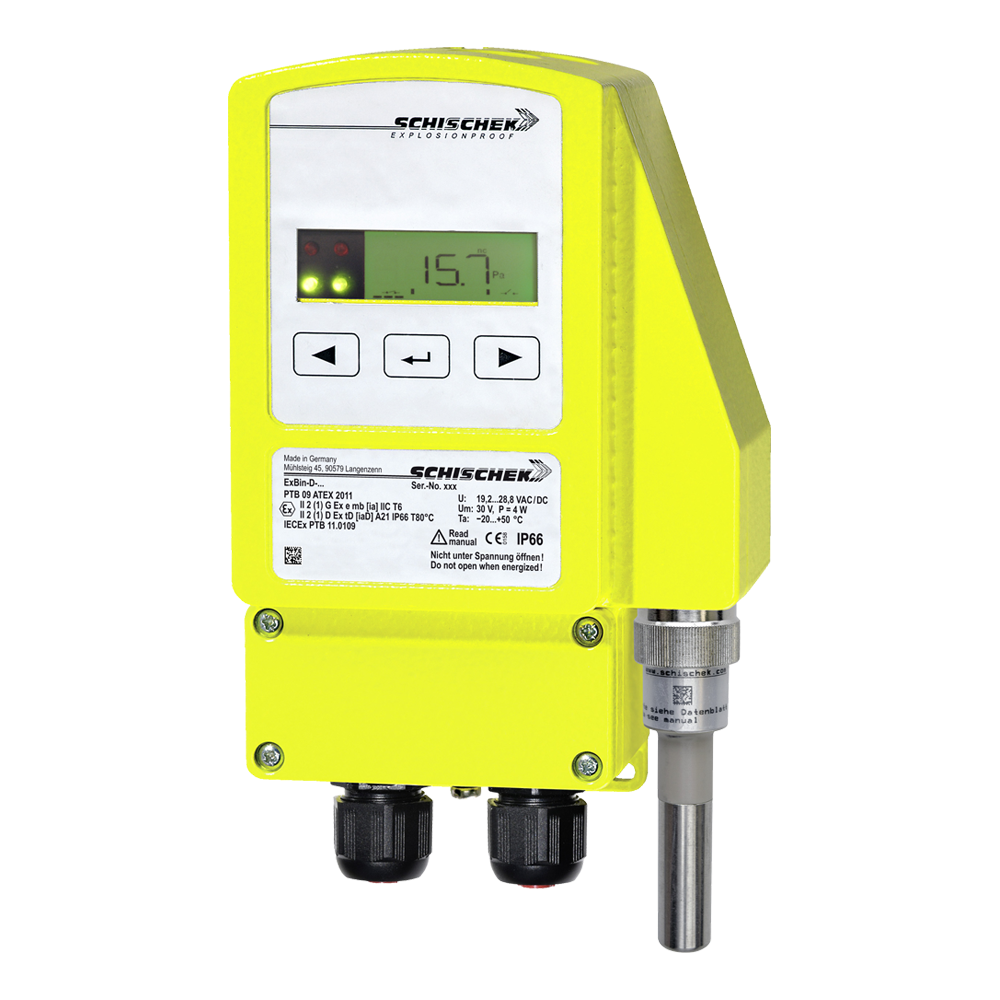

Schischek ExBin-D Explosion Proof Thermostat / Hygrostat
Explosion-proof thermostat / hygrostat for Zone 1, 2, 21 and 22, with separate temperature and humidity switch points.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
- ATEX and IECEx approved for use in zone 1, 2 (gas) and zone 21, 22 (dust) hazardous areas
- Switch-point for °C and %rH separately adjustable
- 1-channel (2 potential free contacts) or 2-channel (4 potential free contacts) versions available
- Temperature and / or humidity measurement
- Room / duct mount types available
- 24 VAC / DC power
- No intrinsically safe install / wiring required between panel and sensor
- Switching status display with LED
- Ambient temperatures as low as -20°C
- Very compact with robust aluminium housing
- IP66 protection
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
Certificates & Approvals 4
- Pub113-255-iecexexbiniecex eps-140074-english pdf-4pstm4v7shozvbszhyo5PDF · from the manufacturer
- PUB113-080-ATEX exreg EPS-11-ATEX-1-380-ENGLISH pdf H3AI5ASTQRS9RFZQXYJAPDF · from the manufacturer
- PUB113-069-ATEX exbin EPS-14-ATEX-1-657-ENGLISH PDF-1BCNEUHSQ2MSPXPVWJQOPDF · from the manufacturer
- BVS-22-ATEX zqs E136EN pdf RTKIMPORTASSETYBI6VTPDF · from the manufacturer
More Documents 6
- Exbin den pdf RTKIMPORTASSETQD2YINPDF · from the manufacturer
- Pub113-002-00-1222-pdf rtkimportassetb97665PDF · from the manufacturer
- Euc EXBIN2025-REV.08MULTI pdf TNOJP5RTSLO0D7DKJTSHBWPDF · from the manufacturer
- Euc EXBIN2025-REV.08FRENCH pdf JWWKZQEESNKSHTJEJ6WF1APDF · from the manufacturer
- Euc EXBIN2025-REV.08GERMAN pdf Z1FGL9IRYYGRF1WYVUJPAPDF · from the manufacturer
- Euc exbin pdf RTKIMPORTASSETIIMDB1PDF · from the manufacturer
