Fixed Evaluation Units

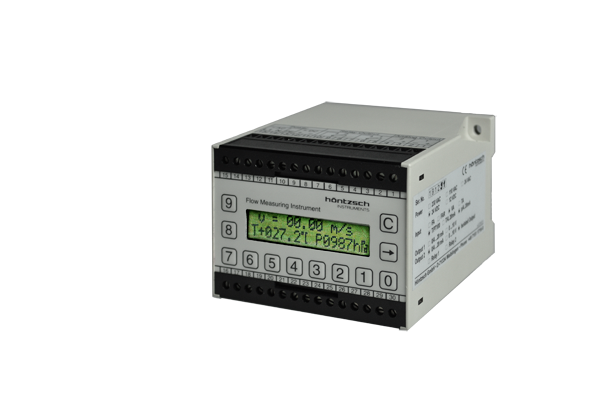

System unit µP-Vortex in top-hat rail mounting
for connection with probes VA40 and measuring tubes VA Di.
Details
Brand
Fixed Evaluation Units
Transducer UVATP
In combination with vortex measuring tubes VA TP DN Exactflow II
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
For measuring gas mass flow, standard flow rate, working pressure and temperature.
parameter setting via RS232 interface with UCOM VTP software and programming adapter
in light metal housing
Specifications
- Measuring range
- UVATP – for measuring mass flow rate with sensors VA TP DN Exactflow
- Displayed indicators
- mass flow rate [kg/h], / standard flow rate [Nm³/h] / actual flow rate [m³/h] / temperature [°C], pressure [hPa], volume/quantity [m³]
- IP protection type
- IP65
- Sensor input
- v/VA; t/PT100; p/4...20 mA
- Sensor output
- analog output, proportional gas mass flow 4 … 20 mA, / relais for limit value or quantity pulse, / vortex output through BNC connector
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
