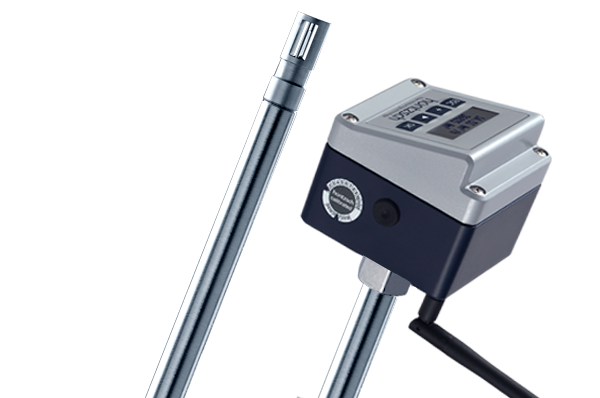

Thermal Probe TA10 ... ZG2d

Overview

Measuring instruments having a WiFi interface can be accessed by a web-enabled device via the web interface. It is also possible to check and transfer performance data and to change the device settings. With this new generation of sensors the same unit can be used for a variety of gases also in ex-applications categories 3G and 3D (zone 2 and zone 22). Recalibration or return to the manufacturer when there’s a change of gas won’t be necessary anymore. Only the adequate gas characteristics stored in the device have to be set on the sensor.

Probe material: stainless steel.

Working temperature range -10 ... +140 °C.

Pressure resistance up to 16 bar.

Configurable via an optional keypad in the housing lid or via WiFi interface.

Specifications

Measuring range

0.2 ... 200 m/s

Pressure resistance

up to 16 bar / 1.6 MPa above atmospheric

Media temperature

-10 ... +140 °C

Media

air (compressed air), nitrogen, methane, natural gas, propane, butane / argon, carbon dioxide, sulphur hexafluoride, helium, hydrogen, landfill gas, oxygen, …

Displayed indicators

Standard flow velocity [Sm/s], / Standard flow rate [Sm³/h] or [Sl/min], / mass flow rate [kg/h], / standard volume [Sm³], / Temperature [° C, ° F], / With optional M-Bus: standard flow rate, mass flow rate, standard volume.

IP protection type

IP65 (connection housing)

Type of protection

ATEX category 3G and 3D (zone 2 and 22) (optional)

Sensor output

2 analog output 4-20 mA, linear, freely configurable / relay for quantity pulse / WiFi (optional) / M-Bus (optional)
