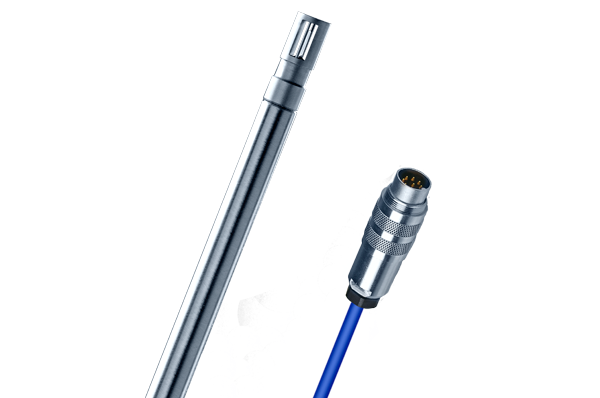

Thermal Probe TA10 ... ZG1b
Suitable for portable or fixed measurement of the standard flow velocity v [m/s], the standard flow rate NV/t [m³/h], the mass flow [kg/h], the standard volume NV [m³] and the flow through mass [kg].
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
For connection to handheld flowtherm NT.2, flowtherm Ex, transducers U10b.
Specifications
- Measuring range
- 0.2 ... 200 m/s
- Pressure resistance
- up to 16 bar / 1.6 MPa rel.
- Media temperature
- -10 ... +140 °C
- Media
- air (compressed air), nitrogen, methane, natural gas, / argon, carbon dioxide, helium ...
- IP protection type
- IP65 (cable inlet)
- Type of protection
- with U10b: ATEX category 3G and 3D (zone 2 and 22) (optional) / with flowtherm Ex: ATEX category 2G (zone 1) (optional)
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
