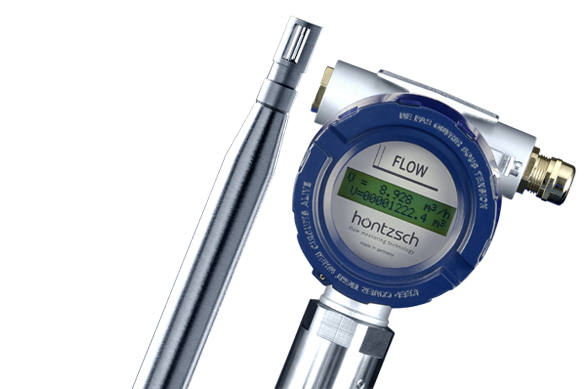

Thermal Probe TA10/15 Ex-d / ATEX
Thermal flow sensor in probe design with shaft diameter 10/15 mm and transducer UTA integrated in the Exd explosion proof connection housing. For insertion in pipes with inside diameter 40 mm.
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
Probe material: stainless steel.
Working temperature range -10 ... +140 °C.
Working pressure up to 16 bar.
Suitable for fixed measuring of standard flow velocity Nv [m/s], standard flow rate NV/t [m³/h] and standard quantity (volume) NV [m³].
Specifications
- Measuring range
- 0.2 ... 200 m/s
- Pressure resistance
- up to 16 bar / 1.6 MPa overpressure
- Media temperature
- -10 ... +140 °C
- Media
- air (compressed air), nitrogen, methane, natural gas, / argon, carbon dioxide, helium, ...
- Displayed indicators
- standard flow velocity [m/s] / standard flow rate [m³/h] or [l/min] / Mass flow [kg / h] / Standard volume NV [m³] / Mass [kg]
- IP protection type
- IP68 (connection housing)
- Type of protection
- ATEX category 1/2G and category 1/2D (zone 0/1, zone 20/21)
- Sensor output
- analog output 4 ... 20 mA / gas mass flow-proportional / relay for quantity measurement / configurable via HART communication and UCOM software
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
