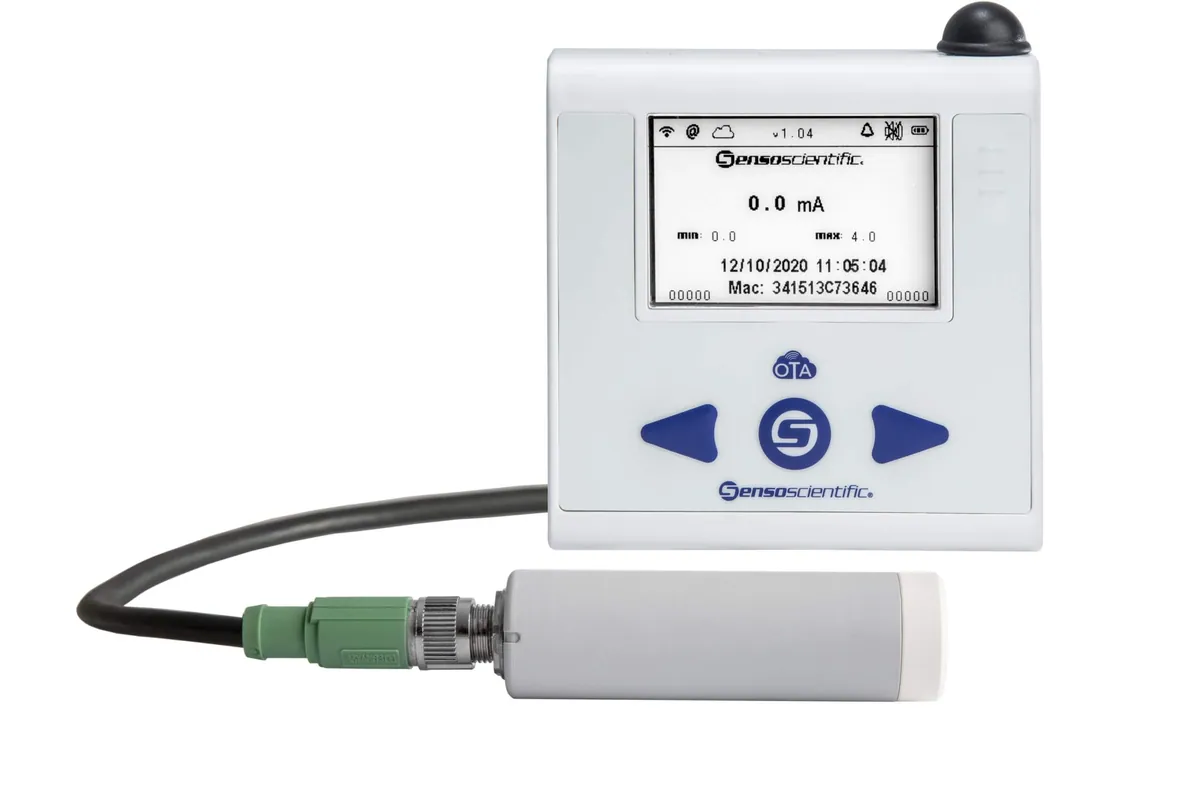

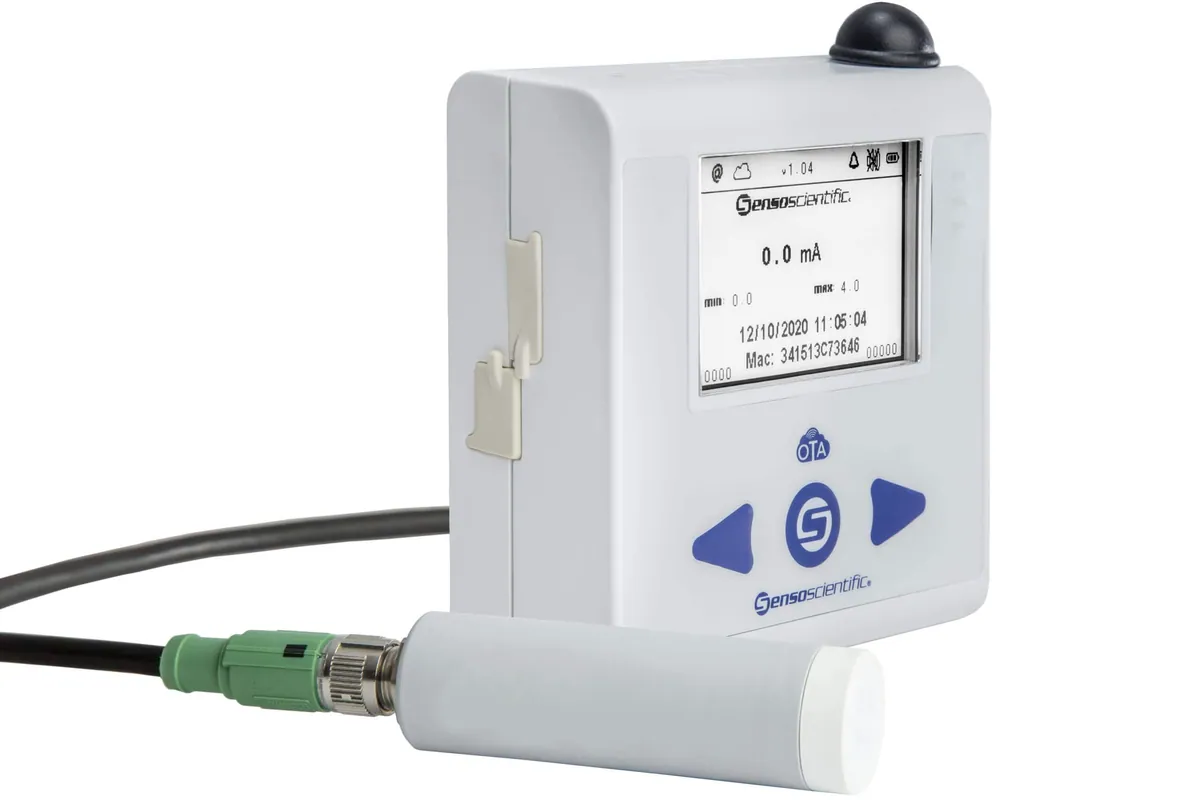

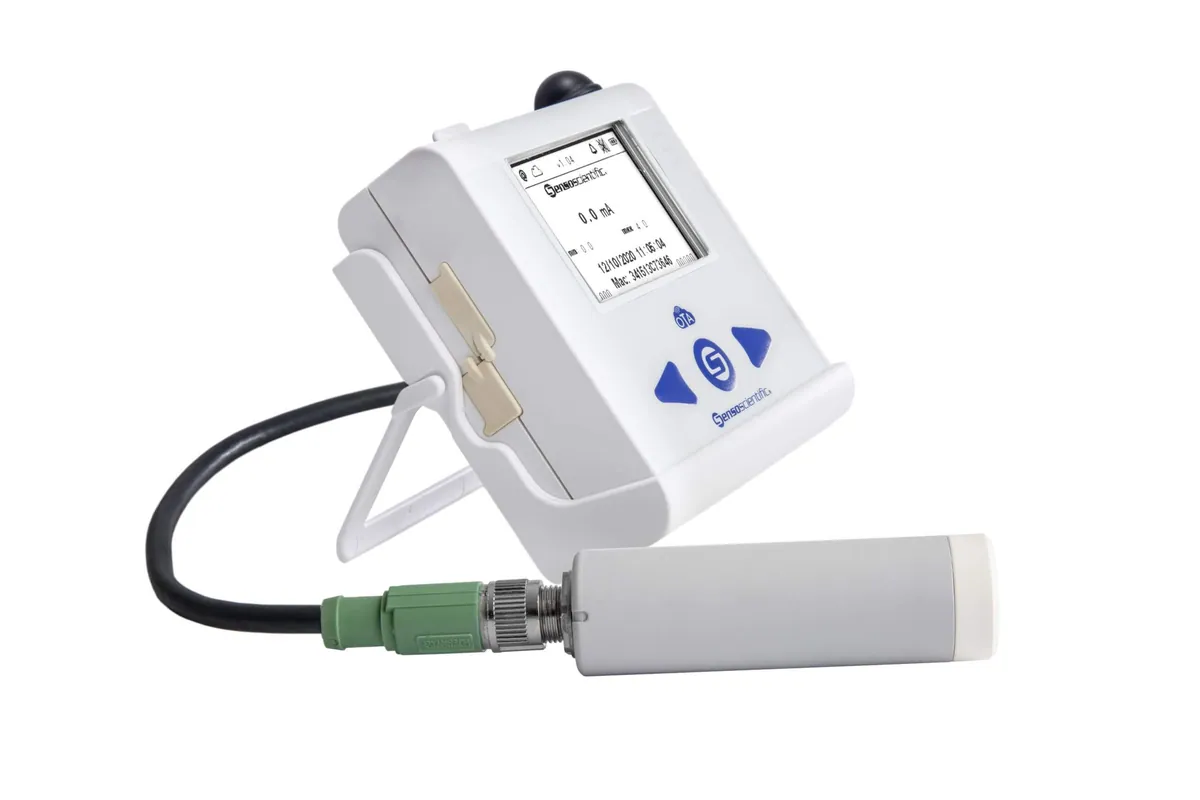

Carbon Dioxide Probe, 4-20mA (0 to 20% CO2)

Overview

SensoScientific's 4-20mA Universal CO2 sensor monitors carbon dioxide emissions across a range of 0 to 20% CO2. It uses an existing Wi-Fi network to send data to the SensoScientific Cloud for real-time access and immediate alerts (SMS, text, voice, pager, cell phone, fax, email, and more). The Cloud provides comprehensive reporting, real-time data, and A2LA accredited calibration certificates. All data is time-stamped and cannot be altered per FDA 21 CFR Part 11. Features full temperature and pressure compensation, IP65 housing, and a heated sensor head to prevent condensation.

Specifications

Current

4-20mA

CO2 Range

0 to 20% CO2

Accuracy at 25C (77F) and 1013 hPa

At 5% CO2 = +/-0.1% CO2; At 0 to 8% CO2 = +/-0.2% CO2; At 8 to 20% CO2 = +/-0.4% CO2

Calibration Uncertainty

At 5% CO2 = +/-0.07% CO2; At 20% CO2 = +/-0.27% CO2

Long-Term Stability

0 to 8% CO2 = +/-0.3% CO2/Year; 8 to 12% CO2 = +/-0.5% CO2/Year; 12 to 20% CO2 = +/-0.3% CO2/Year

Operating Temperature Range

-40C to 60C (-40F to 140F)

Operating Humidity Range

0% to 100% RH, Non-Condensing

Weight, Probe

45 g (1.59 oz)

Probe Housing Material

PBT Polymer

Filter Material

PTFE Membrane, PBT Polymer Grid

Connector Material

Nickel Plated Brass, M12 / 5-pin

IP Rating, Probe Body

IP65

Connector Type

M12 5-pin Male

Dimensions

Diameter 0.98" (25mm); Length 3.78" (96mm)
