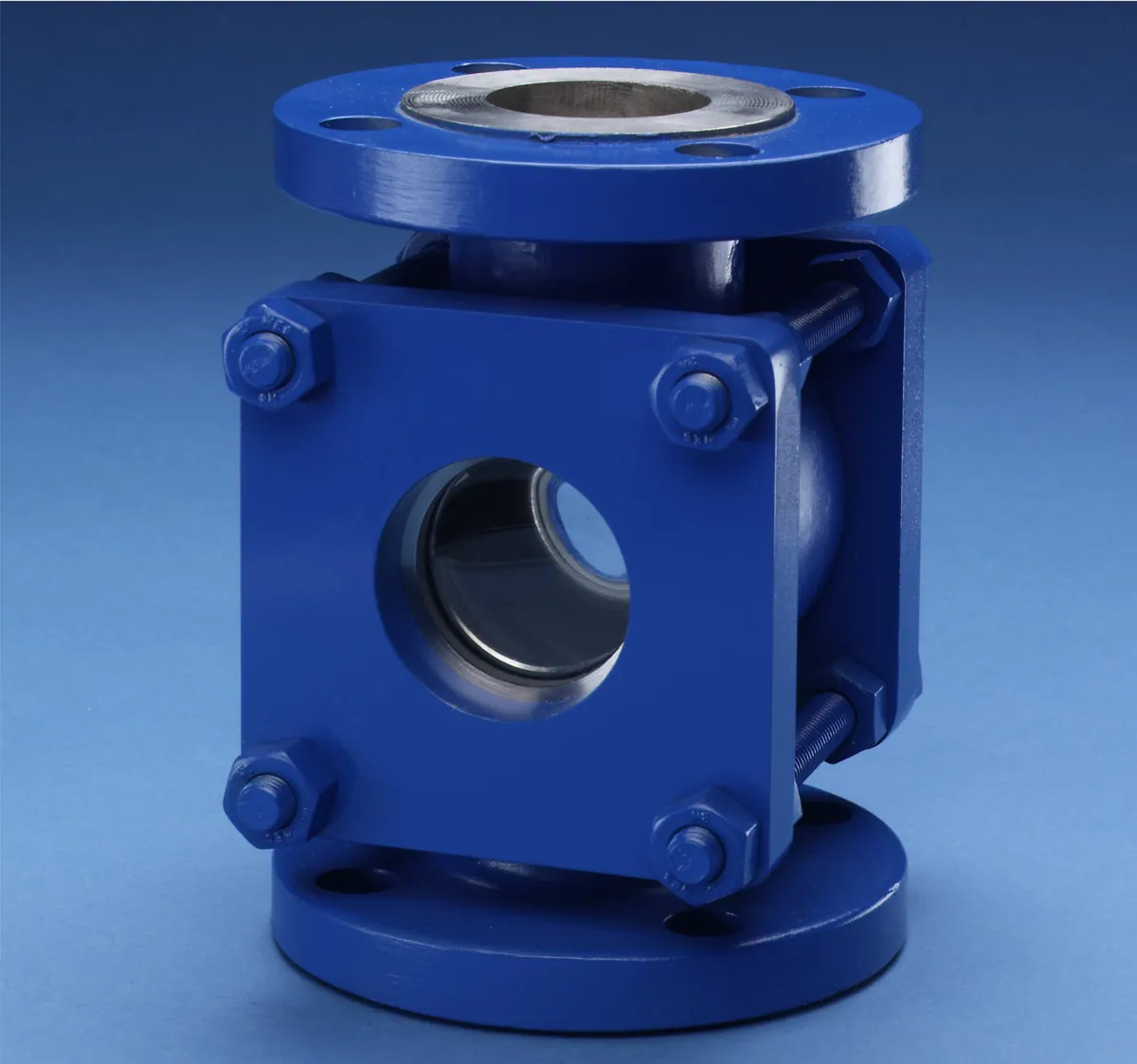

F700 Series Flanged Industrial Sight Flow
Flanged industrial sight flow indicator built to strict process and piping standards.
Part no.F700 Series
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
- Integrated FuseView™ Technology – Every sight flow is equipped with Canty FuseView™ fused glass windows for superior clarity, strength, and safety.
- ASME Code Compliance – Designed to meet strict ASME code standards, ensuring reliability in industrial applications.
- Industry Standard Connections – Built to conform to ANSI 16.5 and BS EN 1092-1 specifications, allowing for seamless integration.
- Durable Material Options – Available in stainless steel, carbon steel, and Hastelloy®, providing exceptional corrosion resistance and durability.
- Teflon® Lined Sight Flows – Special Teflon® lining options are available for applications requiring enhanced chemical resistance.
- Wide Pressure Range – Standard pressure ratings range from 150 LB to 2500 LB, PN10 to PN100, accommodating varied industrial needs.
- High-Pressure Customisation – Special designs for pressures up to 10,000 PSI are available upon request for extreme operating conditions.
Documents & Downloads
Manuals, data sheets and approvals from the manufacturer. Ask us if you need a document that is not listed.
