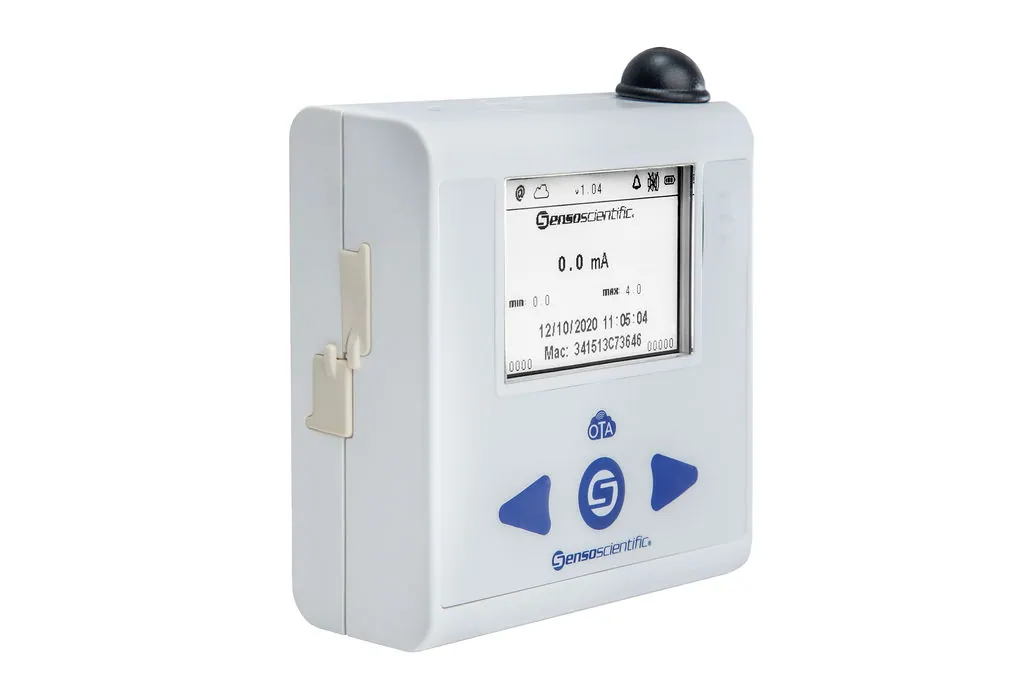

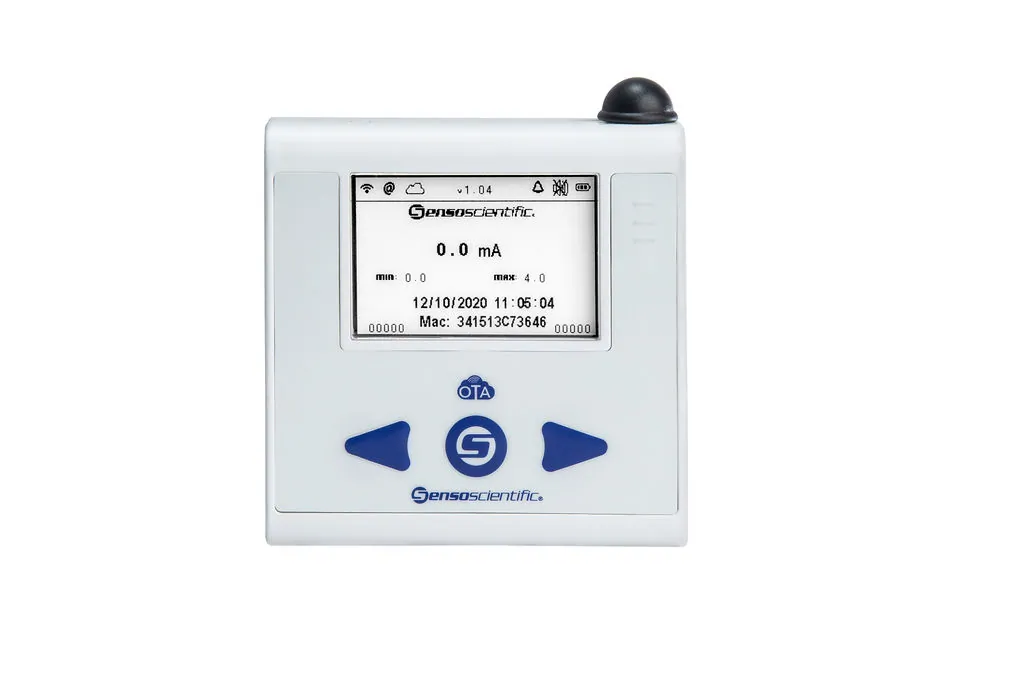

0-5V Universal Sensor - Wi-Fi OTA (B15-200-OTA, B15-500-OTA)

Overview

A 0-5V sensor for monitoring environmental conditions such as temperature (with support for humidity and CO2) in industries like healthcare and medical research. Available in single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity. A high-speed wireless module with PEAPv0 enterprise security that collects, stores, and transmits data over standard 802.11 b/g/n with TCP. Delivers alerts via SMS, text, cell phone, email, and more. Easy to install, offers full-service compliance automation, technical support, and a three-year device warranty.

Specifications

Voltage

0-5V

Accuracy

+/-0.5% (+/-25mV)

Ambient Operating Range

0C to 75C (32F to 167F); Up to 95% RH

Memory

Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms

Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency

2.4 to 2.497 GHz

Radio Protocol

IEEE802.11 b/g/n Compatible 54Mbit/sec

Enterprise Security

PEAPv0 with EAP-MSCAPv2 (PEAP)

Housing

ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting

Zip Tie Mount Hooked with Screw Holster Wall Mount

Power Supply

(4) 1.5V AA Batteries (Lithium or Alkaline); Optional AC/DC Power Supply (UL Certified)

Battery Life

1 Year

Dimensions

Height 4.25" (108mm); Width 3.88" (98mm); Length 1.38" (35mm)

LDAP

Single Sign-on Capability

Certificates

Device-level Certificates

Warranty

3-Year Warranty
