Coriolis Mass Flow Meters
RHE 21 Ex d Field Mount Coriolis Mass Flow Transmitter
Explosion-proof field-mount Coriolis transmitter with advanced functions, for hazardous areas.
Details
Brand
1 / 5Coriolis Mass Flow Meters

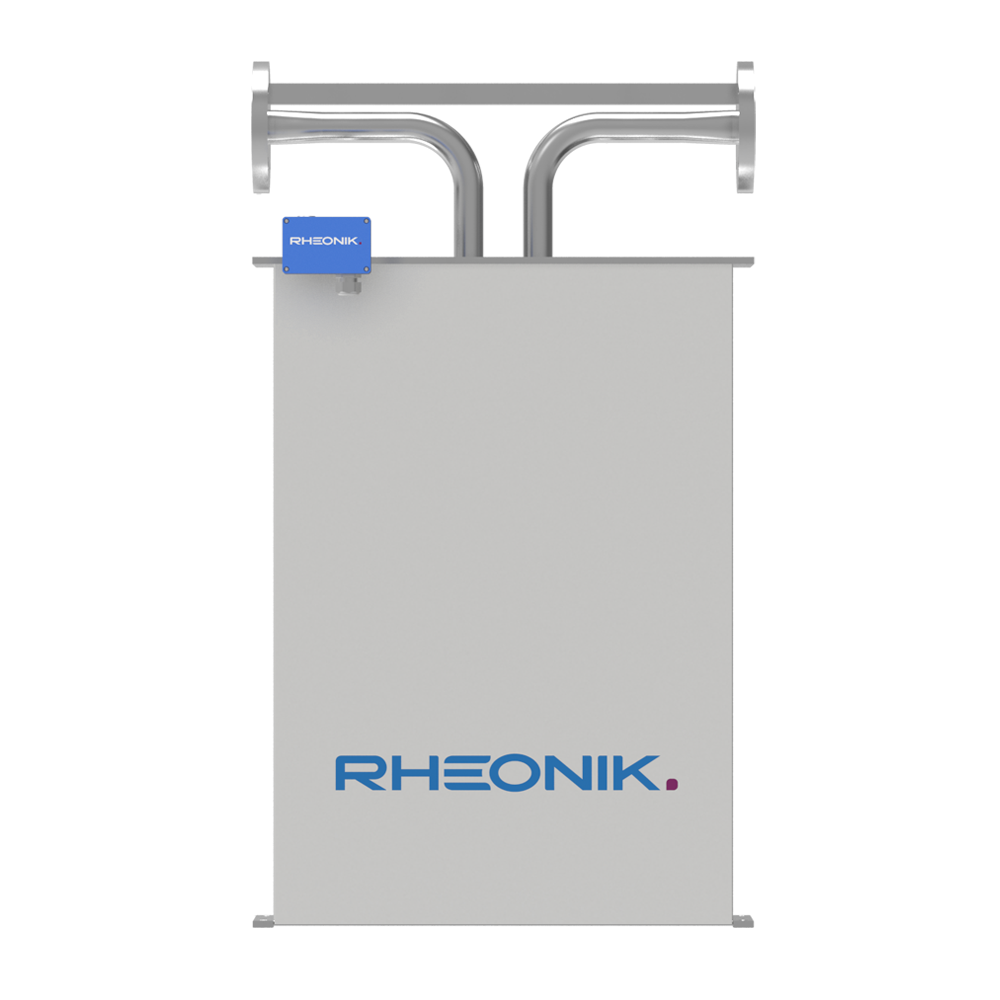

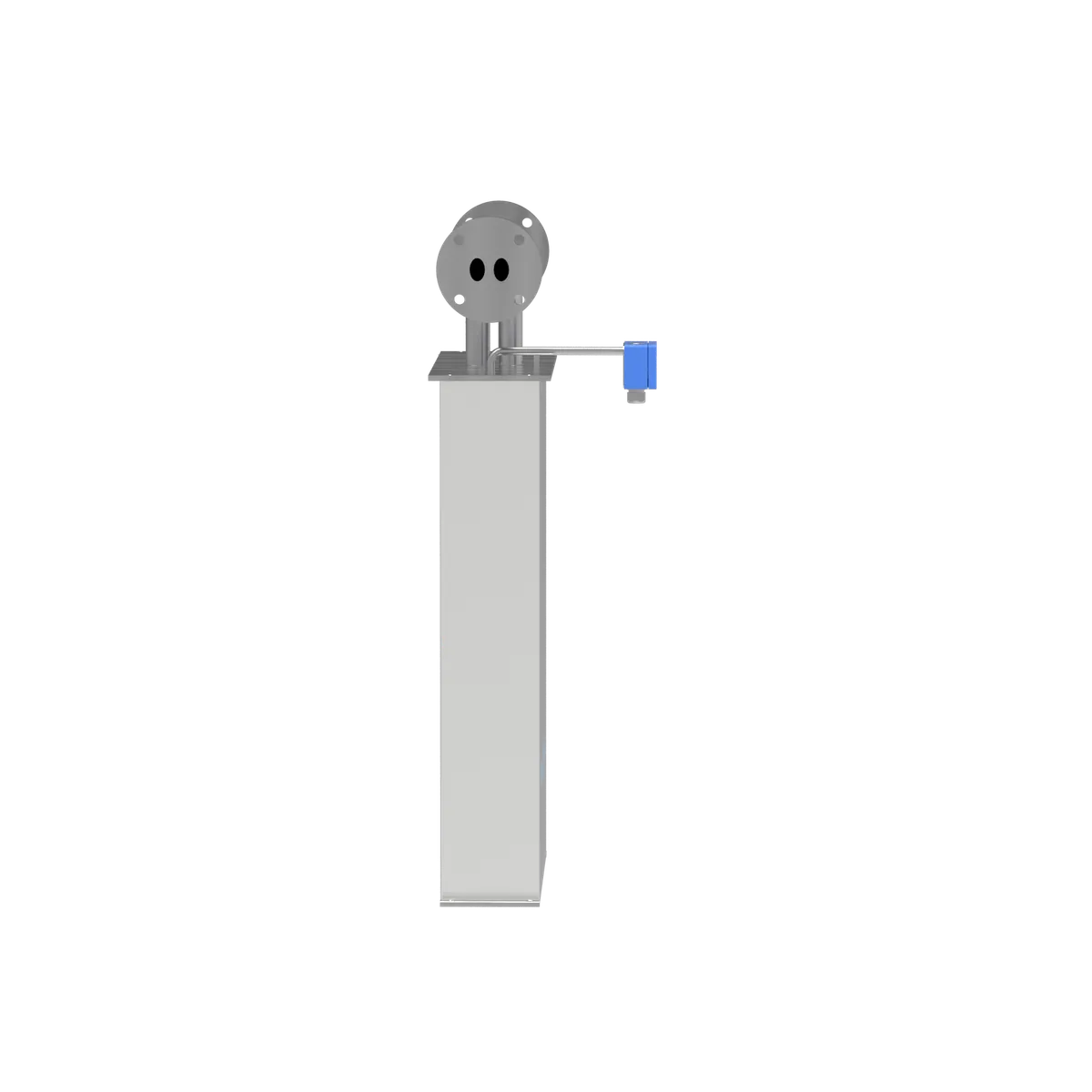

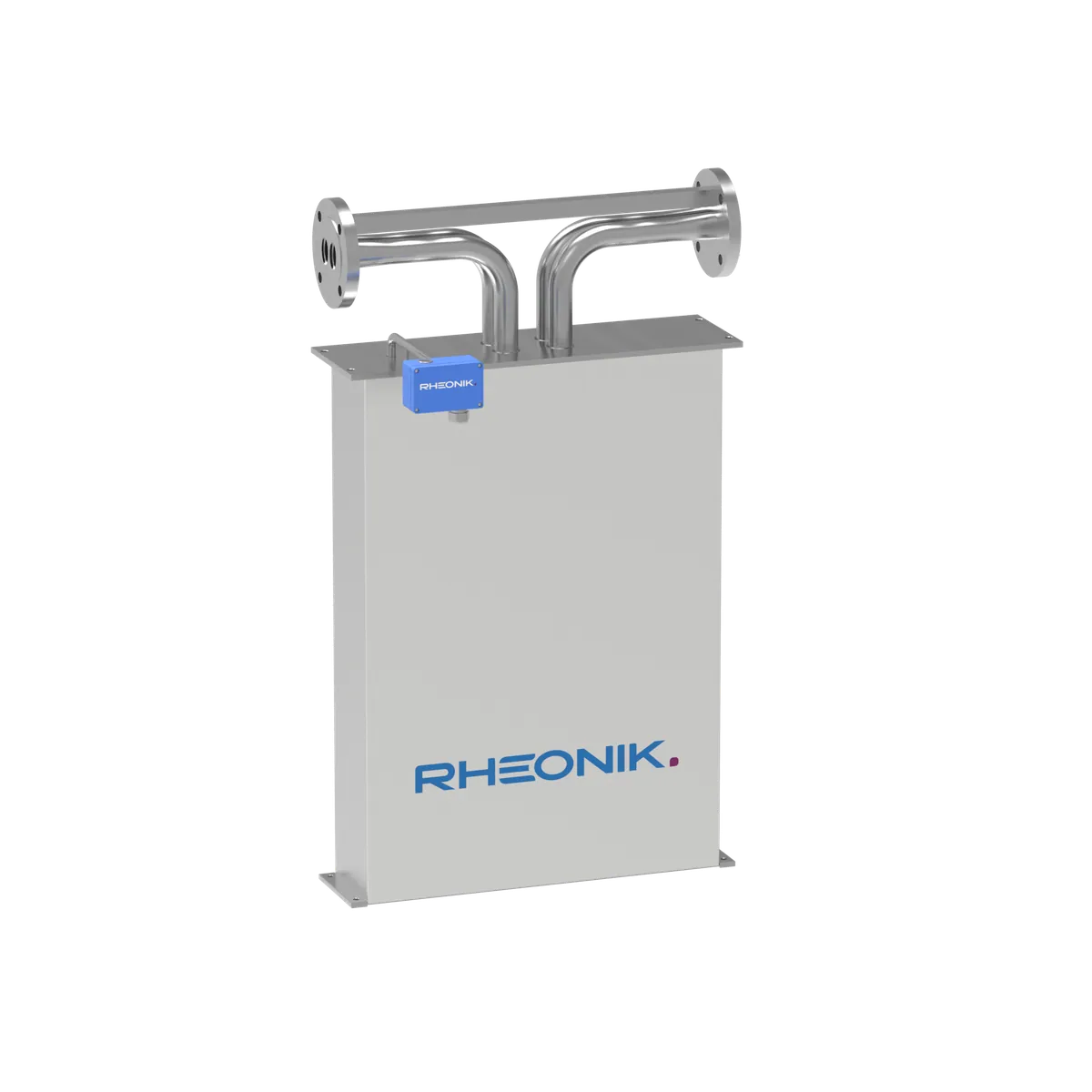

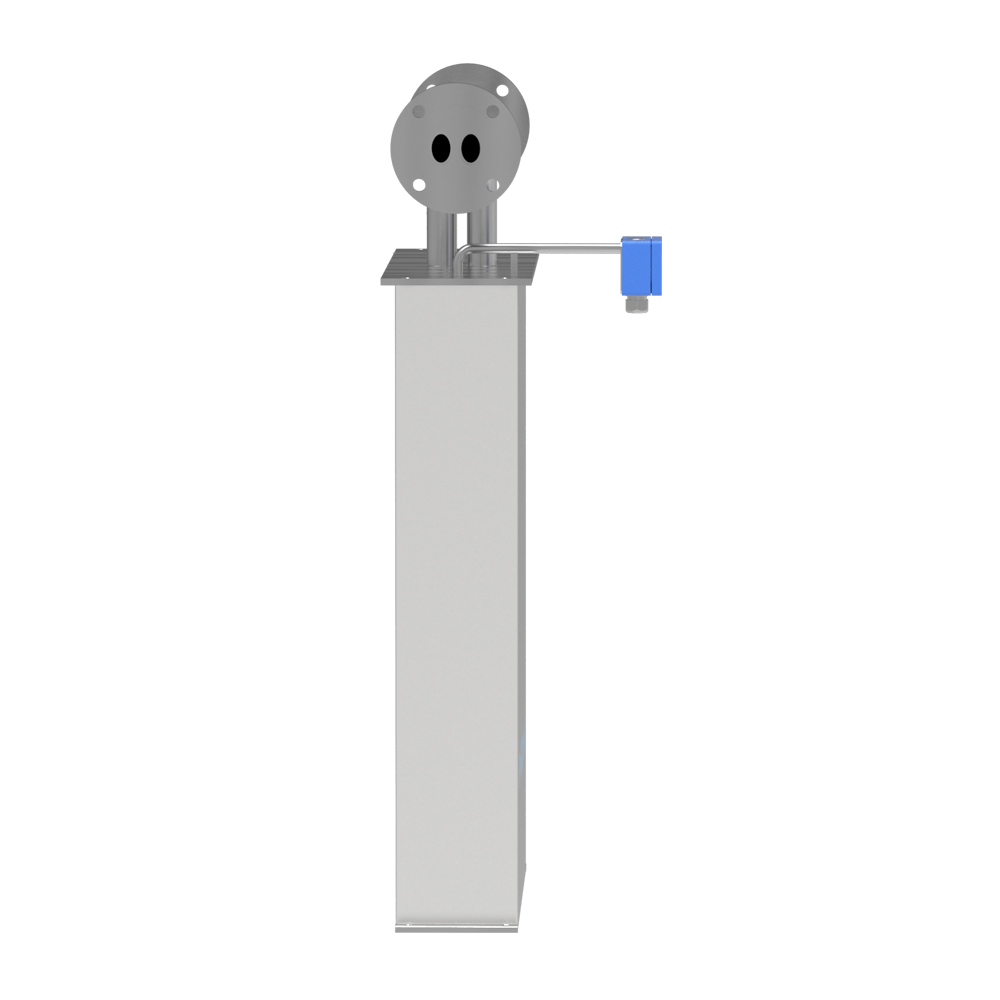

RHM 40 Medium Coriolis Mass Flow Meter < 1500 kg/min
Medium Coriolis mass flow meter for demanding duties, including high pressure and cryogenic fluids.
Part no.RHM 40
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
The maximum flow of each size is in the product name.
- Suitable for fiscal / custody transfer applications
- Available in all exotic materials
Specifications
- Range
- 20 kg/min up to 1500 kg/min
- Pressure
- up to 380 bar (5511 psi)
- Temperature
- -196°C (-321°F) up to +350°C (662°F)
- Accuracy
- 0.1 % of rate
- Materials
- SS 316L / SS 316Ti, Alloy C22 – 2.4602, Super Duplex – 1.4410
- Process Connection
- 2″ up to 3″
Coriolis Mass Flow Meters
RHE 26 Panel/DIN Rail Mount Coriolis Mass Flow Transmitter
Compact, low-cost Coriolis transmitter for rack, panel or DIN rail mounting indoors.
Details
Coriolis Mass Flow Meters
RHE 27 Panel Mount Coriolis Mass Flow Transmitter
Advanced-function Coriolis transmitter for rack or panel mounting indoors.
Details
Coriolis Mass Flow Meters
RHE 28 Universal Mount Coriolis Mass Flow Transmitter
Field-mount advanced-function Coriolis transmitter in a rugged epoxy-coated enclosure.
Details
Not Sure Which Instrument Fits?
Tell us what you need to measure and where. Our engineers match the instrument, supply it with a calibration certificate and help commission it on site.
