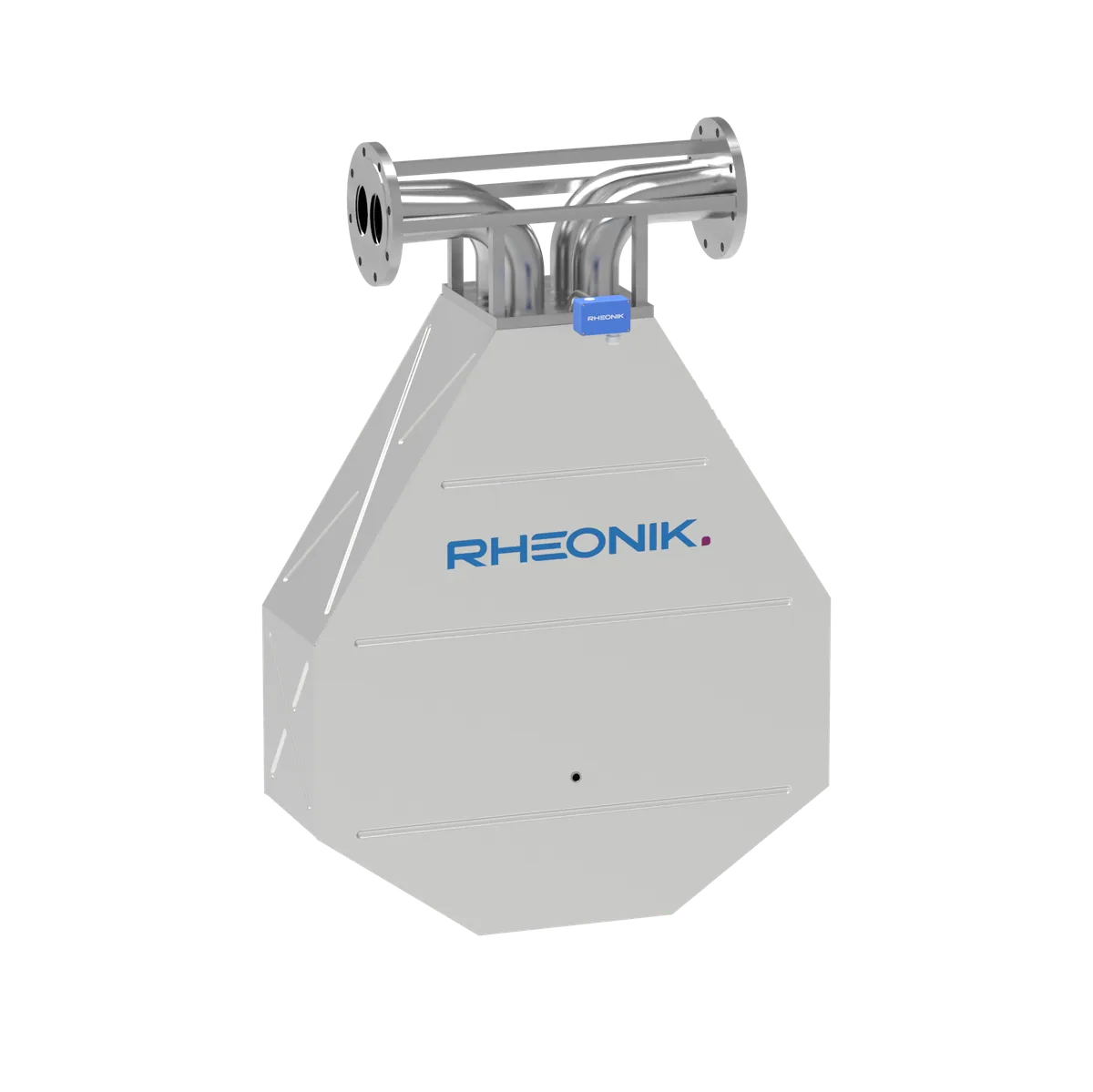

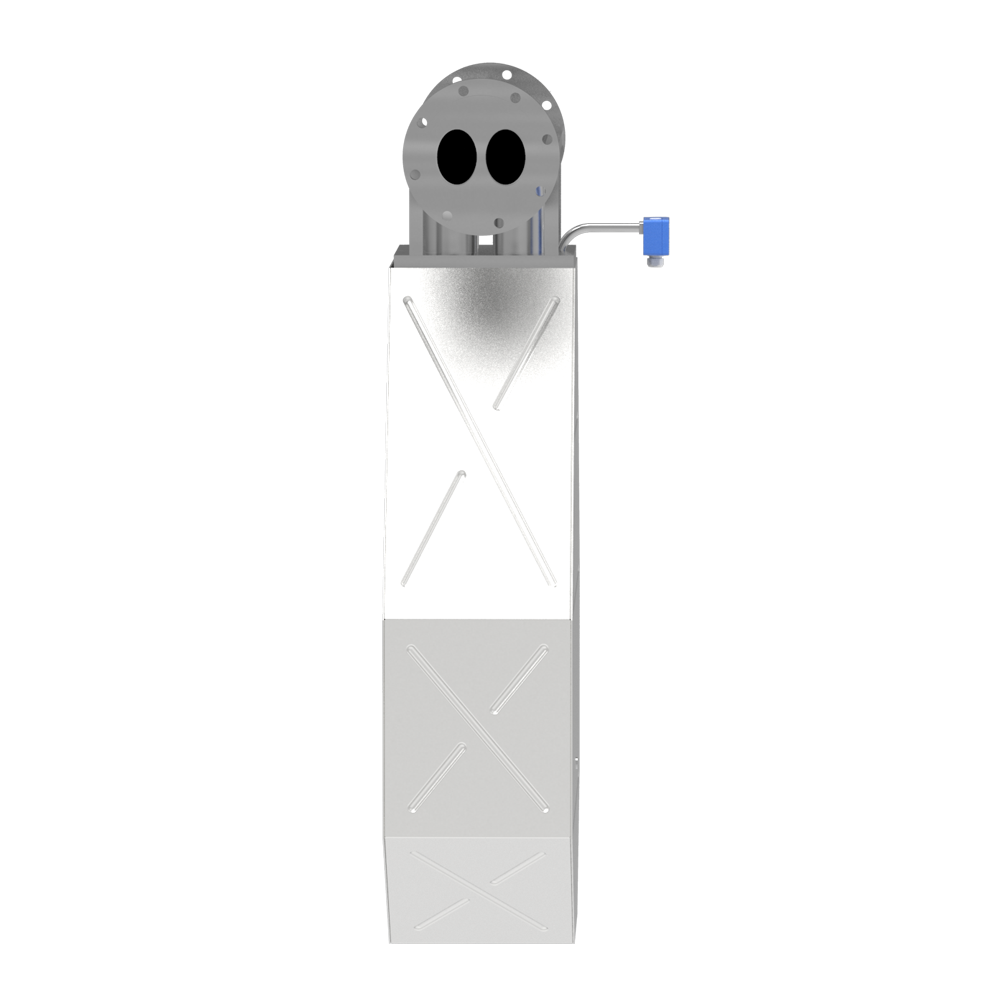

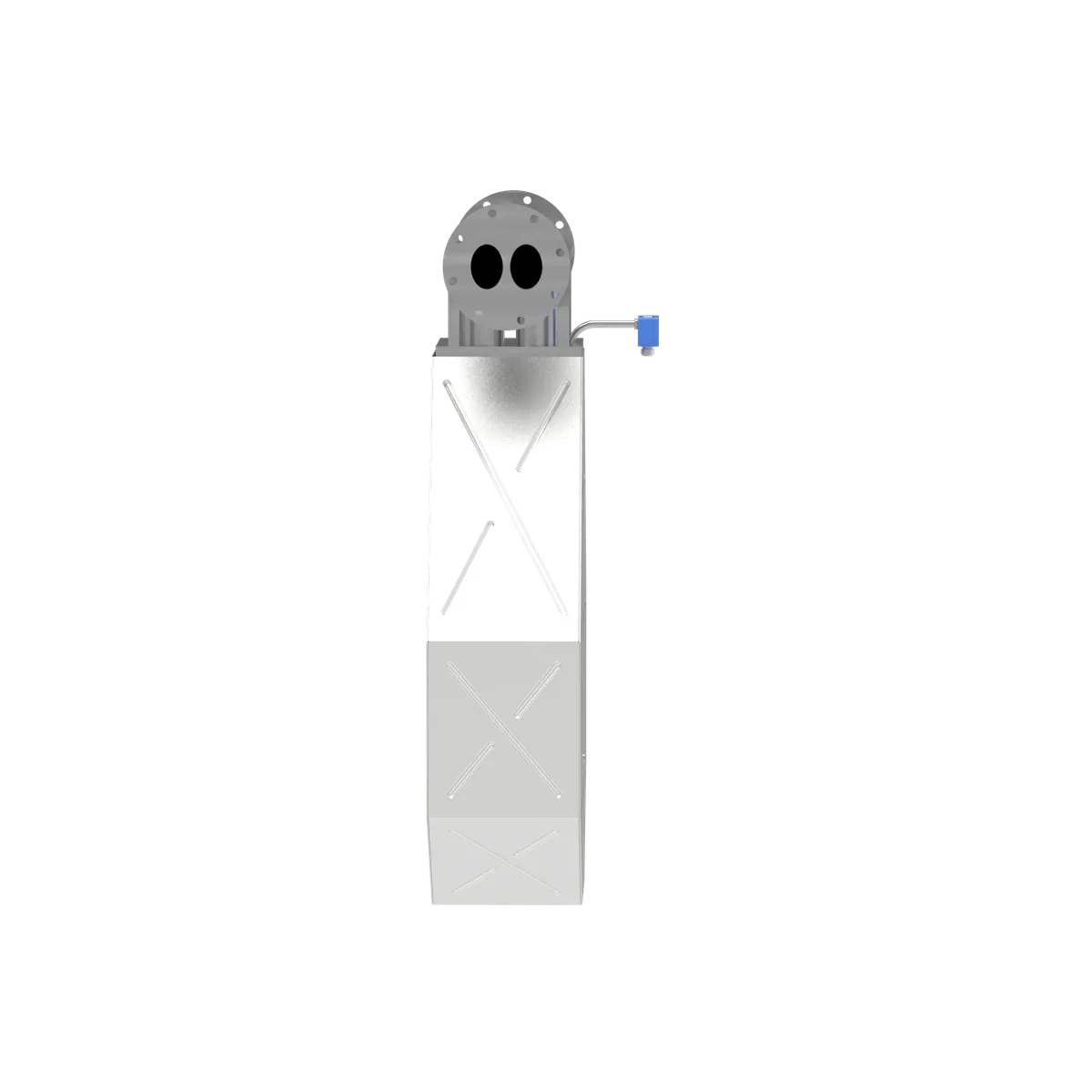

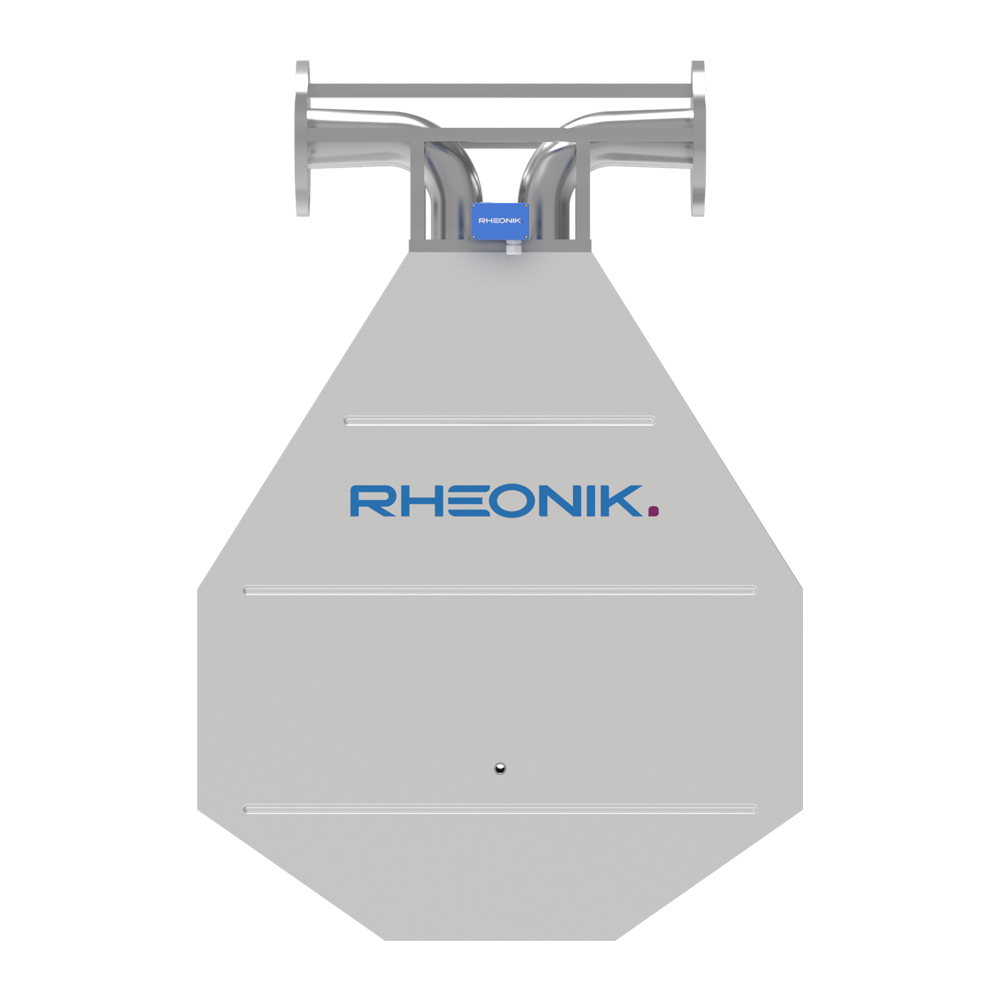

RHM 100 Large Coriolis Mass Flow Meter < 12000 kg/min
Large-bore Coriolis mass flow meter for high flow rates across many industries.
Part no.RHM 100
- Supplied and supported by GTi in Thailand
- Calibration certificate on delivery
- Selection, installation and commissioning help
Overview
The maximum flow of each size is in the product name.
- Suitable for fiscal / custody transfer applications
- Available in all exotic materials
Specifications
- Range
- 120 kg/min up to 12000 kg/min
- Pressure
- up to 83 bar (1203 psi)
- Temperature
- -196°C (-321°F) up to +210°C (410°F)
- Accuracy
- 0.1 % of rate
- Materials
- SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602
- Process Connection
- 8″ up to 8″
