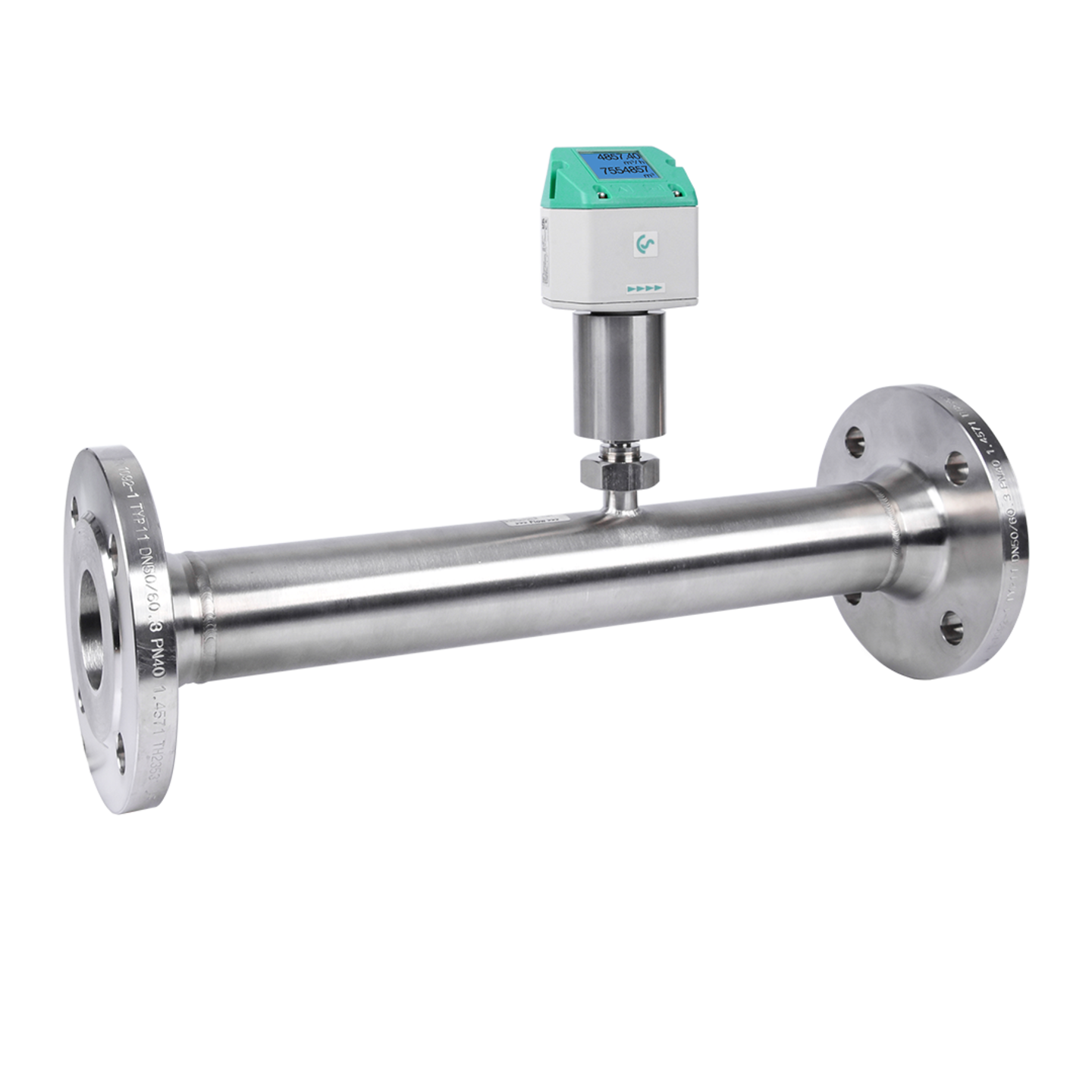

VD 550 – Robust flow sensor for wet compressed air / gases

Specifications

Velocity Domain:2 to 224 m/s or high-speed 600 m/s

Pressure Range:0.04 to 500 mbar differential

Environmental Protect:Resistant to moisture / wet drops

Design Advantage: Special mechanical protection shield keeps moisture droplets away from the primary sensing element.

VD 550 – Robust flow sensor for wet compressed air / gases

Measuring range 2 to 224 m/s / 600 m/s (compressed air / gases), 0.04 to 500 mbar differential pressure for gases.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Velocity Domain: 2 to 224 m/s or high-speed 600 m/s
Pressure Range: 0.04 to 500 mbar differential
Environmental Protect: Resistant to moisture / wet drops
