Specifications

Working Temperature:Up to +180 °C continuous

FAD Validation:Direct compressor output wet air

Pipe Scale:¾'' to 20'' pipe diameters

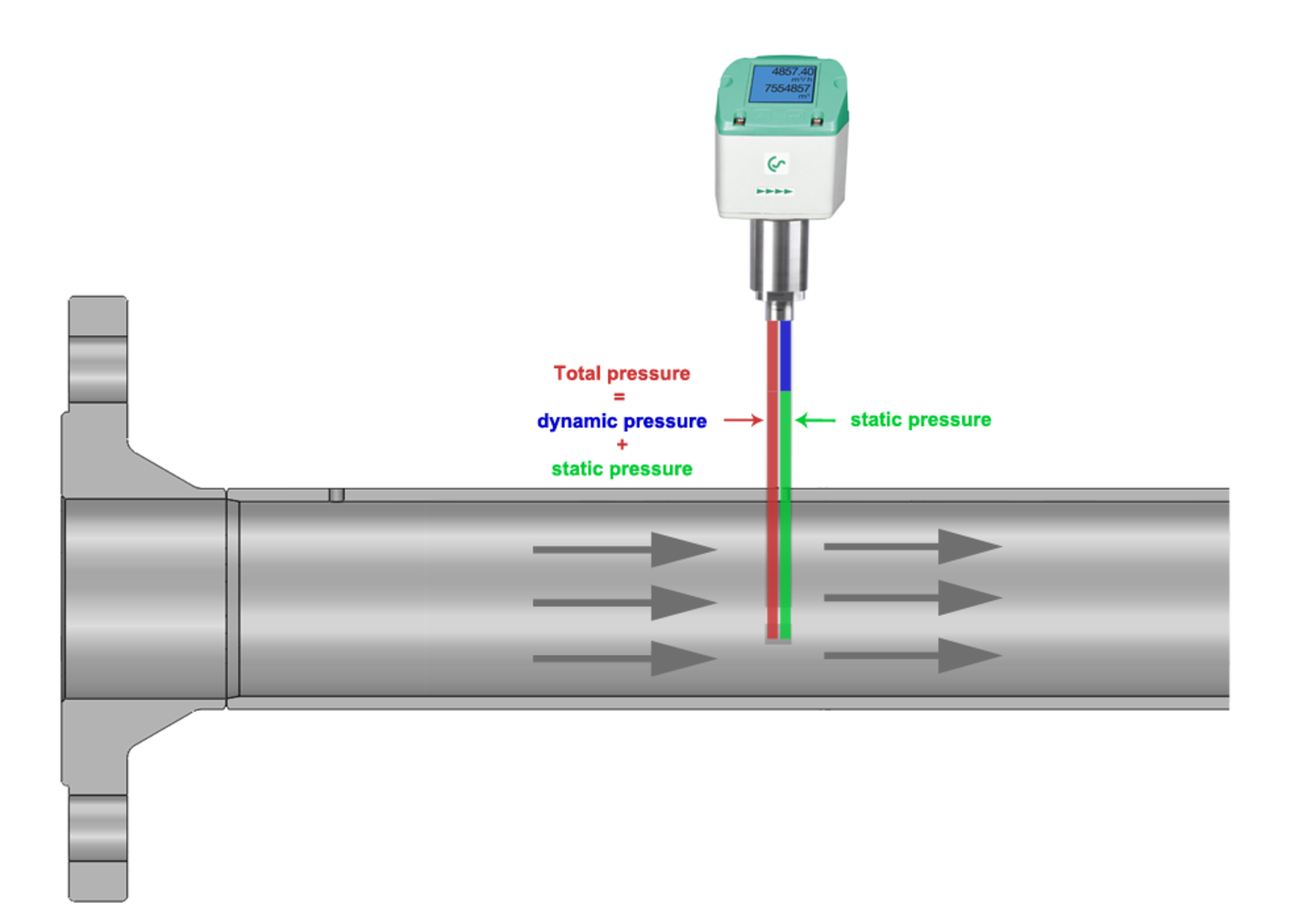

Design Advantage: Durable differential pressure principle allows wet air measurements without mechanical or thermal decay.

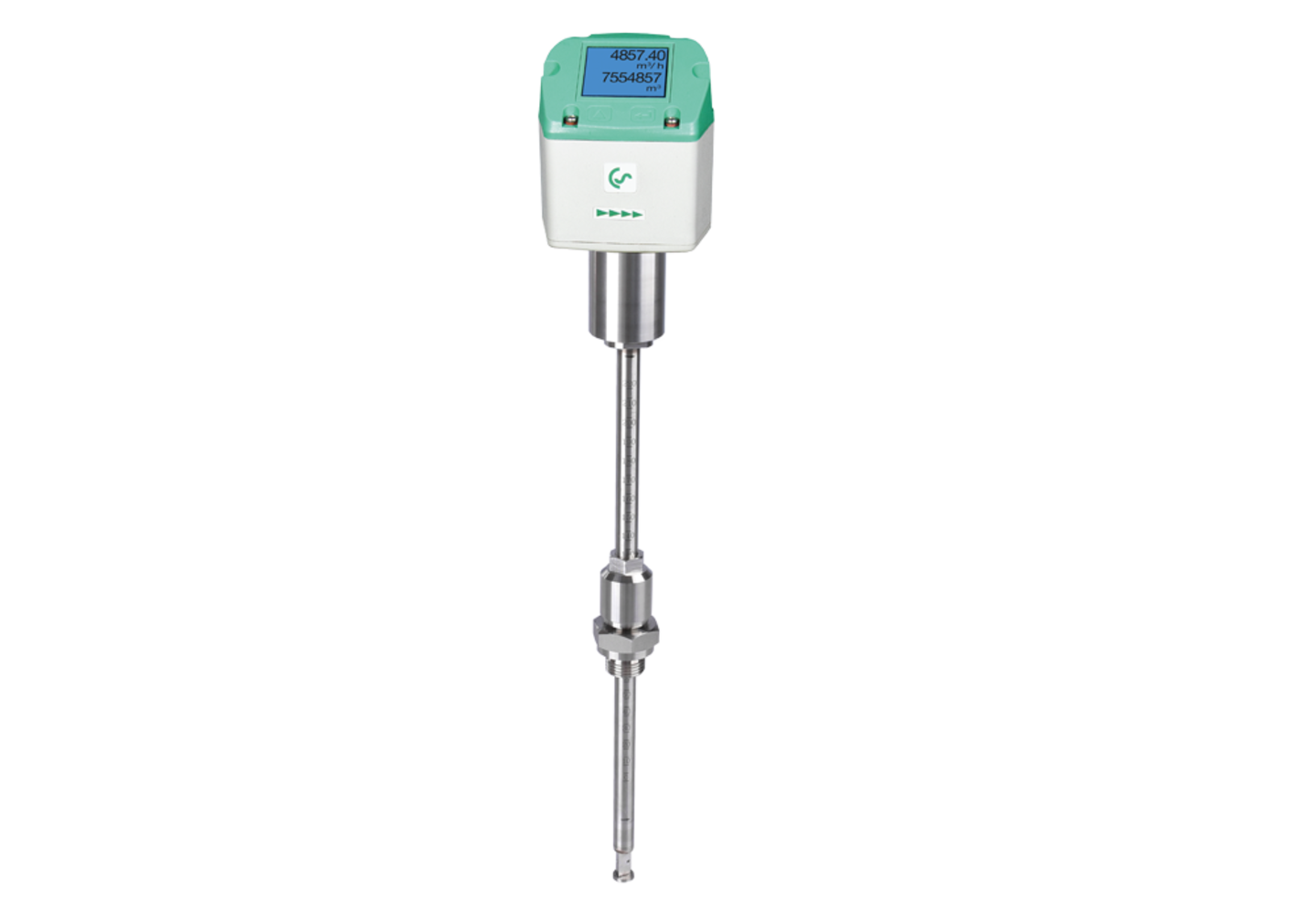

VD 500 – Flow meter for FAD measurement

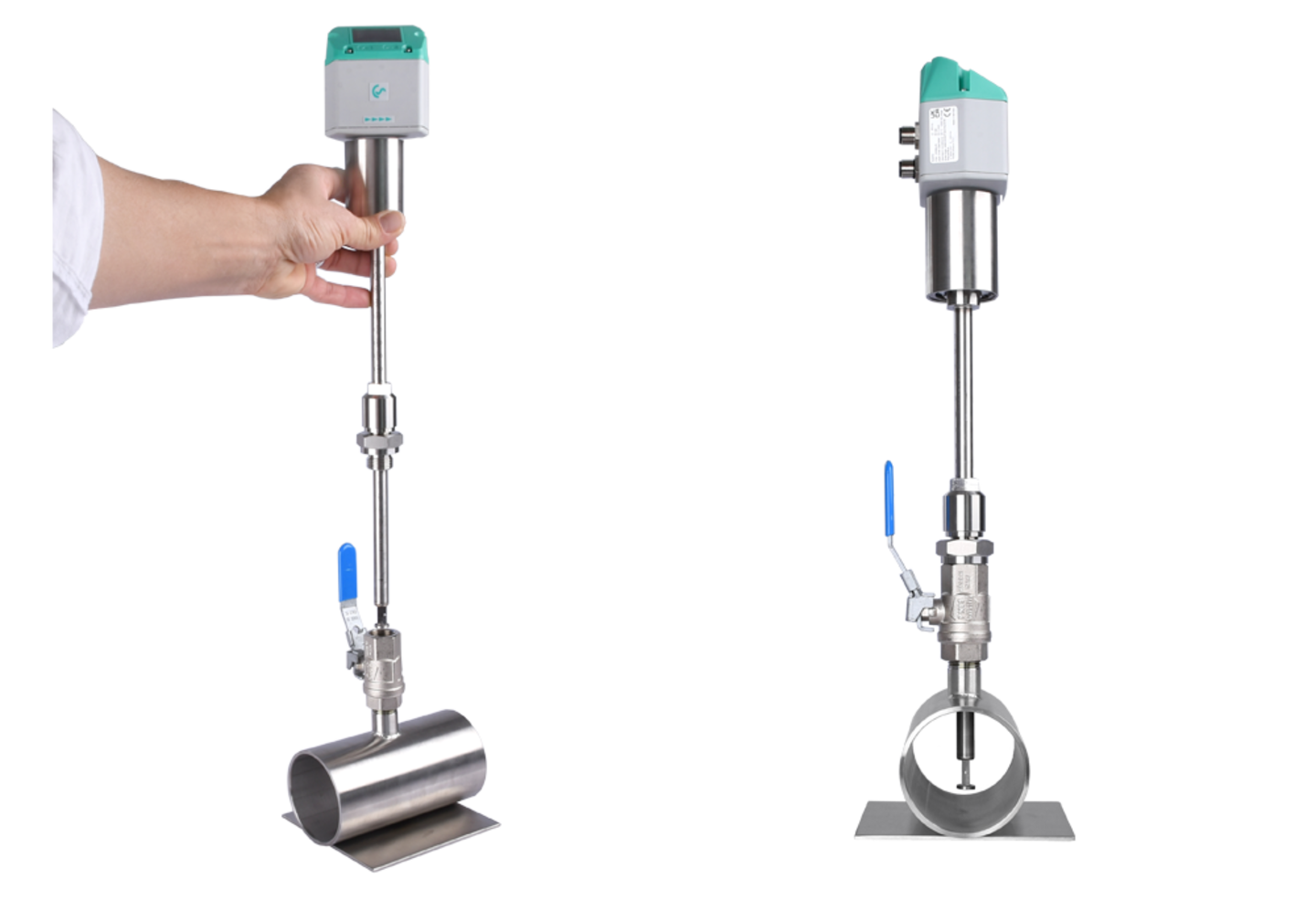

For measuring immediately downstream of the compressor in moist air up to +180 °C. For pipes from ¾'' to 20''.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Working Temperature: Up to +180 °C continuous
FAD Validation: Direct compressor output wet air
Pipe Scale: ¾'' to 20'' pipe diameters

CMM 500 – High-precision measuring of compressor capacity

The CMM 500 can be used directly downstream of the compressor for measuring in wet compressed air, or as a compressed air meter for billing in dry compressed air.

VA 500 – Flow meter for compressed air and gases

RS 485 interface, Modbus RTU, 4.

VA 520 – Thermal mass flow meter for flow measurement

For compressed air and gases.

VA 550 – Thermal mass flow sensor for flow measurement

Insertion sensor for demanding industrial applications, comes with ATEX + IECEx approval for Ex zones or DVGW approval for use in natural gas.
